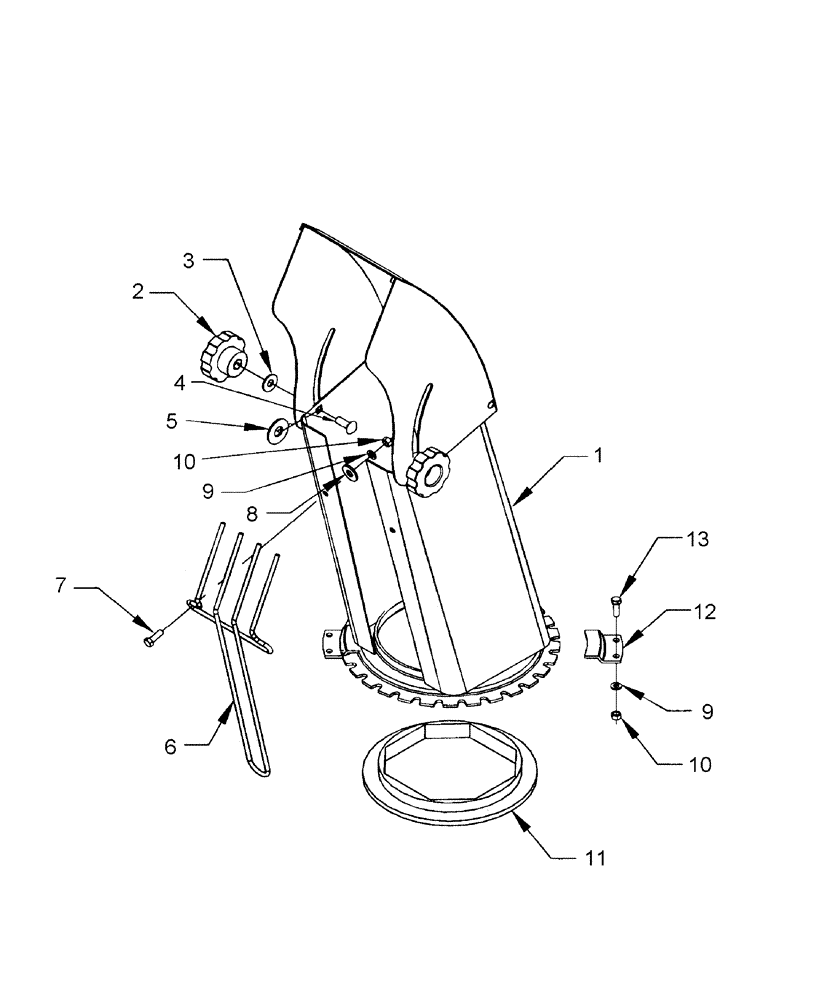

Запчасти Case IH BSX150 (102) - CHUTE WITH DEFLECTOR

1

BER661168

CHUTE ASSY.

1шт.

2

BER657309

KNOB

5/16"

2шт.

3

BER658467

WASHER

Nylon, 11/32"

2шт.

4

PL

PROCURE LOCALLY

Bolt, Carriage, 5/16" x 1" GR5

2шт.

5

BER658468

WASHER

Nylon, 7/16" UNC

2шт.

6

BER657308

GUARD

Hand

1шт.

7

PL

PROCURE LOCALLY

Bolt, Hex, 1/4" x 3/4" GR5

2шт.

8

PL

PROCURE LOCALLY

Washer, Flat, 5/16"

2шт.

9

PL

PROCURE LOCALLY

Washer, Lock, 1/4"

10шт.

10

PL

PROCURE LOCALLY

Nut, Hex, 1/4"

10шт.

11

BER657338

RING

Bushing

1шт.

12

BER657333

PLATE

Retaining

4шт.

13

PL

PROCURE LOCALLY

Bolt, Hex, 1/4" x 3/4" GR5

8шт.
