(108) - MID PTO DRIVE KIT - 715585006

Запчасти Case IH BSX150 (108) - MID PTO DRIVE KIT - 715585006

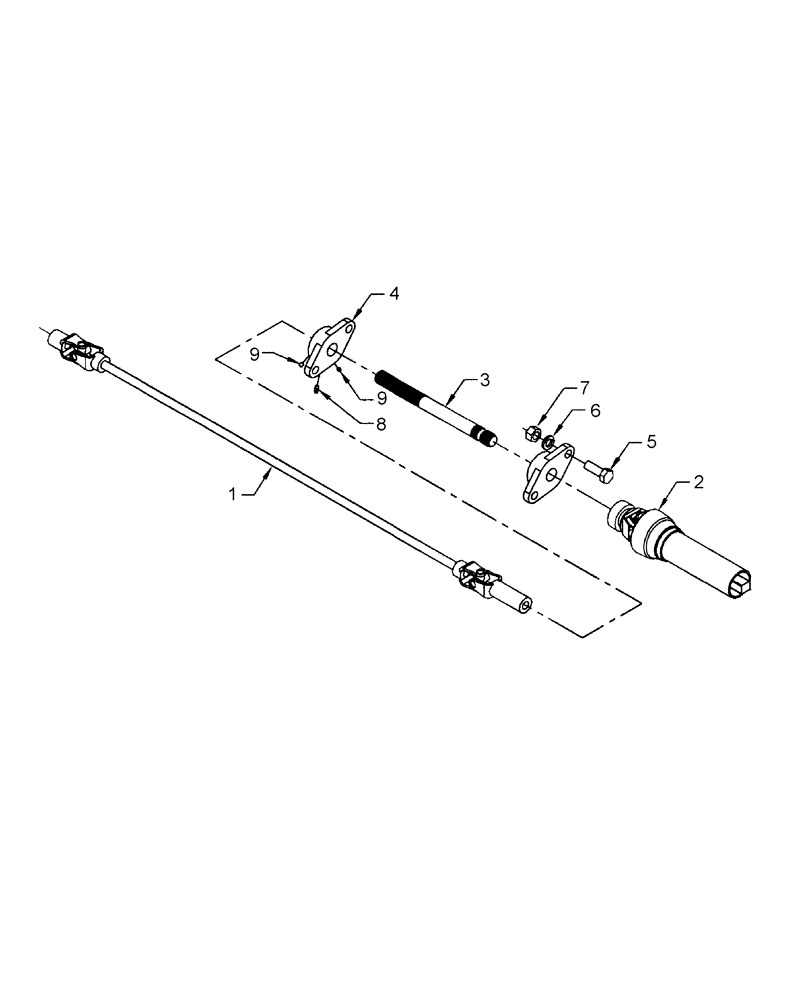

Схема запчастей Case IH BSX150 - (108) - MID PTO DRIVE KIT - 715585006
4
8
3
1
7
6
9
9
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BER4700003

DRIVE

Flange 1", Includes: Ref. 8 & 9

1шт.

2

BER661432

SHAFT

Half, Male, 2-5/16" Journal Cross

1шт.

3

BER665141

SHAFT

Output

1шт.

4

BER4300025

BALL BEARING

Fixed, 40 -1/4" -15 splines

1шт.

5

PL

PROCURE LOCALLY

Bolt, Hex, 5/8" x 1 3/4" GR5

4шт.

6

PL

PROCURE LOCALLY

Washer, Lock, 5/8"

4шт.

7

PL

PROCURE LOCALLY

Nut, Lock, 5/8"

4шт.

8

BER654106

FITTING

Grease, 1/4"

2шт.

9

PL

PROCURE LOCALLY

Setscrew, Allen, 1/4" NF x 1/4"

4шт.

0500003

1шт.
