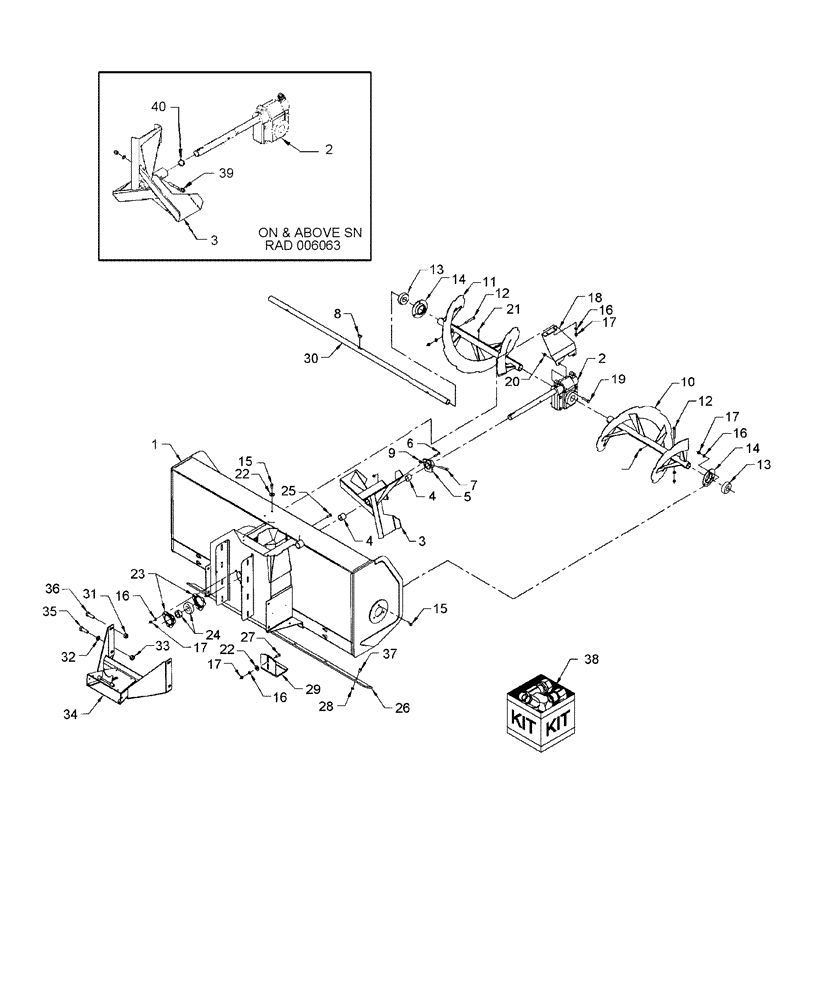

Запчасти Case IH BSX150 (100) - SNOWBLOWER - BSX150

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

BER663868

GEARBOX

Refer to Fig. 106 for Breakdown

1шт.

2

BER4500037

GEARBOX

Refer to Fig. 106 for Breakdown

1шт.

ON & ABOVE SN RAD006063

1шт.

3

CSE657491

FAN

1шт.

3

CSE667080

FAN

1шт.

ON & ABOVE SN RAD006063

1шт.

4

BER655901

BUSHING

2шт.

BELOW SN RAD006063

1шт.

5

CSE655874

PLATE

Shear

1шт.

BELOW SN RAD006063

1шт.

6

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Shear, 1/4" x 1-1/4", w/ Stover Nut

1шт.

BELOW SN RAD006063

1шт.

7

PL

PROCURE LOCALLY

Bolt, Hex, 5/16" x 2" GR8

1шт.

BELOW SN RAD006063

1шт.

8

280934

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

9

PL

PROCURE LOCALLY

Nut, lock, Nylon Insert, 5/16"

2шт.

10

CSE666737

AUGER

RH

2шт.

11

CSE666738

AUGER

LH

1шт.

12

BER657295

BOLT

Shear, 5/16" x 2 -1/4", Includes: Lockwasher & Nut

2шт.

13

BER665494

BEARING ASSY

w/ Locking Collar

2шт.

14

BER657334

FLANGE

2шт.

15

PL

PROCURE LOCALLY

Bolt, Hex, 5/16" x 3/4" GR5

8шт.

16

PL

PROCURE LOCALLY

Lockwasher, 5/16"

15шт.

17

PL

PROCURE LOCALLY

Nut, Hex, 5/16"

15шт.

18

CSE657492

SUPPORT

1шт.

19

PL

PROCURE LOCALLY

Bolt, Hex, 5/16" x 1 -1/4" GR5

2шт.

20

PL

PROCURE LOCALLY

Nut, lock, Nylon Insert 5/16"

2шт.

21

BER654106

FITTING

Grease

2шт.

22

PL

PROCURE LOCALLY

Flatwasher, 3/8"

6шт.

23

BER656589

FLANGE

2шт.

24

BER665495

BEARING

w/ Locking Collar

1шт.

25

BER0300002

CARRIAGE BOLT

5/16" x 3/4" GR5

3шт.

26

BER659862

CUTTING EDGE

50"

1шт.

27

BER0300003

CARRIAGE BOLT

5/16" x 1" GR5

4шт.

28

BER1100002

NUT

Stover, 5/16"

6шт.

29

BER663460

SHOE

Skid

2шт.

30

BER660390

SHAFT

Output

1шт.

31

BER0900035

NUT

Flange, Serrated, 3/8"

2шт.

32

PL

PROCURE LOCALLY

Lockwasher 1/2"

2шт.

33

PL

PROCURE LOCALLY

Flange Nut, Serrated, 1/2"

2шт.

0900046

1шт.

34

BER665056

HITCH

Quick, Female

1шт.

35

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1" GR5

2шт.

36

BER0200066

BOLT

Bolt, Serrated Flange, 3/8" x 3/4"

2шт.

37

BER0300002

CARRIAGE BOLT

5/16" NC x 3/4" GR5

6шт.

38

BER665775

SEAL KIT

1шт.

39

BER657295

BOLT

Shear, 5/16" NC x 2 1/4" Lockwasher & Nut

1шт.

ON & ABOVE SN RAD006063

1шт.

39

BER667786

SHEAR BOLT

Shear, 5/16" x 2 -1/4", Includes: Lockwasher & Nut

2шт.

Used With Driveline BER661432

1шт.

40

BER655087

RING

Snap - external

1шт.

ON & ABOVE SN RAD006063

1шт.
