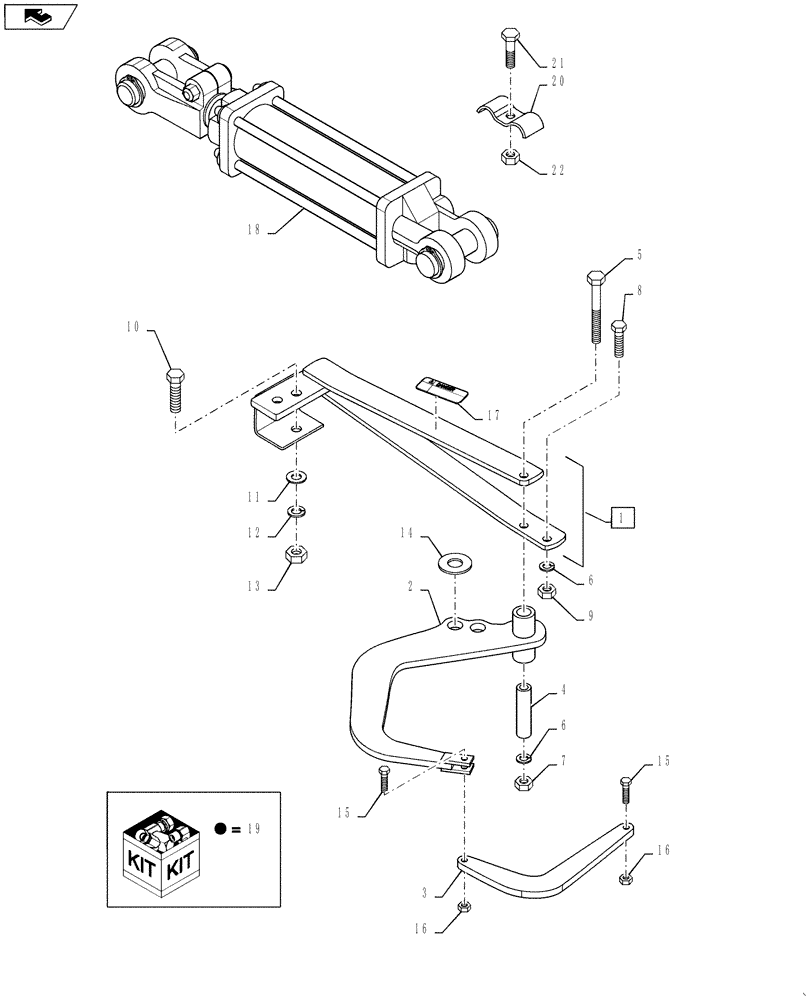

Запчасти Case IH BS184R (111) - HYDRAULIC CHUTE ROTATION - 715342046

1

BER664475

BRACKET

Includes: Ref. 17

1шт.

2

BER664473

CRANK

Bell

1шт.

3

BER664474

ARM

Push

1шт.

4

PL

PROCURE LOCALLY

Flat Washer 1" (1-1/16" hole)

1шт.

5

BER664477

SPACER

1шт.

6

BER664476

BUSHING

1шт.

7

PL

PROCURE LOCALLY

Bolt, Hex, 3/4" x 4", BS174R

1шт.

8

PL

PROCURE LOCALLY

Bolt, Hex 1/2" x 1-1/4"

1шт.

9

PL

PROCURE LOCALLY

Bolt, Hex 3/4" x 5", BS184R

1шт.

10

BER664578

SCREW

Shoulder, 1/2" x 1" Long

2шт.

11

PL

PROCURE LOCALLY

Nut, Hex 3/4"

1шт.

12

BER0900046

NUT

Serrated Flange 1/2"

1шт.

13

PL

PROCURE LOCALLY

Stover Nut, Hex 3/8"

2шт.

14

PL

PROCURE LOCALLY

Washer, Lock, 3/4"

1шт.

15

BER1400003

WASHER

Flat, 5/16" (3/8" hole)

2шт.

16

BER1400006

WASHER

Flat, 1/2" (9/16" hole)

3шт.

17

BER664548

DECAL

DANGER (Hydraulic Chute Rotation)

1шт.

18

BER3900022

HYDRAULIC CYLINDER

CYLINDER, 2 x 6 Incl pins

1шт.

19

BER3900205

SEAL KIT

Kit, Seal

1шт.

20

BER666583

HOSE CLAMP

1шт.

21

BER0100040

BOLT

Hex, 3/8" x 1-1/2"

1шт.

22

PL

PROCURE LOCALLY

Locknut, Nylon Insert 3/8"

1шт.
