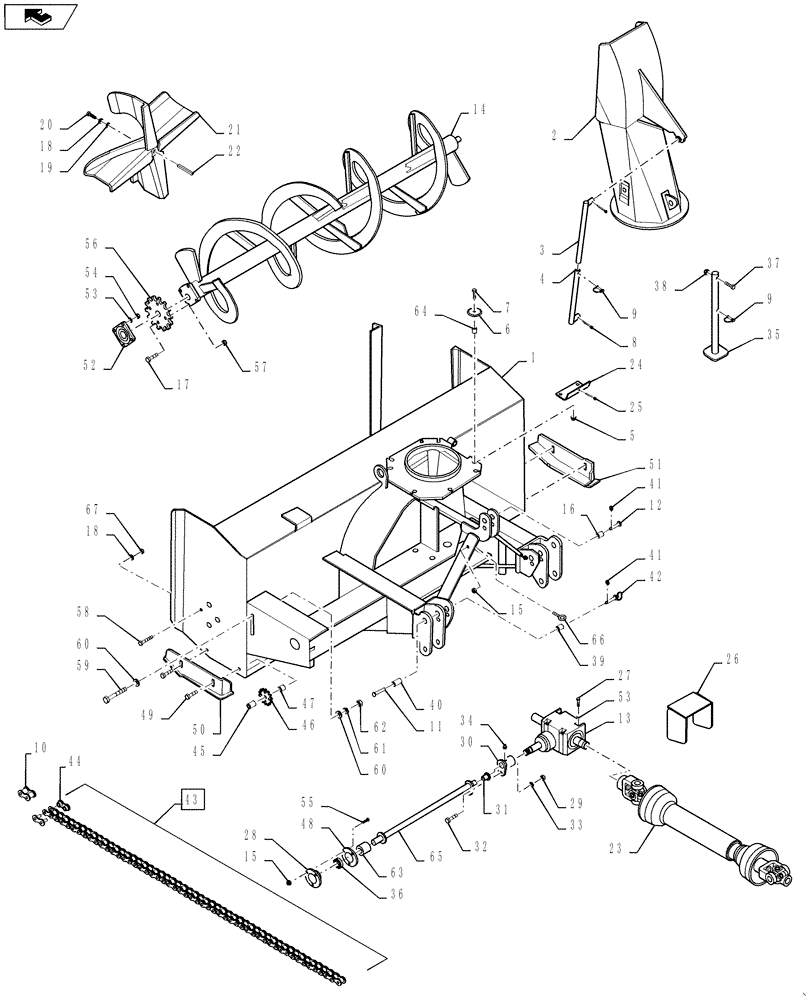

Запчасти Case IH BS184R (102.01) - 84" SNOWBLOWER - ON & ASN YAWR00001

1

NSS

NOT SOLD SEPARAT

Housing, 74"

1шт.

2

BER669267

CHUTE

CHUTE, Includes Adjustment Tube & Rod

1шт.

3

BER654074

ADJUSTMENT ROD

1шт.

4

BER654076

TUBE

1шт.

5

BER0900046

NUT

Serrated Flange Nut, 1/2"

12шт.

6

BER654197

PLATE

Retaining

4шт.

7

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -1/4" GR5

8шт.

8

PL

PROCURE LOCALLY

Cotter Pin, 1/4" x 2"

2шт.

9

BER1900006

PIN, SPLIT (COTTER)

PIN, COTTER 1/4" x 2"

2шт.

10

BER654025

LINK CHAIN

#60

1шт.

11

BER4600042

PIN

Hitch, 1-1/8" x 6-1/4" Cat. 2

2шт.

12

BER4600051

HITCH PIN

3/4" x 5-7/16" Cat. 1

1шт.

13

BER662195

GEARBOX

1шт.

14

BER666278

AUGER

1шт.

15

BER0900035

NUT

Serrated Flange, 3/8"

4шт.

16

BER668058

BUSHING

BUSHING, 1-1/4" x 1-7/8"

1шт.

17

PL

PROCURE LOCALLY

BOLT, HEX, 3/8" x 1-1/2" GR5

4шт.

18

BER1200007

WASHER

Washer, Lock, 5/8"

1шт.

19

BER1400008

WASHER

Washer, Flat, 11/16"

1шт.

20

PL

PROCURE LOCALLY

BOLT, HEX 5/8" x 2" GR5

1шт.

21

BER668967

FAN

1шт.

22

BER4500075

KEY

3/8" x 3/8" x 4"

1шт.

23

BER662194

DRIVE

Driveline

1шт.

24

BER668449

BRACKET

BRACKET, Driveline Shield

1шт.

25

BER1800004

COTTER PIN

3mm x 65mm

1шт.

26

BER668057

SHIELD

SHIELD, Driveline

1шт.

27

BER0100068

BOLT

Hex, 1/2" x 1" GR5

8шт.

28

BER4300015

FLANGE

Includes: Grease fitting

1шт.

29

PL

PROCURE LOCALLY

NUT, HEX 5/16"

1шт.

30

BER666257

PLATE

Shear

1шт.

31

BER4300056

BUSHING

Bushing

1шт.

32

BER665547

BOLT

Shear, Hex, 5/16" x 1 -3/4" GR5, Includes: Nut

1шт.

33

PL

PROCURE LOCALLY

LOCKWASHER, 5/16"

1шт.

34

BER654106

FITTING

Grease

1шт.

35

BER668091

AUGER FLIGHT

PARKING STAND

1шт.

36

PL

PROCURE LOCALLY

BEARING, 1-1/8" With Setscrew & Grease System

1шт.

37

PL

PROCURE LOCALLY

BOLT, HEX 5/16" x 1-3/4" GR5

1шт.

38

BER1000005

LOCK NUT

Nylon, 5/16"

1шт.

39

BER668059

BUSHING

BUSHING, 1.5 O.D. x 2-1/8""

2шт.

40

BER668553

BUSHING

BUSHING, 1-1/2" x 3-3/8"

2шт.

41

BER1900003

PIN

Linch, 7/16"

3шт.

42

BER4600043

PIN

Hitch, Cat. 1

2шт.

43

BER662447

CHAIN

#60 x 90 Links , Includes: Ref. 44

1шт.

44

BER654839

LINK CHAIN

#60

1шт.

47

BER668094

IDLER

SPACER RING, 1-3/4"

1шт.

49

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -1/2", GR5

4шт.

50

BER666287

SKID/SHOE

LH

1шт.

51

BER666288

SKID/SHOE

RH

1шт.

52

BER4300001

BEARING

Flange, 1 -1/4" dia. hole

2шт.

53

BER1200006

WASHER, LOCK

1/2"

16шт.

54

BER0900006

NUT

Nut, Hex, 1/2"

8шт.

55

BER0300007

BOLT

3/8" x 3/4"

3шт.

56

BER654167

DRIVING SPROCKET

#60A32

1шт.

57

BER1000006

LOCK NUT

NYLON INSERT NUT, 3/8" GR5

4шт.

58

BER0100070

BOLT

Hex, 1/2" x 1-1/2" GR5

8шт.

59

PL

PROCURE LOCALLY

BOLT, HEX 5/8" x 5" GR5

1шт.

60

BER1400008

WASHER

Flat, 5/8"

2шт.

45

BER668093

IDLER

SPACER, RING .656" I.D. x 1.760 X 1" Ext.

1шт.

61

BER1200007

WASHER

Lock, 5/8"

1шт.

46

BER3300022

SPROCKET

Sprocket, Idler

1шт.

62

BER0900007

NUT

Nut, Hex, 5/8"

1шт.

48

BER4300014

FLANGE

3 Holes with Grease Groove

1шт.

63

BER667015

SPACER

Spacer Ring 1 3/16" Long

1шт.

64

BER668549

SPACER

SPACER

4шт.

65

BER668046

DRIVE SHAFT

DRIVE SHAFT

1шт.

66

BER0400027

EYEBOLT

3/8" X 4"

1шт.

67

BER0900007

NUT

Hex, 5/8"

4шт.
