(300.04) - DRIVELINE - FEMALE HALF - BER659830

Запчасти Case IH BS174H (300.04) - DRIVELINE - FEMALE HALF - BER659830 (00) - COMPLETE MACHINE

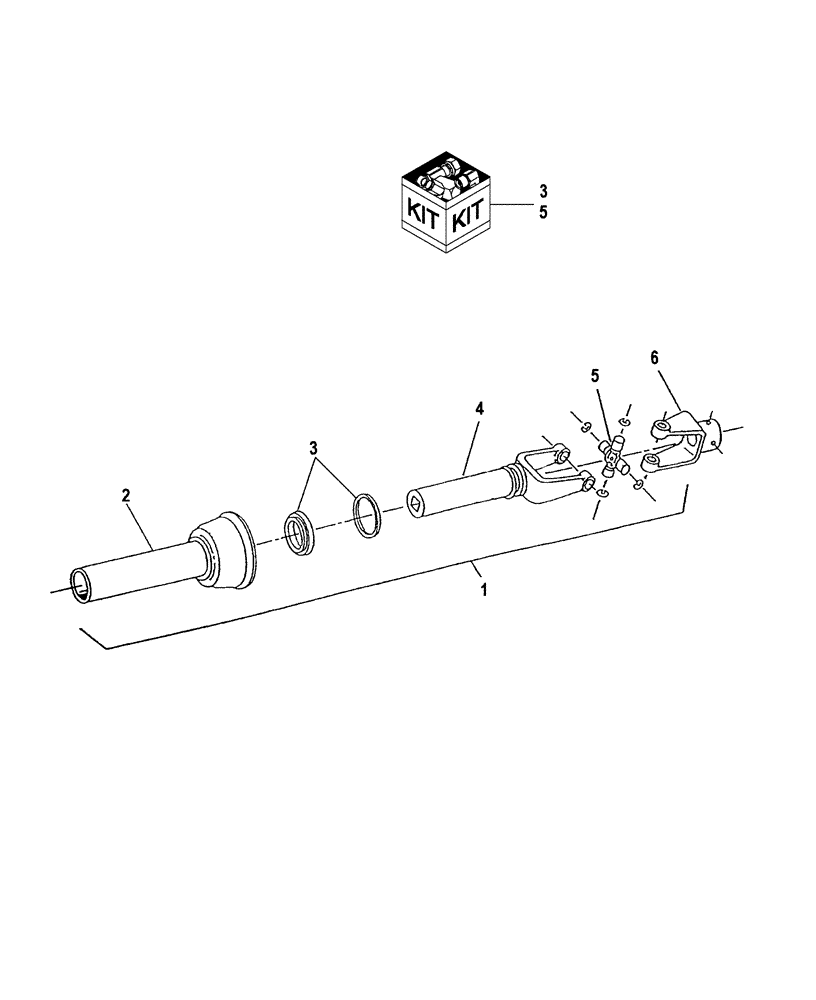

Схема запчастей Case IH BS174H - (300.04) - DRIVELINE - FEMALE HALF - BER659830 (00) - COMPLETE MACHINE
1
5
3
3
2
4
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BER659830

PTO

Driveline, Female Half

1шт.

2

BER658511

SHIELD

Inner

1шт.

3

BER661555

REPAIR KIT

Nylon

1шт.

4

BER658508

PTO SHAFT

Yoke, Female

1шт.

5

BER654478

REPAIR KIT

Universal Joint

1шт.

6

BER660149

YOKE

1 -1/8" Dia. Hole

1шт.
