(39.100.110) - VAR - 439145006 - SUBFRAME MOUNTING PARTS

Запчасти Case IH BS174H (39.100.110) - VAR - 439145006 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING

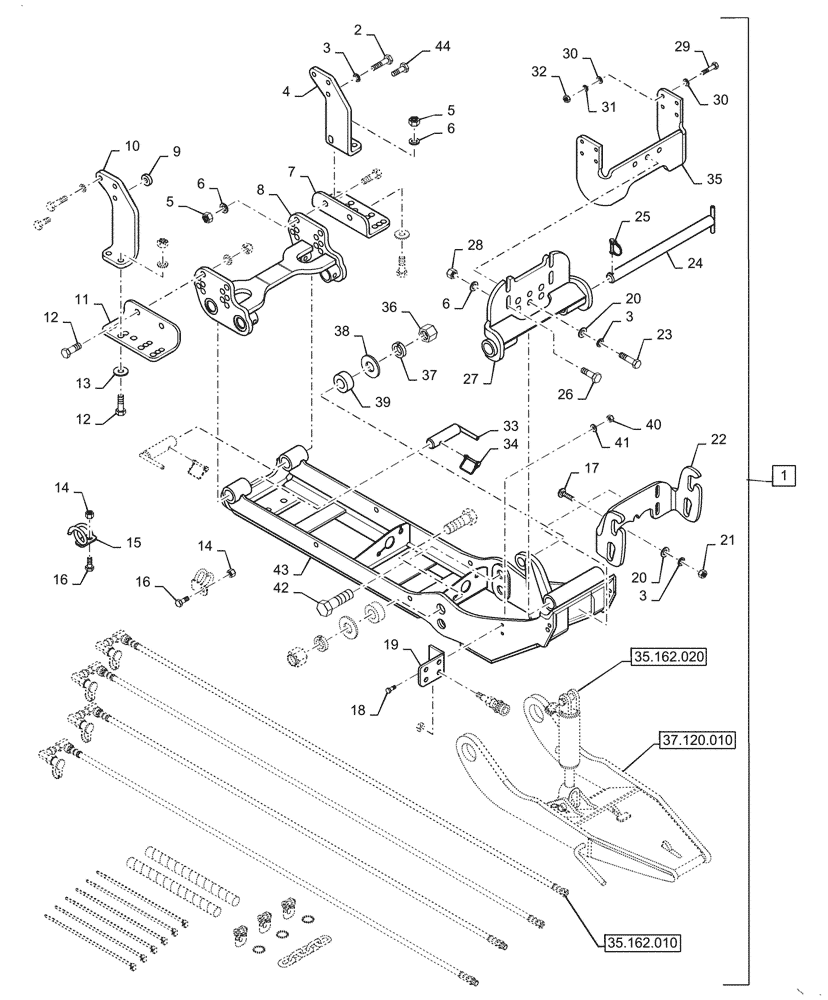

Схема запчастей Case IH BS174H - (39.100.110) - VAR - 439145006 - SUBFRAME MOUNTING PARTS (39) - FRAMES AND BALLASTING
35.162.020
14
35
3
14
15
21
11
41
36
7
16
29
12
6
4
23
28
5
30
5
44
10
20
3
39
18
43
37
3
17
33
22
3
27
19
30
16
32
2
13
9
42
38
20
34
25
1
31
6
8
40
26
24
12
6
37.120.010
35.162.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 44, Order Through Wholegoods 439145006

1шт.

2

BER0200141

BOLT

M14 x 2 x 60mm L

6шт.

3

BER1200014

WASHER

14mm ID

12шт.

4

BER671443

LH

SUPPORT

1шт.

5

BER1000012

LOCK NUT

5/8"

8шт.

6

BER1200007

WASHER

5/8" ID, Lock

11шт.

7

BER671441

LH, Rear Bracket

PLATE

1шт.

8

BER671440

Center

SUPPORT

1шт.

9

BER670680

Ring

SPACER

1шт.

10

BER671444

RH

SUPPORT

1шт.

11

BER671442

RH, Rear Bracket

PLATE

1шт.

12

BER0100095

5/8" x 2" L, Gr 5

BOLT

8шт.

13

BER1400008

WASHER

5/8" ID

4шт.

14

BER1000011

LOCK NUT

1/2"

3шт.

15

BER670319

SUPPORT

Hose

3шт.

16

BER0100069

BOLT

1/2" x 1-1/4" L, Gr 5

3шт.

17

BER0300025

CARRIAGE BOLT

1/2" x 1-3/4" L

2шт.

18

BER0100019

BOLT

5/16" x 1" L, Gr 5

2шт.

19

BER671170

SUPPORT

Hydraulic Connector

1шт.

20

BER1400024

WASHER

14mm ID

6шт.

21

BER0900006

NUT

1/2"

2шт.

22

BER671152

SUPPORT

Grille Guard

1шт.

23

BER0200043

BOLT

M14 x 1.5 x 60mm L

4шт.

24

BER670678

PIN

1-3/16" OD x 16-7/8" L

1шт.

25

BER1900006

PIN, SPLIT (COTTER)

1/4" OD x 1-3/4" L

1шт.

26

BER0100183

BOLT

5/8" x 2" L, Gr 8

3шт.

27

BER671439

Front

SUPPORT

1шт.

28

BER0900007

NUT

5/8"

3шт.

29

BER0200020

BOLT

M10 x 1.5 x 50mm L

8шт.

30

BER1400019

WASHER

10mm ID, Flat

16шт.

31

BER1200018

WASHER

10mm ID, Lock

8шт.

32

BER0900023

NUT

M10 x 1.5

8шт.

33

BER671445

1-3/16" OD x 4-5/8" L

PIN

2шт.

34

BER1900008

PIN

3/8" OD x 2-1/2" L

2шт.

35

BER671151

REINFORCEMENT

Bumper

1шт.

36

BER1000023

NUT

1-1/8"- 7

2шт.

37

BER1200023

WASHER

1-1/8" ID, Lock

2шт.

38

BER1400014

WASHER

1-1/8" ID, Flat

2шт.

39

BER669635

BUSHING

2-1/4" OD x 1-9/64" ID

2шт.

40

BER0900002

NUT

5/16"

2шт.

41

BER1200003

LOCK WASHER

5/16" ID

2шт.

42

BER0100222

BOLT

1-1/8" x 4" L, Gr 5

2шт.

43

BER670673

FRAME

Subframe

1шт.

44

BER0200080

BOLT

M14 x 2 x 40mm L

6шт.
