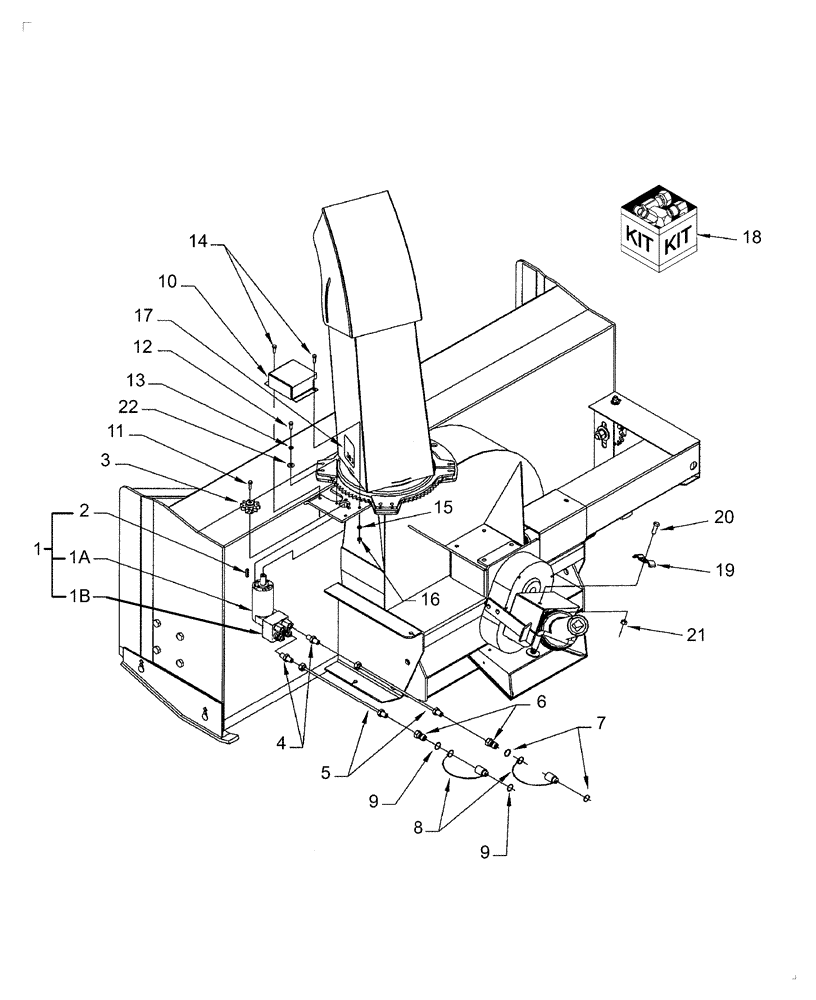

Запчасти Case IH BS172H (218) - HYDRAULIC CHUTE ROTATION - 717172016

1

BER3910017

HYDRAULIC MOTOR

Hydraulic Motor Assembly with Cross Over Relief Valve

1шт.

1a

BER3900087

HYDRAULIC MOTOR

M+S

1шт.

1a

BER3900417

HYDRAULIC MOTOR

Saure Danfoss

1шт.

1a

BER3910014

HYDRAULIC MOTOR

Eagle

1шт.

1b

BER3910018

VALVE PRESSURE RELIE

Cross Over

1шт.

2

BER665441

KEY

1шт.

3

BER665969

GEAR

1шт.

4

BER665971

RESTRICTOR VALVE

0.047"

2шт.

4

BER665690

RESTRICTOR

0.063", Used with 3910017. Must be used at the entry of motors with cushion valve.

2шт.

5

NSS

NOT SOLD SEPARAT

Hose, 1/4" x 103" 3/8" NPT RM x 9/16 JIC PVF

2шт.

6

BER658118

QUICK MALE COUPLING

2шт.

7

BER658206

RING

Identification, Yellow

2шт.

8

BER658397

DUST CAP

2шт.

8

BER658203

DUST CAP

Used with Ref 1, 3910017

2шт.

9

BER658209

RING

Identification, Green

2шт.

10

BER665765

COVER

Gear

1шт.

10

BER665970

GUARD

Gear

1шт.

11

BER0200103

BOLT

Serrated Flange, M6 x 1 x 10mm GR8

1шт.

12

PL

PROCURE LOCALLY

Bolt, Hex, M6 x 1 x 16mm GR8

3шт.

0200096

1шт.

13

BER1200013

WASHER

Lock, 6mm

3шт.

14

PL

PROCURE LOCALLY

Bolt, Hex 1/4" x 3/4" GR5

2шт.

15

PL

PROCURE LOCALLY

Washer, Lock, 1/4"

2шт.

16

PL

PROCURE LOCALLY

Nut, Hex, 1/4"

2шт.

17

BER2500329

DECAL

DANGER, Rotating Gears

1шт.

17

BER2500330

DECAL

DANGER, Rotating Gears (Bilingual)

1шт.

18

BER3900088

SEAL KIT

M+S

1шт.

18

BER3900418

SEAL KIT

Saure Danfoss

1шт.

18

BER3910015

SEAL KIT

Eagle

1шт.

19

BER666583

HOSE CLAMP

2шт.

20

PL

PROCURE LOCALLY

Bolt, Hex 3/8" NC x 1" GR 5

1шт.

20

PL

PROCURE LOCALLY

Bolt, Hex 2/7" NC x 1-1/2" GR 5

1шт.

21

PL

PROCURE LOCALLY

Nylon Insert Nut 3/8"

1шт.

22

PL

PROCURE LOCALLY

Flat Washer 1/4"

3шт.
