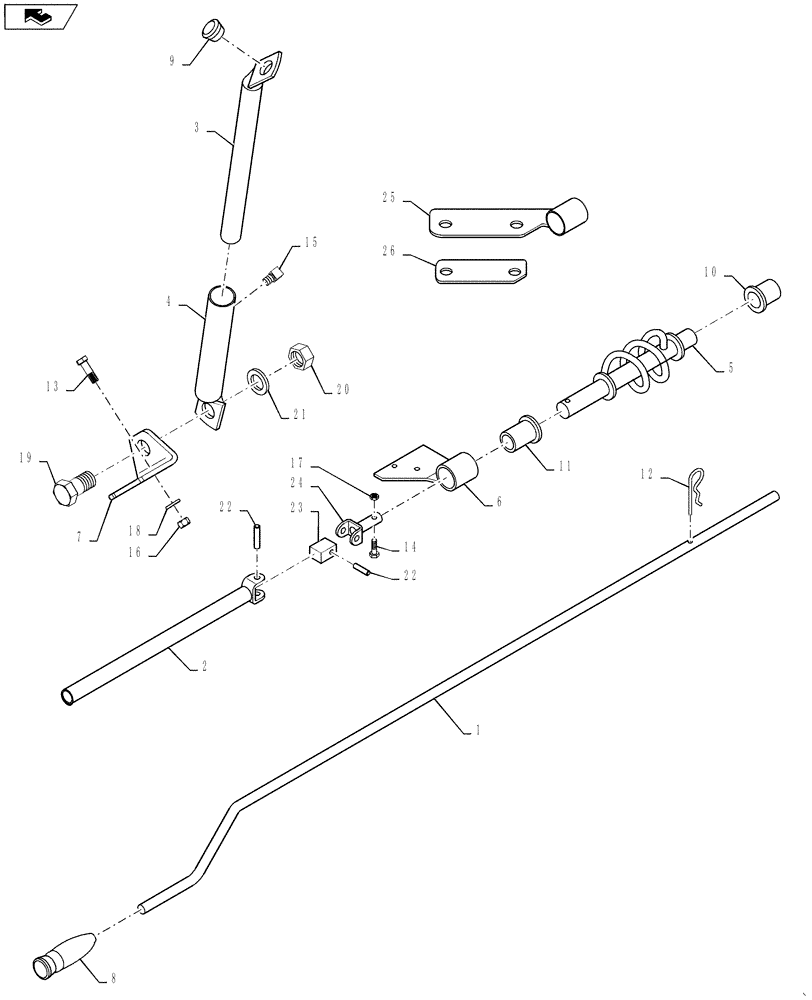

Запчасти Case IH BS164R (115) - MANUAL CHUTE ROTATION - 715343046

1

BER664902

HANDLE

1шт.

2

BER660188

TUBE

Rotation

1шт.

3

BER660187

BRACKET

Handle Support

1шт.

4

BER660269

TUBE

Handle Bracket

1шт.

5

BER659161

SPARE PART

Rotation Worm

1шт.

6

BER659145

BRACKET

Worm Support 64CSR

1шт.

7

BER660388

SUPPORT

1шт.

8

BER656797

HANDLE GRIP

1шт.

9

BER657390

GROMMET

Plastic

1шт.

10

BER657335

DRIVE BUSHING

1-5/16"

1шт.

11

BER657336

BUSHING

1-11/16"

1шт.

12

BER1800002

PIN

4mm x 80mm

1шт.

13

PL

PROCURE LOCALLY

Bolt, Hex 3/8" x 1-1/4"

2шт.

14

BER0800009

BOLT

10-24 x 1"

1шт.

15

PL

PROCURE LOCALLY

SETSCREW, Square Head 3/8" x 1/2"

1шт.

16

BER0900003

NUT

Hex, 3/8"

2шт.

17

BER1000002

NUT

Nylon Insert, 10-24

1шт.

18

BER1200004

LOCK WASHER

3/8"

2шт.

19

PL

PROCURE LOCALLY

Bolt, Hex 3/4" x 1-1/2"

1шт.

20

PL

PROCURE LOCALLY

Nut, Hex 3/4"

1шт.

21

PL

PROCURE LOCALLY

Lockwasher 3/4"

1шт.

22

PL

PROCURE LOCALLY

Spring Pin 1/4" x 1-1/4"

2шт.

23

BER658193

BLOCK

Universal

1шт.

24

BER659595

YOKE

Rotation

1шт.

25

BER668477

BRACKET

BRACKET, Worm Support 74CSR, 84CSR

1шт.

26

BER668092

SPACER

SPACER, 2" x 4.5"

1шт.
