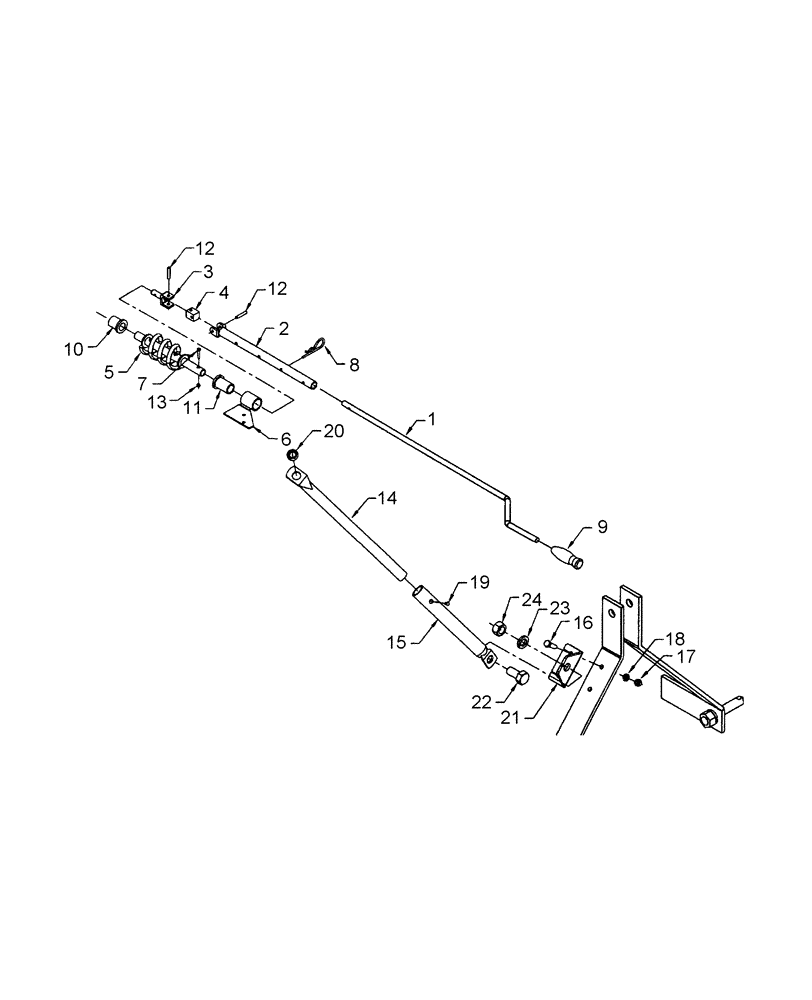

Запчасти Case IH BS164R (112) - MANUAL CHUTE ROTATION - 715343006

1

BER658252

HANDLE

1шт.

2

BER660188

TUBE

Rotation

1шт.

3

BER660187

BRACKET

Yoke, Rotation

1шт.

4

BER660269

TUBE

Block, Universal

1шт.

5

BER659161

SPARE PART

Worm, Rotation, CCW

1шт.

6

BER659145

BRACKET

Worm Support

1шт.

7

BER660388

SUPPORT

1шт.

8

BER656797

HANDLE GRIP

1шт.

9

BER657390

GROMMET

Plastic

1шт.

10

BER657335

DRIVE BUSHING

Plastic, 1-5/16" Lg.

1шт.

11

BER657336

BUSHING

Plastic, 1-11/16" Lg.

1шт.

12

BER1800002

PIN

Hair, 4mm x 80mm

1шт.

13

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

14

BER0800009

BOLT

Cap, Allen Hd., 10-24 x 1"

1шт.

15

PL

PROCURE LOCALLY

Setscrew, Sq Hd, 3/8" x 1/2"

1шт.

0600006

1шт.

16

PL

PROCURE LOCALLY

Nut, Hex 3/8"

2шт.

17

BER1000002

NUT

Lock, Nylon, 10-24

1шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

19

PL

PROCURE LOCALLY

Bolt, Hex, 3/4" x 1 -1/2"

1шт.

20

PL

PROCURE LOCALLY

Nut, Hex, 3/4"

1шт.

21

PL

PROCURE LOCALLY

Washer, Lock, 3/4"

1шт.

22

PL

PROCURE LOCALLY

Pin, Roll, 1/4" x 1 -1/4" lg

1шт.

23

BER658193

BLOCK

BLOCK, Universal

1шт.

24

BER659595

YOKE

1шт.
