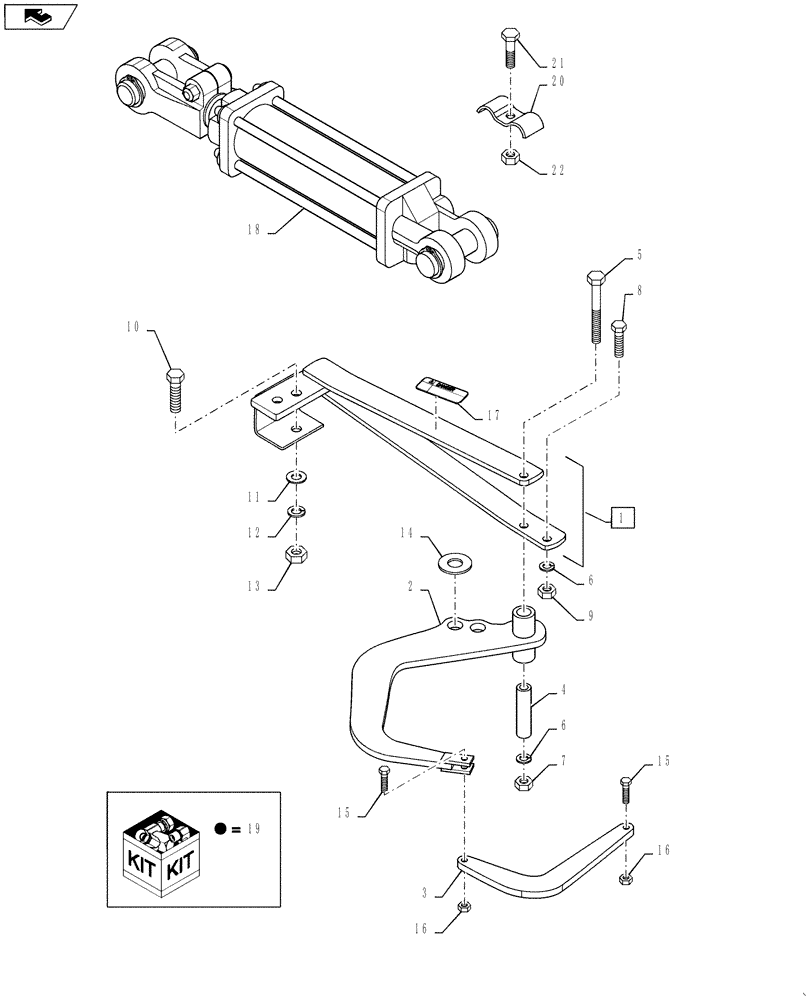

Запчасти Case IH BS164R (108) - HYDRAULIC CHUTE ROTATION - 715342036

1

BER668541

BELLCRANK

Rotation

1шт.

2

BER667703

BELLCRANK

Bell

1шт.

3

BER667704

ARM

Push

1шт.

4

BER667706

BUSHING

PIV0T BUSHING

1шт.

5

PL

PROCURE LOCALLY

Bolt, Hex, 5/8" x 5-1/2"

1шт.

6

PL

PROCURE LOCALLY

Washer, Lock, 5/8"

2шт.

7

PL

PROCURE LOCALLY

Stover Nut, Hex 5/8"

1шт.

8

PL

PROCURE LOCALLY

Bolt, Hex 5/8" x 1-1/2"

1шт.

9

PL

PROCURE LOCALLY

Nut, Hex, 5/8"

1шт.

10

PL

PROCURE LOCALLY

Bolt, Hex 1/2" x 1-3/4"

1шт.

11

PL

PROCURE LOCALLY

Flat Washer 1/2" (9/16" hole)

1шт.

12

PL

PROCURE LOCALLY

Lockwasher 1/2"

1шт.

13

PL

PROCURE LOCALLY

Nut Hex 1/2"

1шт.

14

PL

PROCURE LOCALLY

Flat Washer 1" (1-1/16" hole)

1шт.

15

PL

PROCURE LOCALLY

Bolt, Hex 3/8" x 1-1/4"

2шт.

16

PL

PROCURE LOCALLY

Stover Nut, Hex 3/8"

2шт.

17

BER664548

DECAL

DANGER - (Hydraulic Rotation)

1шт.

18

BER3900002

CYLINDER

CYLINDER 2" X 6"

1шт.

19

BER3900205

SEAL KIT

KIT, Seals

1шт.

20

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 1-1/2"

1шт.

21

PL

PROCURE LOCALLY

Locknut, Nylon Insert 3/8"

1шт.
