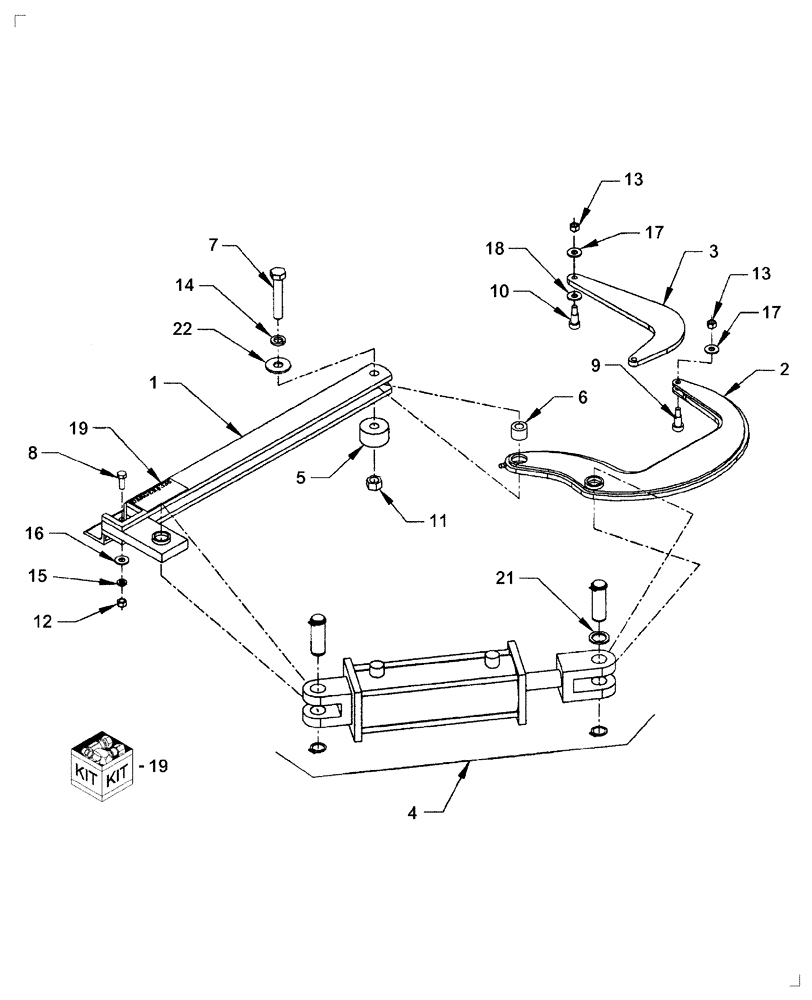

Запчасти Case IH BS164R (107) - HYDRAULIC CHUTE ROTATION - 715342006

1

BER664450

BRACKET

Cylinder, Includes: Ref. 20

1шт.

2

BER664451

CRANK

Bell

1шт.

3

BER664452

ARM

Push

1шт.

4

BER654129

CYLINDER,Double Acting, 203.2mm Stroke

CYLINDER, 3" x 8"

1шт.

5

BER664429

SPACER

1шт.

6

BER664428

BUSHING

1шт.

7

PL

PROCURE LOCALLY

Bolt, Hex, 5/8" x 3 -3/4"

1шт.

8

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 1"

1шт.

9

BER664576

SCREW

Shoulder, 3/8" x 3/4" x 5/16"

1шт.

10

BER664583

SCREW

Shoulder, 3/8" x 1" x 5/16"

1шт.

11

PL

PROCURE LOCALLY

Nut, Hex, 5/8"

1шт.

12

PL

PROCURE LOCALLY

Nut, Hex, 3/8"

1шт.

13

BER1100002

NUT

Lock, Stover, 5/16"

2шт.

14

PL

PROCURE LOCALLY

Washer, Lock, 5/8"

1шт.

15

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

1шт.

16

PL

PROCURE LOCALLY

Washer, Flat, 7/16"

1шт.

17

PL

PROCURE LOCALLY

Washer, Flat, 5/16"

2шт.

18

PL

PROCURE LOCALLY

Washer, Nylon, 7/16"

1шт.

19

BER664174

SEAL KIT

KIT, Seals

1шт.

20

BER664548

DECAL

DANGER - (Hydraulic Rotation)

1шт.

21

PL

PROCURE LOCALLY

Washer, Flat 1-1/16"

1шт.

22

PL

PROCURE LOCALLY

Washer, Flat 11/16"

1шт.
