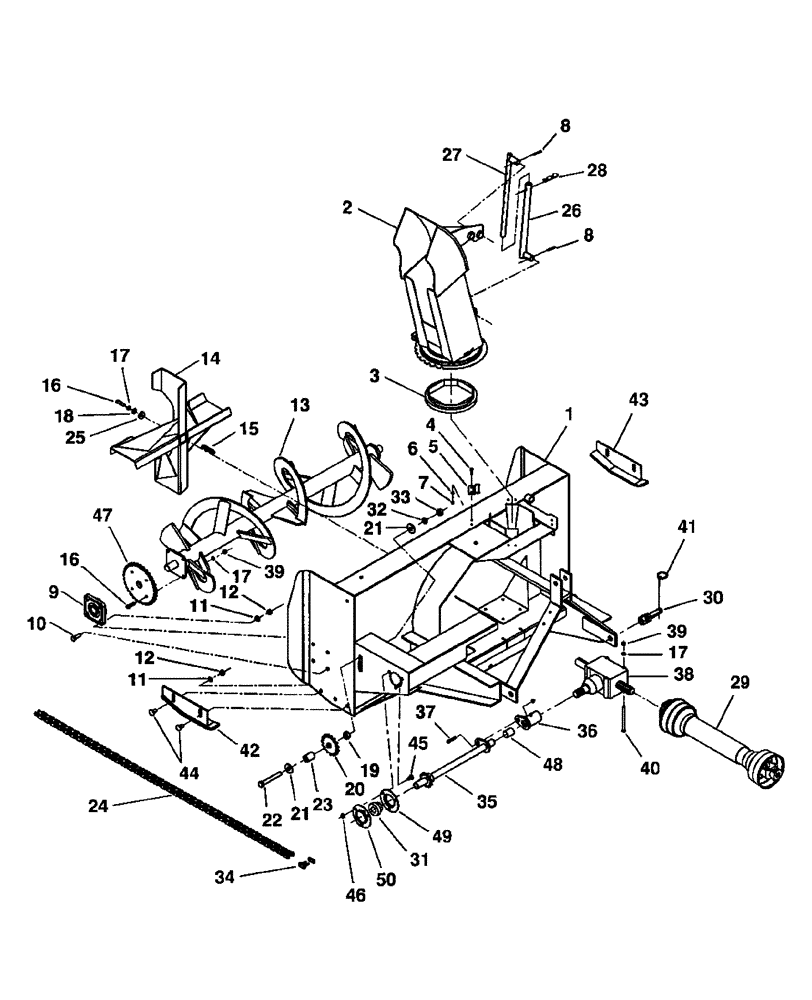

Запчасти Case IH BS164R (100) - 64" SNOWBLOWER

1

NSS

NOT SOLD SEPARAT

Housing, 64"

1шт.

2

BER666850

CHUTE ASSY.

1шт.

3

BER659151

RING

Rotation Bushing

1шт.

4

PL

PROCURE LOCALLY

Bolt, Hex, 1/4" x 3/4", GR5

8шт.

5

BER659146

PLATE

Retaining

4шт.

6

PL

PROCURE LOCALLY

Washer, Lock, 1/4"

8шт.

7

PL

PROCURE LOCALLY

Nut, Hex, 1/4"

8шт.

8

PL

PROCURE LOCALLY

Pin, Cotter, 1/4" dia. x 2"

2шт.

9

BER4300001

BEARING

w /Locking Collar, 1 -1/4"

2шт.

10

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -1/2", GR5

8шт.

11

PL

PROCURE LOCALLY

Washer, Lock, 1/2"

12шт.

12

PL

PROCURE LOCALLY

Nut, Hex, 1/2"

12шт.

13

CSE666269

AUGER

64"

1шт.

14

CSE664400

FAN

1шт.

15

BER654174

KEY

3/8" x 3/8" x 2 -3/4"

1шт.

16

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 1 -1/2", GR5

5шт.

17

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

5шт.

18

PL

PROCURE LOCALLY

Washer, Flat, 7/16"

1шт.

19

BER666264

IDLER

Bushing, 15/32"

1шт.

20

BER654010

IDLER

Sprocket

1шт.

21

PL

PROCURE LOCALLY

Washer, Flat, 11/16"

2шт.

22

PL

PROCURE LOCALLY

Bolt, Hex, 5/8" x 4 -1/2", GR5

1шт.

23

BER666263

IDLER

Bushing, 1 -19/32"

1шт.

24

BER659143

CHAIN

#60, 72 Links, Includes: Ref. 34

1шт.

25

BER661554

WASHER

Fan

1шт.

26

BER654076

TUBE

Adjustment

1шт.

27

BER654074

ADJUSTMENT ROD

1шт.

28

BER1800003

PIN

5mm dia. x 100mm

1шт.

29

BER665341

DRIVE

Series 40

1шт.

30

BER654196

PIN

Hitch, CAT. 1

2шт.

31

BER4300016

BEARING

1 -1/8" dia. hole w/collar

1шт.

32

PL

PROCURE LOCALLY

Washer, Lock, 5/8"

1шт.

33

PL

PROCURE LOCALLY

Nut, Hex, 5/8"

1шт.

34

BER654839

LINK CHAIN

Link, Connecting, #60

1шт.

35

BER666268

DRIVE SHAFT

1шт.

36

BER666257

PLATE

Shear

1шт.

37

BER665547

BOLT

Hex 5/16" x 1 -3/4", GR 5 & stover nut 5/16"

1шт.

38

BER663485

GEARBOX

1шт.

39

PL

PROCURE LOCALLY

Nut, Hex, 3/8"

8шт.

40

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 5", GR5

4шт.

41

BER1900003

PIN

Linch, 7/16"

2шт.

42

BER666254

SKID/SHOE

LH

1шт.

43

BER666255

SKID/SHOE

RH

1шт.

44

PL

PROCURE LOCALLY

Bolt, Carriage, 1/2" x 1" GR5

4шт.

0300022

1шт.

45

BER0300007

BOLT

Carriage, 3/8" x 3/4" GR5

3шт.

46

BER0900035

NUT

Serrated Flange, 3/8"

3шт.

47

BER654167

DRIVING SPROCKET

#60A32

1шт.

48

BER659834

DRIVE BUSHING

Self-Lubricating

1шт.

49

BER4300014

FLANGE

w/ Grease Slot

1шт.

50

BER4300015

FLANGE

w/ Grease fitting

1шт.
