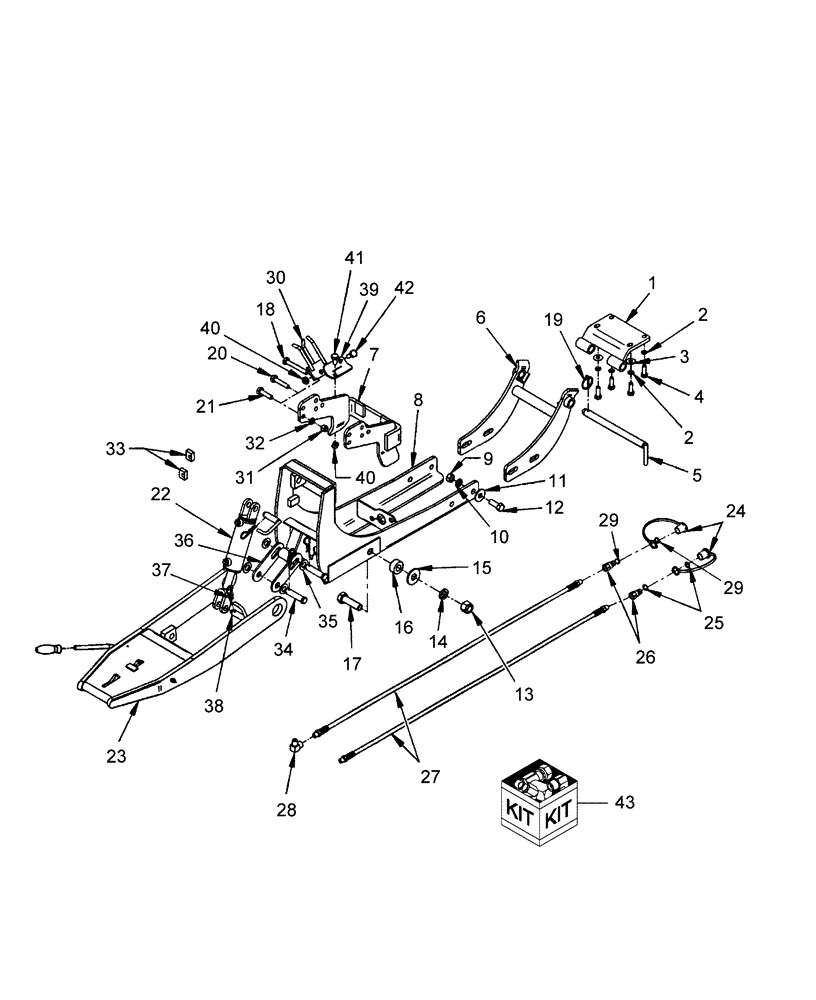

Запчасти Case IH BS163H (101) - MALE QUICK HITCH & SUBFRAME - 715451076, 715425026 (00) - COMPLETE MACHINE

1

BER666867

BRACKET

Rear

1шт.

2

BER1200019

WASHER

Lock, 12mm

4шт.

3

PL

PROCURE LOCALLY

Washer, Flat, 1/2" dia.

2шт.

4

PL

PROCURE LOCALLY

Bolt, Hex, 12mm x 1.75 x 35mm

4шт.

0200109

1шт.

5

BER666862

PIN

7/8" x 11 -3/4"

1шт.

6

BER666863

BRACKET

Rear

1шт.

7

BER666865

BRACKET

Front

1шт.

8

BER666864

BRACKET

Center

1шт.

9

PL

PROCURE LOCALLY

Nut, Hex, 5/8"

4шт.

10

PL

PROCURE LOCALLY

Washer, Lock, 5/8" dia.

4шт.

11

PL

PROCURE LOCALLY

Washer, Flat, 15/16"

4шт.

12

PL

PROCURE LOCALLY

Bolt, Hex, 5/8" x 1 -3/4" GR5

4шт.

13

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 7/8"

2шт.

14

PL

PROCURE LOCALLY

Washer, Lock, 7/8"

2шт.

15

PL

PROCURE LOCALLY

Washer, Flat, 15/16"

2шт.

16

BER665826

BUSHING

Pivot, 1 -3/4"

2шт.

17

PL

PROCURE LOCALLY

Bolt, Hex, 7/8" x 3" GR5

2шт.

18

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 4" GR5

6шт.

19

BER1900004

LINCH PIN

3/16"

1шт.

20

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 2 -1/2" GR5

6шт.

21

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 2" GR5

10шт.

22

BER3900029

CYLINDER,Double Acting, 127mm Stroke

2" x 5", Includes: Ref. 34 & 35

1шт.

23

BER666868

HITCH

QUICK, Male

1шт.

24

BER658203

DUST CAP

3/8"

2шт.

25

BER658205

RING

Identification - Blue

2шт.

26

BER658118

QUICK MALE COUPLING

3/8"

2шт.

27

BER3700051

HOSE

Hoses

1шт.

28

BER655314

ELBOW

90°, 3/8"

2шт.

29

BER658204

RING

Identification - Red

2шт.

30

BER666925

SUPPORT

Support, Hose

1шт.

31

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 1/2"

10шт.

32

PL

PROCURE LOCALLY

Washer, Lock, 1/2"

10шт.

33

BER666914

BRACKET

2шт.

34

BER4600020

LINCH PIN,19.05mm OD x 76.2mm L

Pin 3/4" x 3" Long

2шт.

35

PL

PROCURE LOCALLY

Pin, Cotter, 3/16 dia. x 1 -1/2"

4шт.

36

BER666846

SUPPORT

Limit Stop

2шт.

37

BER1800002

PIN

4mm x 80mm

4шт.

38

BER666929

HITCH PIN

Cylinder Pins

2шт.

39

BER666959

PLATE

Hose Support Plate

1шт.

40

BER0900046

NUT

1/2"

2шт.

41

PL

PROCURE LOCALLY

Bolt, Hex 1/2" x 1"

1шт.

42

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 1/4"

1шт.

43

BER665434

SEAL KIT

1шт.
