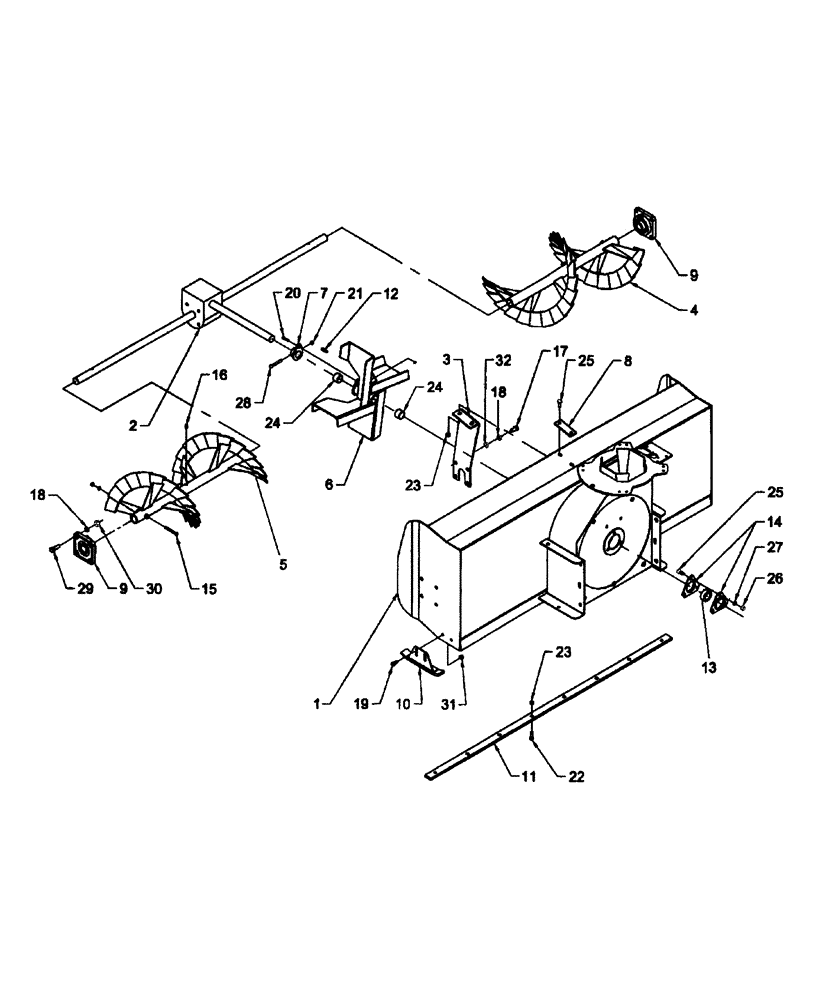

Запчасти Case IH BS163H (100) - 63" SNOWBLOWER (00) - COMPLETE MACHINE

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

BER4500002

GEARBOX

1шт.

3

CSE665757

SUPPORT

Gearbox

1шт.

4

CSE660377

AUGER

RH

1шт.

5

CSE660376

AUGER

LH

1шт.

6

CSE665753

FAN

1шт.

7

CSE665999

PLATE

Shear

1шт.

8

CSE654468

REINFORCEMENT

Plate

1шт.

9

BER4300001

BEARING

w /Locking Collar, 1 -1/4"

2шт.

10

BER665664

SHOE

Skid

2шт.

11

BER659531

CUTTING EDGE

1шт.

12

86628576

KEY

1/4" x 1/4" x 1 -1/4"

1шт.

13

BER654170

BEARING ASSY

w/ locking collar

1шт.

14

BER657893

FLANGE

2шт.

15

BER654106

FITTING

Grease, 1/4"

2шт.

16

BER657296

BOLT

Shear, 5/16" x 1 -1/2", Includes: Nut & Washer

2шт.

17

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1" GR5

4шт.

18

PL

PROCURE LOCALLY

Washer, Lock, 1/2"

12шт.

19

BER0300008

CARRIAGE BOLT

3/8" x 1" GR5

4шт.

20

BER665748

BOLT

Shear, 5/16" x 1 -1/2", Includes: Stover Nut

1шт.

21

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 5/16"

1шт.

22

BER0400002

BOLT

Plow, 3/8" x 1 -1/4" GR5

8шт.

23

BER0900035

NUT

Serrated Flange, 3/8"

10шт.

24

BER654689

DRIVE BUSHING

2шт.

25

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 1" GR5

5шт.

26

PL

PROCURE LOCALLY

Nut, Hex, 3/8"

3шт.

27

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

3шт.

28

PL

PROCURE LOCALLY

Bolt, Hex, 5/16" x 2 -1/2" GR5

1шт.

29

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -1/2" GR5

8шт.

30

PL

PROCURE LOCALLY

Nut, Hex, 1/2"

8шт.

31

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 3/8"

4шт.

32

PL

PROCURE LOCALLY

Washer, Flat, 9/16"

4шт.
