(35.162.030) - VAR - 439205006 - HYDRAULIC LINES

Запчасти Case IH BS163H (35.162.030) - VAR - 439205006 - HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

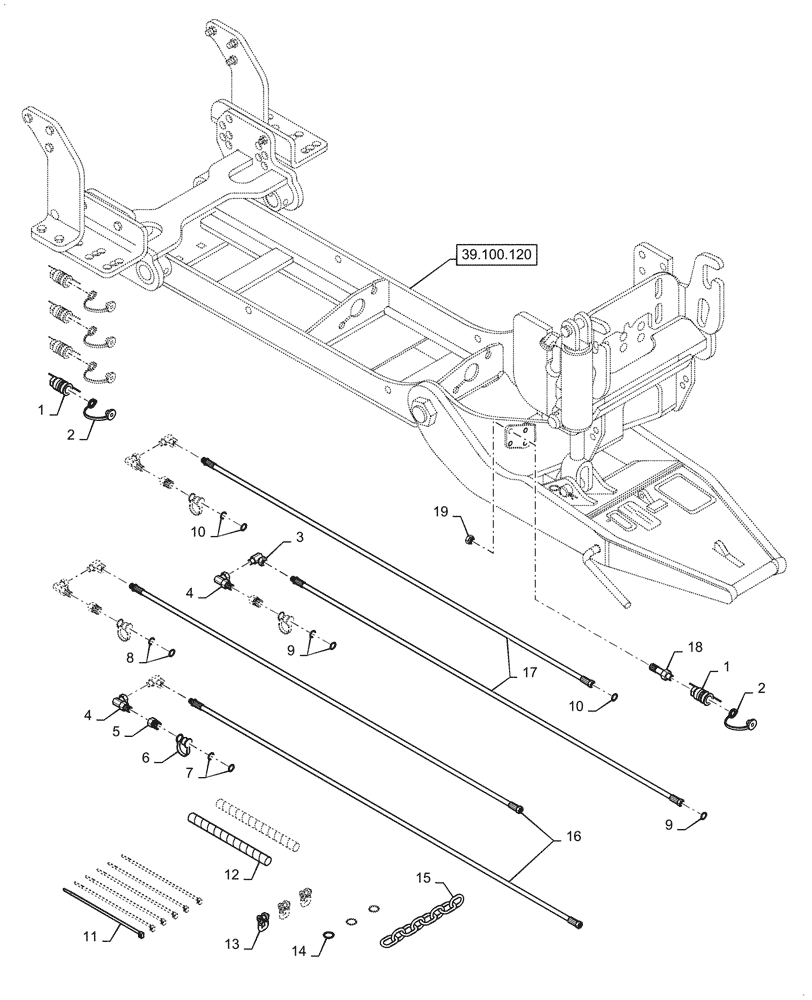

Схема запчастей Case IH BS163H - (35.162.030) - VAR - 439205006 - HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS
39.100.120
8
4
2
15
14
18
6
9
2
13
10
3
17
11
9
7
10
4
16
6
19
1
5
1
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BER2600110

COUPLING, QUICK, FEM

3/8" NPT

6шт.

2

BER2600113

DUST CAP

Hydraulic Coupler

6шт.

3

BER654557

ELBOW

90 Degree, 3/8" NPT

7шт.

4

BER3900204

ELBOW

Flow Restrictor, 90 Degree, 3/8" NPT x 3/8" NPT

1шт.

5

BER658118

QUICK MALE COUPLING

3/8" NPT

4шт.

6

BER658203

DUST CAP

1/4"

4шт.

7

BER658205

RING

Blue

2шт.

8

BER658204

RING

Red

2шт.

9

BER658206

RING

Yellow

3шт.

10

BER658209

RING

Green

3шт.

11

BER2100011

14-7/8" L

CABLE TIE

6шт.

12

BER671428

Hydraulic Hose, 15" L

GUARD

2шт.

13

BERA-10381

CLEVIS

3/8" OD

3шт.

14

BER1900011

COTTER PIN

1-1/4" L

3шт.

15

BER2300022

CHAIN

3/8" x 8" L

1шт.

16

BER3700302

1/4" ID x 72" L

2шт.

17

BER3700301

1/4" ID x 77" L

2шт.

18

BER2600072

HYD CONNECTOR

Bulkhead Adapter, 9/16" JIC x 3/8" NPT

2шт.

19

BER2600073

NUT

Bulkhead, 9/16"

2шт.
