Запчасти Case IH BS163H (35.162.020) - VAR - 439145006 - QUICK-HITCH HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

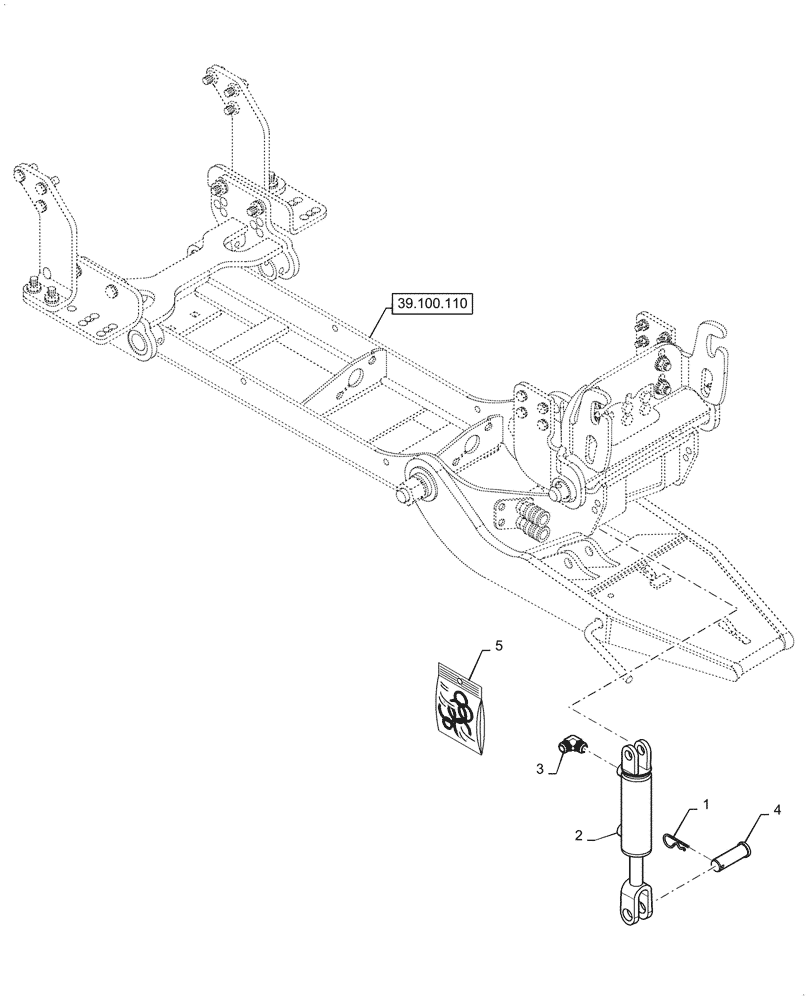

Схема запчастей Case IH BS163H - (35.162.020) - VAR - 439145006 - QUICK-HITCH HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS
39.100.110
5
2
1
4
3

Артикул

Название

Примечание

Количество

1

BER1800004

COTTER PIN

3mm OD x 65mm L

1шт.

2

BER3900029

CYLINDER,Double Acting, 127mm Stroke

Quick Hitch

1шт.

3

BER655269

ELBOW

45 Degree, 3/8" NPT

1шт.

4

BER665151

PIN

3/4" OD x 3" L

1шт.

5

BER665434

SEAL KIT

Services 2, Quick Hitch Hydraulic Cylinder

1шт.

Выбрано товаров: 5
