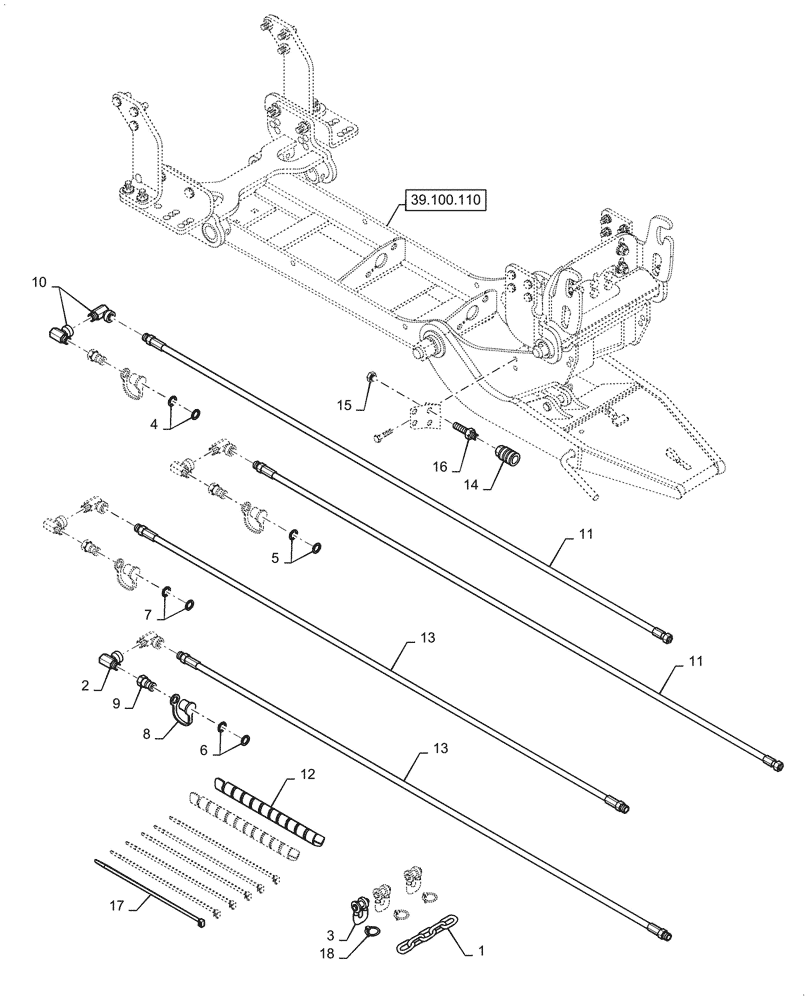

Запчасти Case IH BS163H (35.162.010) - VAR - 439145006 - HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

BER2300022

CHAIN

3/8" x 8" L

1шт.

2

BER3900204

ELBOW

Flow Restrictor, 3/8" NPT x 3/8" NPT

1шт.

3

BERA-10381

CLEVIS

3/8" OD

3шт.

4

BER658209

RING

Green

2шт.

5

BER658206

RING

Yellow

2шт.

6

BER658205

RING

Blue

2шт.

7

BER658204

RING

Red

2шт.

8

BER658203

DUST CAP

Quick Coupler

4шт.

9

BER658118

QUICK MALE COUPLING

3/8" NPT

4шт.

10

BER654557

ELBOW

90 Degree, 3/8" NPT

7шт.

11

BER3700273

HYDRAULIC HOSE

1/4" ID x 73" L

2шт.

12

BER671428

Hydraulic Hose, 15" L

GUARD

2шт.

13

BER3700054

HYDRAULIC HOSE

1/4" ID x 68" L

2шт.

14

BER2600110

COUPLING, QUICK, FEM

3/8" NPT

2шт.

15

BER2600073

NUT

9/16" JIC

2шт.

16

BER2600072

HYD CONNECTOR

Bulkhead Adapter, 9/16" JIC x 3/8" NPT

2шт.

17

BER2100011

14-7/8" L

CABLE TIE

6шт.

18

BER1900011

COTTER PIN

1-1/4" OD

3шт.
