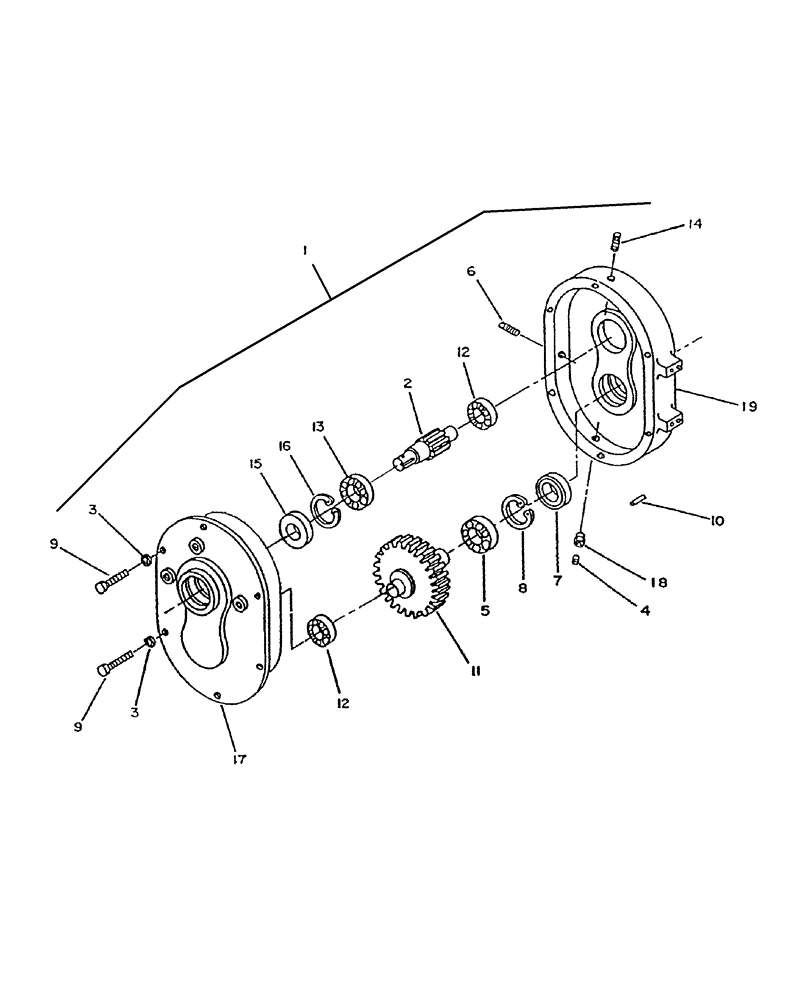

Запчасти Case IH BS163H (150.05) - GEARBOX BER4500136 - 717151066 (00) - COMPLETE MACHINE

1

BER4500136

GEARBOX

GEARBOX Includes Ref 1-22

1шт.

2

BER655934

HOUSING

1шт.

3

BER655935

COVER

1шт.

4

BER655662

GEAR SET

Worm & Bronze

1шт.

5

BER654927

BREATHER

1шт.

6

273423

ROLLER BEARING,1.25" ID x 0.81"

Inner

3шт.

7

140868

ROLLER BEARING,1.0005" ID x 0.8125"

Inner

1шт.

8

28966

BEARING CUP,62.03mm OD x 14.29mm W

Outer

4шт.

9

197297

SNAP RING,#98, Ext

#98, Ext

1шт.

10

32324

SNAP RING,2.44", Int, #244

4шт.

11

PL

PROCURE LOCALLY

Allen Set Screw 1/4" x 3/8"

1шт.

12

PL

PROCURE LOCALLY

Cap Screw, 3/8" x 3/4"

4шт.

13

BER664127

SHAFT

Input

1шт.

14

BER654505

SHAFT

Output

1шт.

15

BER654506

KEY

Woodruff

1шт.

16

280934

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

17

BER654508

SEAL PROTECTION

3шт.

18

BER654513

SHIM

1шт.

19

BER654068

PLUG

3/8"-18

1шт.

20

BER654512

CAP COVER

1шт.

21

BER656090

PLUG

Oil Level, 1/8" -27

1шт.

22

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

4шт.
