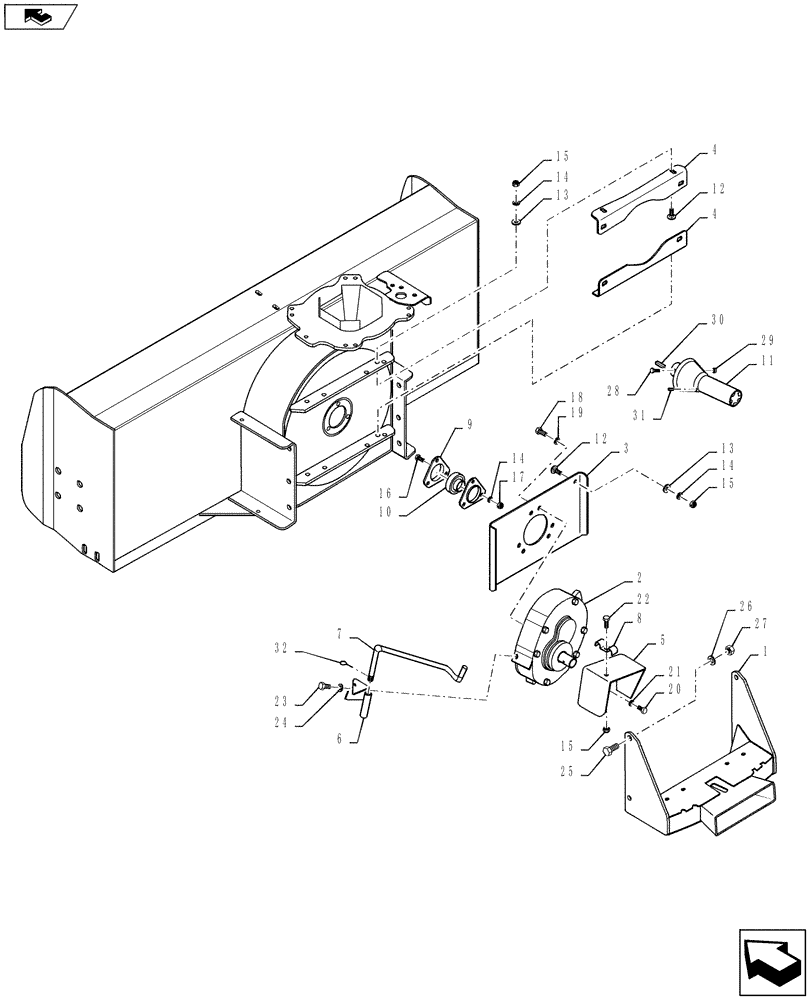

Запчасти Case IH BS163H (150.01) - 63" SNOWBLOWER REAR - 717151066 (00) - COMPLETE MACHINE

1

BER666807

HITCH

Female

1шт.

2

BER665330

GEAR REDUCTION UNIT

Refer to Fig. 152 for Breakdown

1шт.

3

BER669769

SUPPORT

Reduction Box

1шт.

4

BER669768

BRACKET

BRACKET, Reduction Box Support

2шт.

5

BER665406

GUARD

Driveline

1шт.

6

BER661406

BRACKET

Driveline Support

1шт.

7

BER665446

SUPPORT

Driveline

1шт.

8

BER666583

HOSE CLAMP

1шт.

9

BER657893

FLANGE

Triangular

2шт.

10

BER4300009

BEARING

BEARING W/Locking Collar

1шт.

11

BER659830

PTO

Driveline, Female Half

1шт.

12

BER0300009

BOLT

Carriage, 3/8" x 1-1/4" GR5

8шт.

13

PL

PROCURE LOCALLY

FLAT WASHER,3/8" (7/16" HOLE)

8шт.

14

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

11шт.

15

BER1000006

LOCK NUT

3/8"

9шт.

16

BER0300008

CARRIAGE BOLT

3/8" x 1" GR5

3шт.

17

BER0900003

NUT

Hex, 3/8"

3шт.

18

BER0200012

BOLT

M10 x 1.5 x 20mm

3шт.

19

BER1200018

WASHER

Lock, 10mm

3шт.

20

BER0200011

BOLT

Hex, M10 x 1.5 x 16mm GR8

2шт.

21

PL

PROCURE LOCALLY

Washer, Lock, 7/16"

2шт.

22

BER0100038

BOLT

Hex, 3/8" x 1" GR5

1шт.

23

BER0200084

BOLT

Hex, M12 x 1.75 x 20mm

2шт.

24

BER1200019

WASHER

12mm

2шт.

25

PL

PROCURE LOCALLY

BOLT, Hex 5/8" x 1-1/4" GR5

4шт.

26

BER1200007

WASHER

Lock, 5/8"

4шт.

27

BER0900007

NUT

5/8"

4шт.

28

PL

PROCURE LOCALLY

BOLT, Hex 1/4" x 2-1/2" GR5

1шт.

29

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 1/4"

1шт.

30

86628576

KEY

1/4' x 1/4" x 1 -1/4"

1шт.

31

BER1800004

COTTER PIN

3mm x 65mm

1шт.
