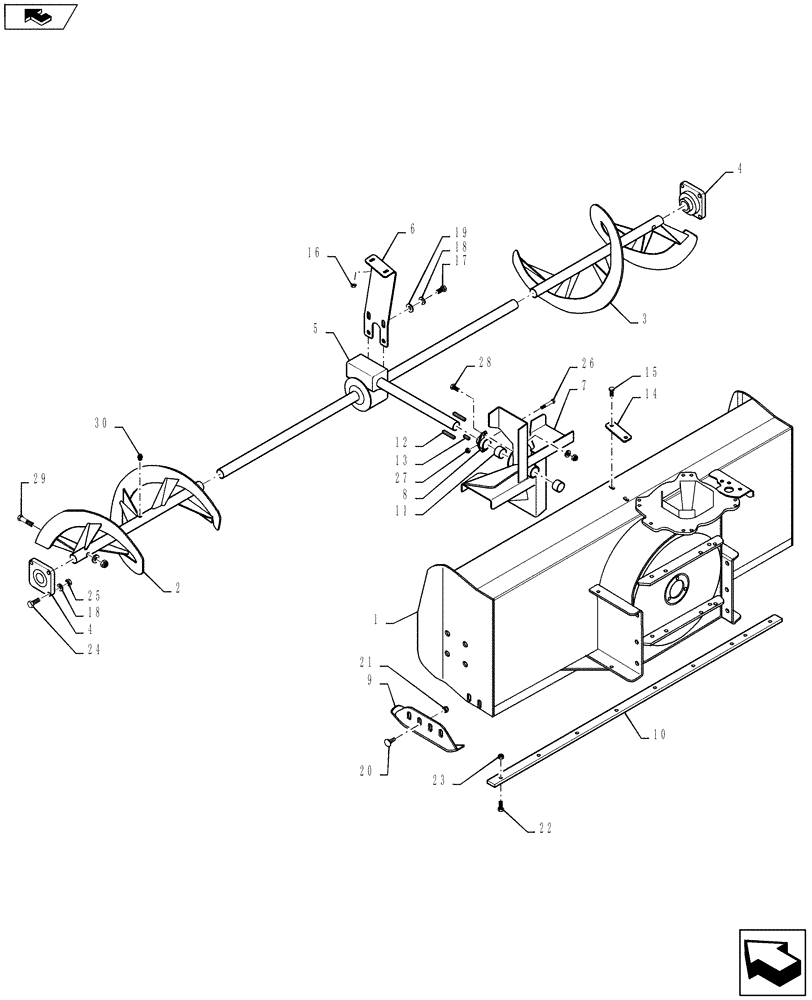

Запчасти Case IH BS163H (150) - 63" SNOWBLOWER FRONT - 717151066 (00) - COMPLETE MACHINE

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

CSE660376

AUGER

LH

1шт.

3

CSE660377

AUGER

RH

1шт.

4

BER4300001

BEARING

w /Locking Collar, 1 -1/4"

2шт.

5

BER4500136

GEARBOX

GEARBOX

1шт.

6

CSE665842

SUPPORT

Gearbox

1шт.

7

CSE665998

FAN

FAN

1шт.

8

CSE665999

PLATE

Shear

1шт.

9

BER669586

SHOE

Skid SHOE

2шт.

10

BER659531

CUTTING EDGE

1шт.

11

BER4300057

BUSHING

BUSHING

2шт.

12

BER669807

KEY

KEY, 1/4" x 1/4" x 2-1/4"

2шт.

13

86628576

KEY

KEY, 1/4" x 1/4" x 1-1/4"

1шт.

14

CSE654468

REINFORCEMENT

Plate

1шт.

15

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 1" GR5

2шт.

16

BER0900035

NUT

Serrated Flange, 3/8"

2шт.

17

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1" GR5

4шт.

18

PL

PROCURE LOCALLY

Washer, Lock, 1/2"

12шт.

19

PL

PROCURE LOCALLY

Washer, Flat, 1/2" (9/16" Hole)

4шт.

20

BER0300008

CARRIAGE BOLT

3/8" x 1" GR5

4шт.

21

BER1000006

LOCK NUT

3/8"

4шт.

22

BER0400002

BOLT

Plow, 3/8" x 1 -1/4" GR5

8шт.

23

BER1100003

NUT

Lock, 3/8"

8шт.

24

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -1/2" GR5

8шт.

25

PL

PROCURE LOCALLY

Nut, Hex 1/2"

8шт.

26

PL

PROCURE LOCALLY

Bolt, Hex, 5/16" x 2 -1/2" GR5

1шт.

27

PL

PROCURE LOCALLY

Nut, Lock, Nylon insert, 5/16"

1шт.

28

BER665748

BOLT

Shear 5/16" x 1 -1/4", Includes Nut & Washer

1шт.

29

BER657296

BOLT

Shear, 5/16" x 2 -1/2", Includes: Nut & Washer

2шт.

30

BER654106

FITTING

2шт.
