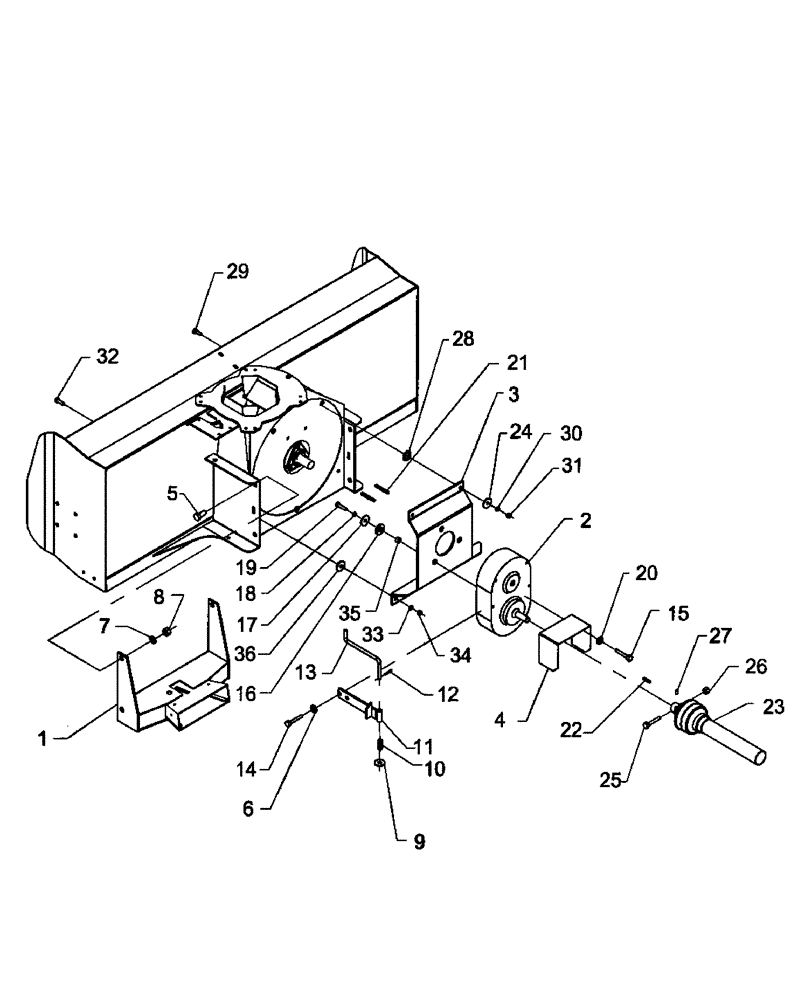

Запчасти Case IH BS163H (104.01) - FEMALE HITCH & REDUCTION BOX - 715346006 (00) - COMPLETE MACHINE

1

BER666807

HITCH

Female

1шт.

2

BER665330

GEAR REDUCTION UNIT

Refer to Fig. 106 for Components

1шт.

3

BER666820

SUPPORT

Reduction Box

1шт.

4

BER665406

GUARD

Driveline

1шт.

5

PL

PROCURE LOCALLY

Bolt, Hex, 5/8" x 1 -1/2" GR5

4шт.

6

PL

PROCURE LOCALLY

Washer Lock, 1/2"

2шт.

7

PL

PROCURE LOCALLY

Washer, Lock, 5/8"

4шт.

8

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 5/8"

4шт.

9

PL

PROCURE LOCALLY

Washer, Flat, 1/2"

1шт.

10

BER31471

SPRING

9/16" x 1 -3/8"

1шт.

11

BER666873

SUPPORT

1шт.

12

PL

PROCURE LOCALLY

Pin, Cotter, 3/32" x 1"

1шт.

13

BER666098

SUPPORT

1шт.

14

BER0200022

BOLT

Hex, M12 x 1.75 x 25mm GR8

2шт.

15

BER0200011

BOLT

Hex, M10 x 1.5 x 15mm GR8

2шт.

16

BER664777

WASHER

Rubber

3шт.

17

BER664776

WASHER

Flat

3шт.

18

BER1200018

WASHER

Lock, 10mm

4шт.

19

BER0200016

BOLT

Hex, M10 x 1.5 x 30mm GR8

3шт.

20

PL

PROCURE LOCALLY

Washer, Lock, 7/16"

2шт.

21

BER660924

KEY

1/4' x 1/4" x 2-1/2"

2шт.

22

86628576

KEY

1/4' x 1/4" x 1 -1/4"

1шт.

23

BER659830

PTO

Female Half

1шт.

24

PL

PROCURE LOCALLY

Washer, Flat

2шт.

25

PL

PROCURE LOCALLY

Bolt, Hex, 1/4" x 2 -1/2" GR5

1шт.

26

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 1/4"

1шт.

27

BER0500017

BOLT

Set, 3/8" x 3/8"

1шт.

28

BER664778

WASHER

Flat

2шт.

29

PL

PROCURE LOCALLY

Screw, Set, Allen Flathead, 5/16" x 1" GR5

2шт.

0700005

1шт.

30

PL

PROCURE LOCALLY

Washer, Lock, 5/16"

2шт.

31

PL

PROCURE LOCALLY

Nut, Hex, 5/16"

2шт.

32

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 1" GR5

2шт.

33

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

2шт.

34

PL

PROCURE LOCALLY

Nut, Hex, 3/8"

2шт.

35

BER664775

BUSHING

Long

3шт.

36

PL

PROCURE LOCALLY

Washer, Flat, 7/16"

2шт.
