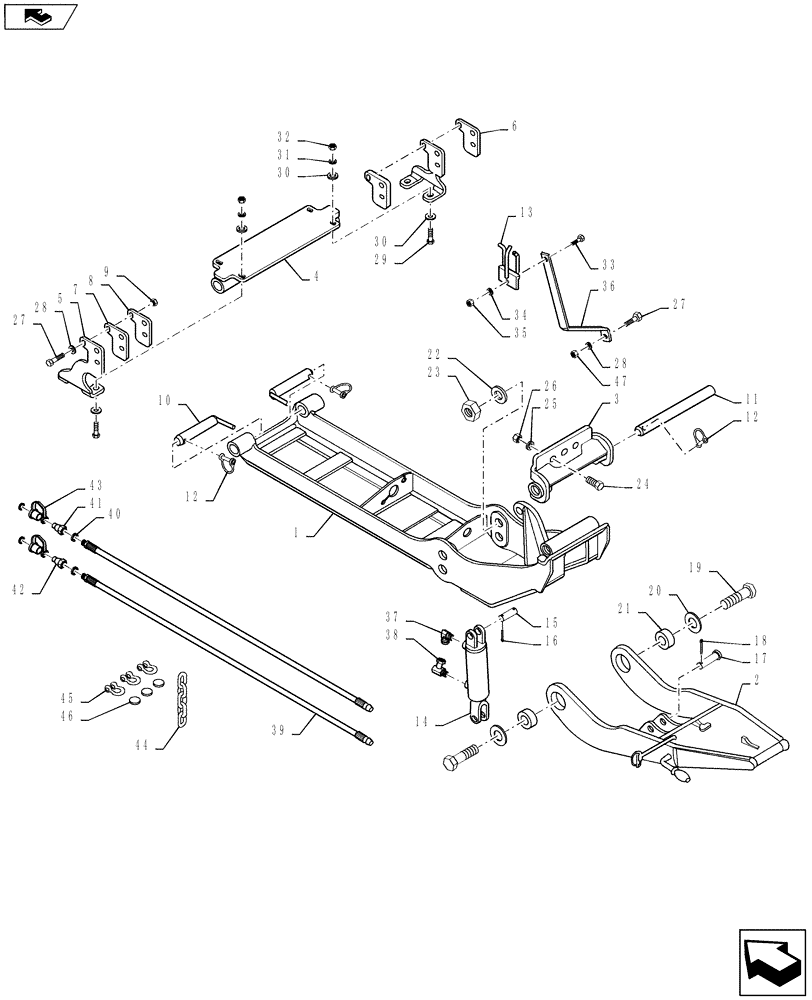

Запчасти Case IH BS163H (102) - MALE QUICK HITCH & SUBFRAME - 717989006 (00) - COMPLETE MACHINE

1

BER669624

FRAME

SUBRAME

1шт.

2

BER669632

HITCH

HITCH, Male Quick

1шт.

3

BER669625

BRACKET, SUPPORTING

BRACKET, Front

1шт.

4

BER669626

BRACKET, SUPPORTING

BRACKET, Rear

1шт.

5

BER669628

BRACKET

BRACKET, Right Side

1шт.

6

BER669629

BRACKET

BRACKET, Left Side

1шт.

7

BER669630

SPACER

SPACER, 5/16"

2шт.

8

BER669631

SPACER

SPACER, 5/8"

2шт.

9

BER669636

SPACER

SPACER, Ring

2шт.

10

BER669634

PIN

L Pin 1-3/16"

2шт.

11

BER668786

PIN

T Pin 1-3/16"

1шт.

12

BER1900006

PIN, SPLIT (COTTER)

PIN, COTTER Round Wire Lock Pins 1/4" x 1-3/4"

3шт.

13

BER666925

SUPPORT

SUPPORT, Hose

1шт.

14

BER3900029

CYLINDER,Double Acting, 127mm Stroke

2"x5" Includes: 15 & 16

1шт.

15

BER665235

PIN

Pins, Attaching 3/4x2-1/2

1шт.

16

PL

PROCURE LOCALLY

Pin, Cotter 3/16"X1-1/2"

2шт.

17

BER665151

PIN

3/4"

1шт.

18

BER1800004

COTTER PIN

Pin, Spring, 3/16" x 2"

1шт.

19

PL

PROCURE LOCALLY

Bolt, Hex, 1 -1/8" x 4"

2шт.

20

PL

PROCURE LOCALLY

Washer, Flat, 1-1/8" OD 1-1/4" ID

2шт.

21

BER669635

BUSHING

BUSHING, Pivot

2шт.

22

PL

PROCURE LOCALLY

Washer, Lock, 1 -1/8"

2шт.

23

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 1 -1/8"

2шт.

24

PL

PROCURE LOCALLY

BOLT, Hex 5/8" x 1-3/4"

3шт.

25

PL

PROCURE LOCALLY

Washer, Lock, 5/8"

3шт.

26

PL

PROCURE LOCALLY

NUT, Hex 5/8"

3шт.

27

PL

PROCURE LOCALLY

Bolt, Hex, 14mm x 55mm x 2mm

7шт.

28

PL

PROCURE LOCALLY

LOCKWASHER, 14mm

7шт.

29

PL

PROCURE LOCALLY

Bolt, Hex, 7/16" x 1 -3/4"

4шт.

30

PL

PROCURE LOCALLY

Washer, Flat, 7/16" OD 1/2" ID

8шт.

31

PL

PROCURE LOCALLY

Washer, Lock, 7/16"

4шт.

32

PL

PROCURE LOCALLY

Nut, Hex, 7/16"

4шт.

33

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -1/2"

1шт.

34

PL

PROCURE LOCALLY

Lockwasher, 1/2"

1шт.

35

PL

PROCURE LOCALLY

Nylon Insert Locknut 1/2"

1шт.

36

BER667027

BRACKET, SUPPORTING

BRACKET, Hose Support

1шт.

37

BER654557

ELBOW

90° - 3/8"X3/8"

1шт.

38

BER3900204

ELBOW

Restrictor, Flow .063 Hole, 90°

1шт.

35

BER3700051

HOSE

HOSE

2шт.

36

BER658205

RING

Identification - Blue

2шт.

37

BER658204

RING

Identification - Red

2шт.

38

BER658118

QUICK MALE COUPLING

3/8"

2шт.

39

BER658203

DUST CAP

3/8"

2шт.

40

BER2300022

CHAIN

CHAIN, 3/8" x 3" Long

2шт.

41

PL

PROCURE LOCALLY

CLEVIS PIN, 3/8"

3шт.

42

PL

PROCURE LOCALLY

RING, RETAINING 1-1/4"

3шт.

43

PL

PROCURE LOCALLY

NUT, Hex 14mm, Serial Range: -43

1шт.
