(203) - FEMALE HITCH - FRONT MOUNT

Запчасти Case IH BS151 (203) - FEMALE HITCH - FRONT MOUNT

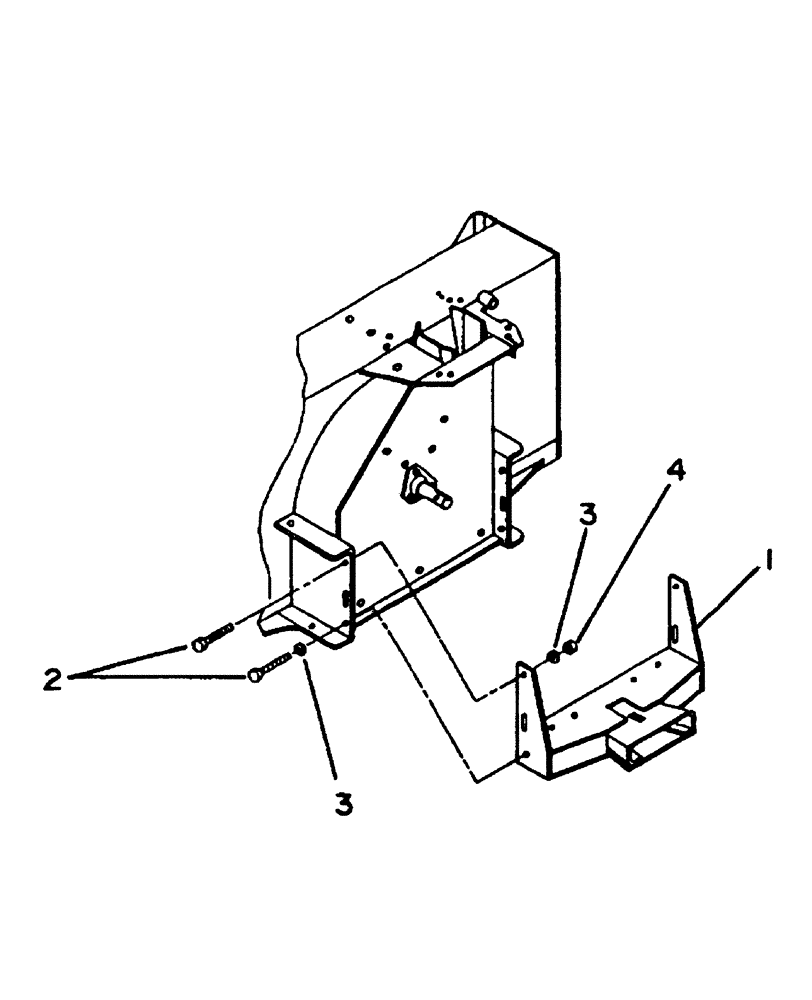

Схема запчастей Case IH BS151 - (203) - FEMALE HITCH - FRONT MOUNT
3
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BER660019

3 POINT HITCH

QUICK, Female

1шт.

2

PL

PROCURE LOCALLY

Bolt, Hex, 5/8" x 1 -1/4" GR5

4шт.

3

PL

PROCURE LOCALLY

Washer, Lock, 5/8"

4шт.

4

PL

PROCURE LOCALLY

Nut, Hex, 5/8"

2шт.
