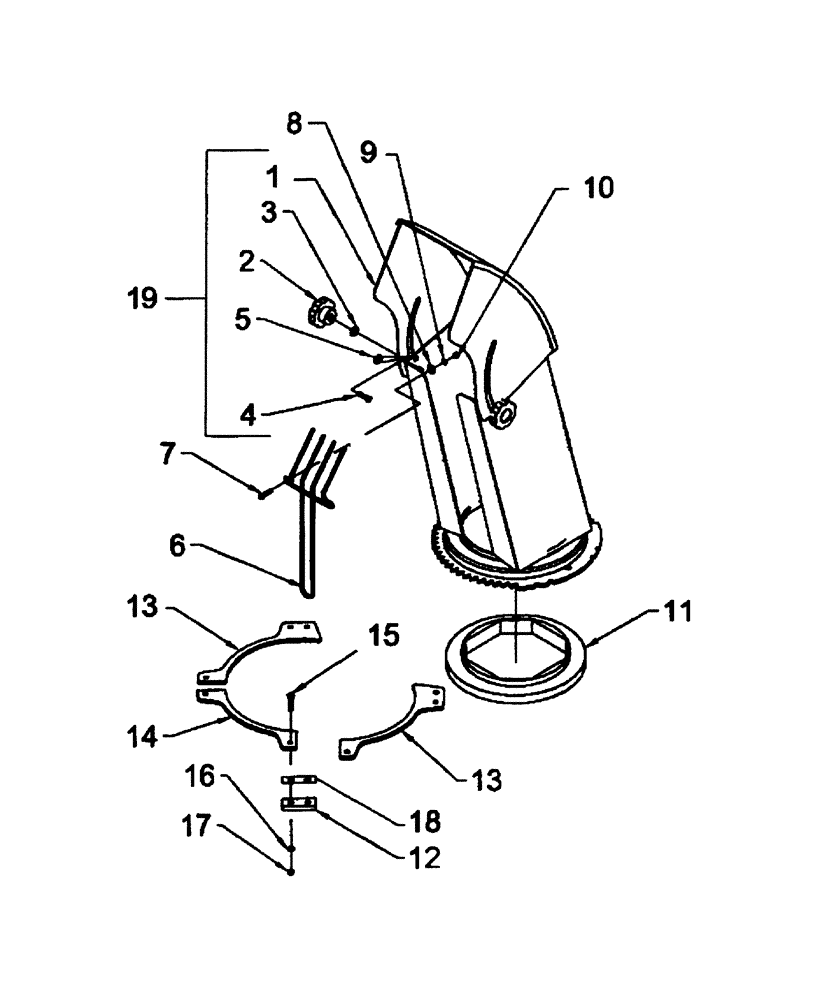

Запчасти Case IH BS151 (202) - CHUTE WITH DEFLECTOR

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

BER657309

KNOB

5/16"

2шт.

3

BER658467

WASHER

Flat, Nylon, 11/32"

2шт.

4

PL

PROCURE LOCALLY

Bolt, Carriage, 5/16" x 1" GR5

2шт.

5

BER658468

WASHER

Flat, Nylon, 7/16"

2шт.

6

BER657308

GUARD

1шт.

7

PL

PROCURE LOCALLY

Bolt, Hex, 1/4" x 3/4" GR5

2шт.

8

PL

PROCURE LOCALLY

Washer, Flat, 5/16"

2шт.

9

PL

PROCURE LOCALLY

Washer, Lock, 1/4"

2шт.

10

PL

PROCURE LOCALLY

Nut, Hex, 1/4"

2шт.

11

BER659151

RING

1шт.

12

BER665957

SHIM

4шт.

13

BER665399

RETAINING PLATE

LH & RH

2шт.

14

BER666574

RETAINING PLATE

Center

1шт.

15

PL

PROCURE LOCALLY

Bolt, Hex, 5/16" x 1 -1/4" GR5

8шт.

16

PL

PROCURE LOCALLY

Washer, Lock, 5/16"

8шт.

17

PL

PROCURE LOCALLY

Nut, Hex, 5/16"

8шт.

18

BER666191

SPACER

4шт.

19

BER666567

CHUTE

1шт.
