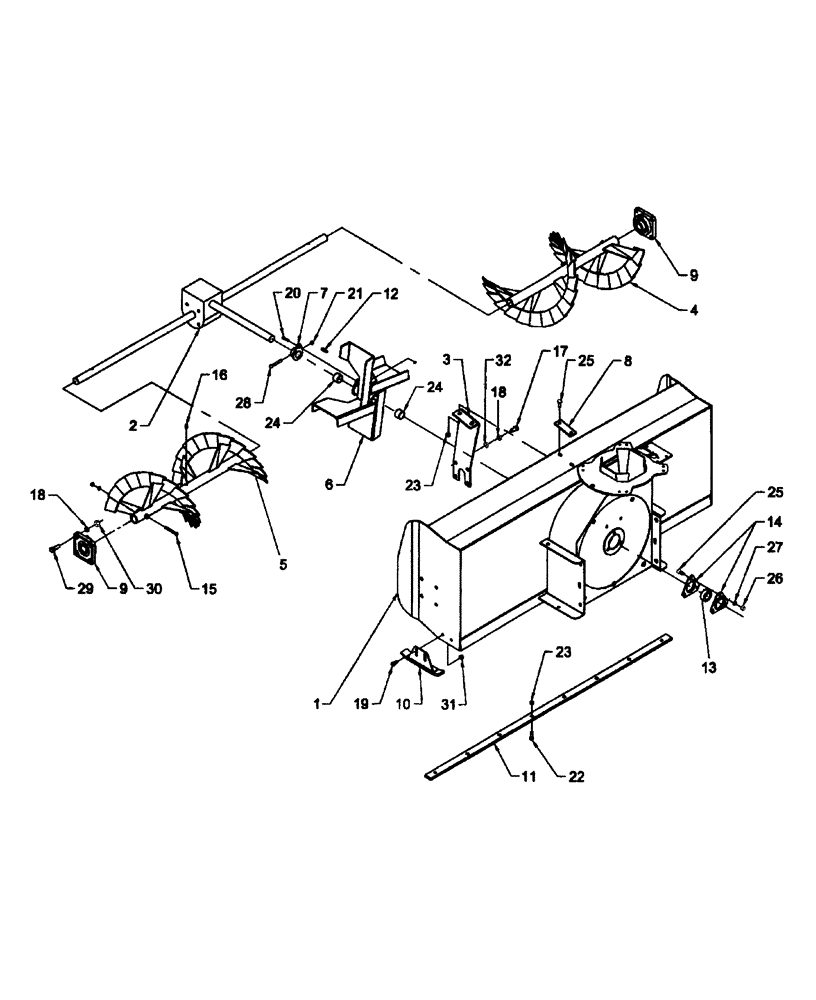

Запчасти Case IH BS151 (200) - SNOWBLOWER BSX151 & BSX163

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

BER661885

GEARBOX

BSX150

1шт.

2

BER661887

GEARBOX

BSX163

1шт.

3

CSE665842

SUPPORT

Gearbox

1шт.

4

CSE660375

AUGER

RH, BSX150

1шт.

4

BER660377

AUGER

RH, BSX163

1шт.

5

CSE660374

AUGER

LH, BSX150

1шт.

5

BER660376

AUGER

LH, BXS163

1шт.

6

CSE659149

FAN

1шт.

7

CSE659492

PLATE

Shear

1шт.

8

CSE654468

REINFORCEMENT

1шт.

9

BER4300001

BEARING

1 -1/4", 4 holes

2шт.

10

BER665664

SHOE

Adjustable

2шт.

11

BER659384

CUTTING EDGE

BSX150

1шт.

11

BER659531

CUTTING EDGE

BSX163

1шт.

12

86628576

KEY

1/4" x 1/4" x 1 -1/4"

1шт.

13

BER654170

BEARING ASSY

1 -1/4", w/ Locking Collar

1шт.

14

BER657893

FLANGE

Triangular, 3 holes

2шт.

15

BER657296

BOLT

Shear, Special, 5/16" GR5, Includes: Lockwasher & Nut

2шт.

16

BER654106

FITTING

Grease

2шт.

17

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1" GR5

4шт.

18

PL

PROCURE LOCALLY

Washer, Lock, 1/2"

12шт.

19

PL

PROCURE LOCALLY

Bolt, Carriage, 3/8" x 1" GR5

4шт.

20

BER656048

BOLT

Shear, 1/4" x 1 -1/4" GR8, Includes: Stover & Nut

1шт.

21

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 5/16"

1шт.

22

BER0400002

BOLT

Plow, 3/8" x 1 -1/4" GR5, BSX150

6шт.

22

BER0400002

BOLT

Plow, 3/8" x 1 -1/4" GR5, BSX163

8шт.

23

BER0900035

NUT

Flange, Serrated 3/8", BSX150

8шт.

23

BER0900035

NUT

Flange, Serrated 3/8", BSX163

10шт.

24

BER654689

DRIVE BUSHING

2шт.

25

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 1" GR5

5шт.

26

PL

PROCURE LOCALLY

Nut, Hex, 3/8"

3шт.

27

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

3шт.

28

PL

PROCURE LOCALLY

Bolt, Hex, 5/16" x 2 -1/2" GR5

1шт.

29

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -1/2" GR5

8шт.

30

PL

PROCURE LOCALLY

Nut, Hex, 1/2"

8шт.

31

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 3/8"

4шт.

32

PL

PROCURE LOCALLY

Washer, Flat, 9/16"

4шт.
