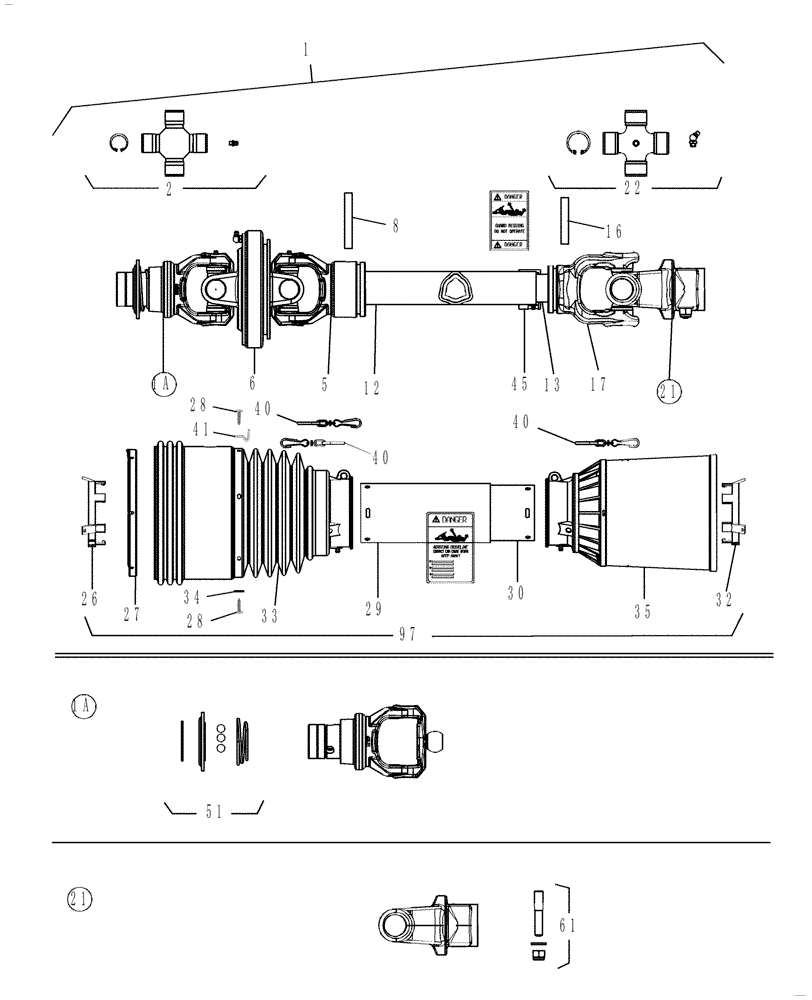

Запчасти Case IH 717721496 (018[01]) - MAIN PTO (1000 RPM) (01) - PTO DRIVE SHAFT

1

MAG415D0001D02

PTO

Main 80 Deg CV PTO, 1000 rpm, 1-3/4", 20 Teeth

1шт.

1

MAG415D0001D05

PTO

Main 80 Deg CV PTO, 1000 rpm, 1-3/8", 21 Teeth

1шт.

1a

MAG501D0533D03

YOKE

80 Deg. CV, 1-3/4"-20 Spline

2шт.

1a

MAG501D0533D02

YOKE

80 Deg. CV, 1-3/8"-21 spline

1шт.

2

MAG501D0534D01

CROSS

Kit, 80 DEG CV

1шт.

5

MAG501D0536D01

YOKE

1шт.

6

MAG501D0535D01

UNIVERSAL JOINT

Central Body, 80 Deg. CV

1шт.

8

MAG343D1505

ROLL PIN

Outer

1шт.

12

MAG501D0557D01

TUBE

Outer

1шт.

13

MAG501D0558D01

TUBE

Inner

1шт.

16

MAG343D1504

ROLL PIN

Inner

1шт.

17

MAG343D1306

YOKE

Inner Tube

1шт.

21

MAG501D0559

YOKE

1-3/8", 20 Spline Taper Pin

1шт.

22

MAG343D1212

KIT

Cross, With 45 Deg. Grease Zerl

1шт.

26

MAG343D1979

PROTECTION PLATE

Outer Shield

1шт.

27

MAG501D0542D01

SUPPORT

80 Deg, CV

6шт.

28

MAG501D0500

SELF-TAP SCREW

1шт.

29

MAG501D0585

OUTER SHIELD

Tube

1шт.

30

MAG504D0587

INNER SHIELD

Tube

1шт.

32

MAG343D1980

PROTECTION PLATE

Inner Shield

1шт.

33

MAG501D0543D01

CONE

Shield, 80 Deg. CV

1шт.

35

MAG501D0079D01

CONE

Inner Shield

3шт.

40

MAG501D0526

CHAIN

1шт.

45

MAG501D0562

COLLAR

1шт.

51

MAG501D1102

KIT

1-3/8"

1шт.

61

MAG501D0531

KIT

1-3/4", Contains 3 Pins

1шт.

97

MAG501D0609D01

SHIELD

Complete Shield Kit

1шт.
