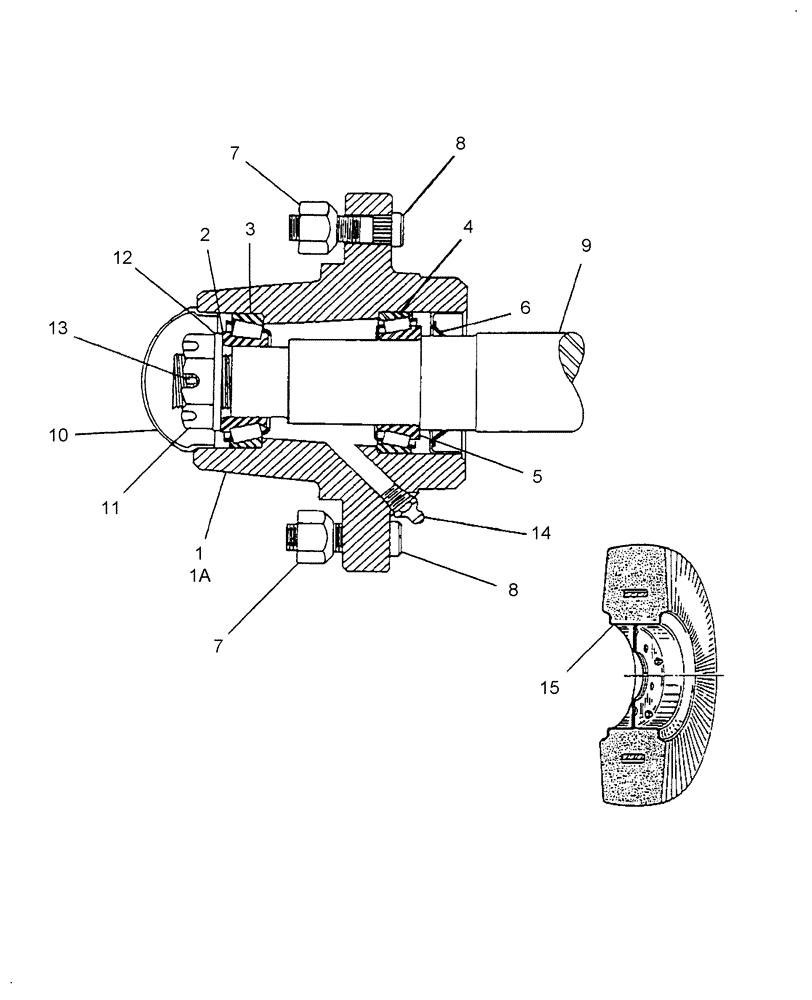

Запчасти Case IH 717721456 (017) - WHEEL HUB ASSEMBLY (11) - WHEELS

1

MAG415D0050D00

HUB

Less Spindle Includes: 1A-8,10-14

1шт.

1a

MAG415D0050D01

HUB

W/Races, Studs & Zerks

1шт.

2

MAG501D0219

BEARING CONE

Outside

1шт.

3

MAG501D0218

BEARING CUP

Outside

1шт.

4

MAG900D602406

BEARING CUP

Inside

1шт.

5

MAG900D602416

BEARING CONE

Inside

1шт.

6

MAG415D0050D03

SEAL

1шт.

7

MAG325D2122

NUT

5шт.

8

MAG325D2112

STUD

5шт.

9

MAG415D0051

SPINDLE

Single Wheel

1шт.

9

MAG415D0052

SPINDLE

Double Wheel

1шт.

10

MAG415D0050D05

DUST CAP

1шт.

11

MAG415D0050D02

SLOTTED NUT

1шт.

12

MAG415D0050D04

WASHER

1шт.

13

PL

PROCURE LOCALLY

Cotter Pin

1шт.

14

MAG423D1121

FITTING

Grease

1шт.

15

MAG103D211

WHEEL

Laminated 600x9

1шт.

16

MAG401D8812

TYRE/TIRE

Airplane Tire

1шт.
