(013) - STANDARD CUTTER - THREE CYLINDER HYDRAULIC CIRCUIT

Запчасти Case IH 717721456 (013) - STANDARD CUTTER - THREE CYLINDER HYDRAULIC CIRCUIT (07) - HYDRAULICS

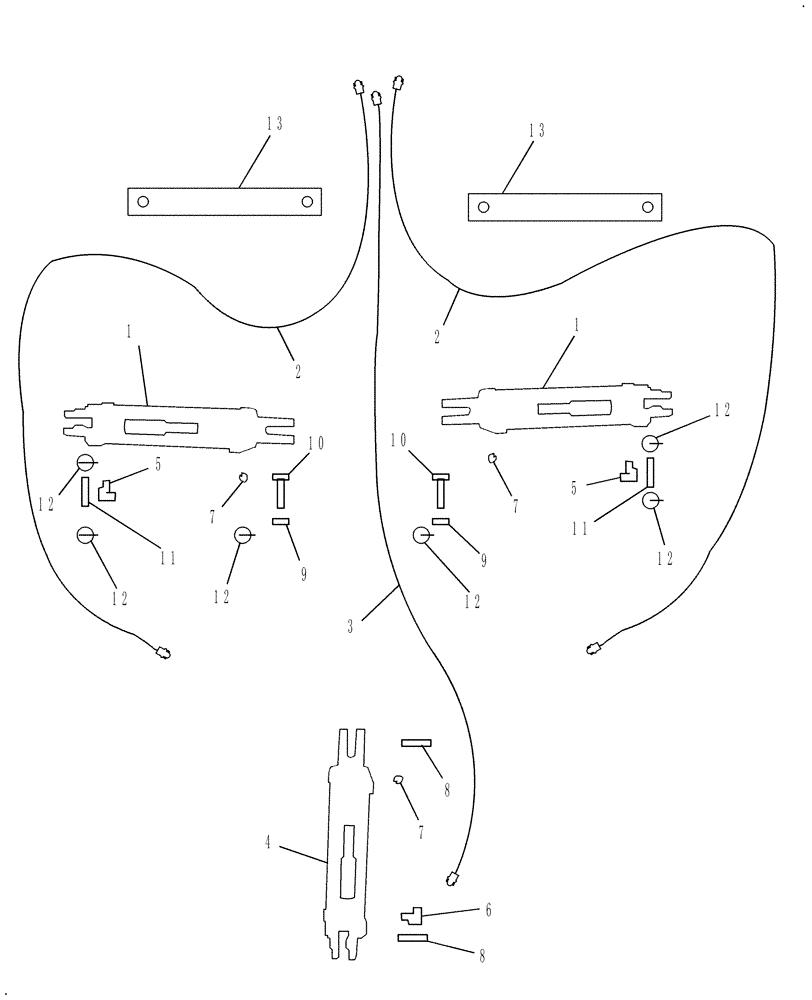

Схема запчастей Case IH 717721456 - (013) - STANDARD CUTTER - THREE CYLINDER HYDRAULIC CIRCUIT (07) - HYDRAULICS
6
12
5
12
1
7
4
9
8
3
12
13
7
1
9
2
13
2
12
10
12
8
10
5
11
12
11
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MAG415D0054

HYDRAULIC CYLINDER

Wing

2шт.

2

MAG415D0228

HYDRAULIC HOSE

228"

2шт.

3

MAG415D0041

HYDRAULIC HOSE

195"

1шт.

4

MAG415D1600

CYLINDER

Center Deck

1шт.

5

MAG800D0202

FITTING

90° Restrictor

2шт.

6

MAG800D0203

FITTING

90° Elbow

1шт.

7

MAG800D0205

PLUG

Breather Plug

3шт.

8

MAG261D700

PIN

Cylinder Pin

2шт.

9

MAG412D7975

WASHER

Flat

2шт.

10

MAG150D7104

CLEVIS PIN

Clevis Pin

2шт.

11

MAG150D6306

PIN

Cylinder Pin

2шт.

12

MAG412D1618

LINCH PIN

Linch Pin

6шт.

13

MAG116D1572

BAR

Transport Bar

2шт.

14

MAG283D46905

SEAL KIT

Seal Kit for Wing Cylinder

1шт.

Not Illustrated

1шт.

15

MAG263D46906

SEAL KIT

Seal Kit for Lift Cylinder

1шт.

Not Illustrated

1шт.
