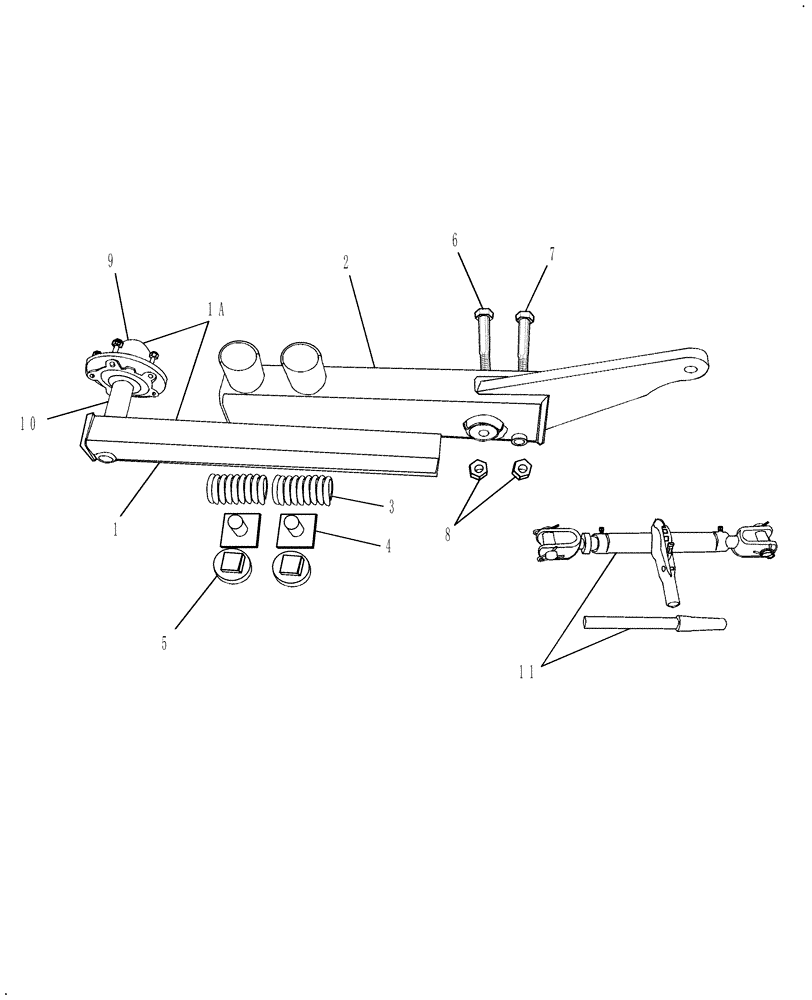

Запчасти Case IH 717721456 (008) - WING AXLE LEG - LEFT & RIGHT (04) - AXLE

1

MAG108D3030

AXLE SUPPORT

Wing, Leg & Spindle (No Hub)

1шт.

1a

MAG108D3030A

HUB

Leg & Spindle Includes: Ref. 9

1шт.

2

MAG108D2000

AXLE CARRIER

1шт.

3

MAG415D0025

COMPRESSION SPRING

1шт.

4

MAG108D7000

SPRING CUP

1шт.

5

MAG415D2001

PLUG

2шт.

6

MAG412D15477DG

BOLT

1" x 7" w/grease zerk

1шт.

7

MAG412D15479DG

BOLT

1" x 8" GR8

1шт.

7

MAG412D15481DG

BOLT

1" x 9" GR8

1шт.

8

MAG412D0068

LOCK NUT

Nylock Nut 1"

4шт.

9

MAG415D0050D00

HUB

2шт.

10

MAG415D0051

SPINDLE

Single

2шт.

11

MAG159D1542

RATCHET

Jack & Handle

1шт.

Not Used on 15', 1000 PTO

1шт.
