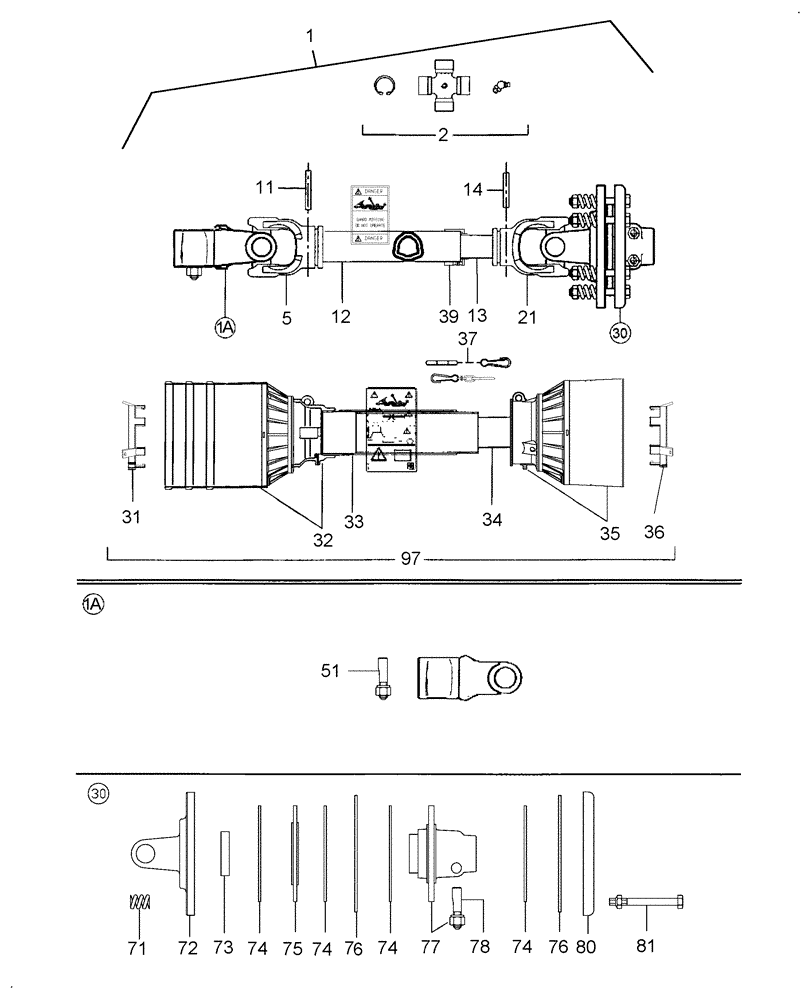

Запчасти Case IH 717721456 (019) - WING PTO (540 RPM) (01) - PTO DRIVE SHAFT

1

MAG415D1599D01

PTO

Wing PTO Includes: 2-97

1шт.

1a

MAG501D0559

YOKE

1 3/4" 20 Spline Taper Pin

1шт.

2

MAG501D0445

KIT

Cross

2шт.

5

MAG501D0447

YOKE

Outer Tube

1шт.

11

MAG501D0448

ROLL PIN

Flexible

2шт.

12

MAG501D1756

TUBE

Outer

1шт.

13

MAG501D1757

TUBE

Inner

1шт.

14

MAG501D0449

ROLL PIN

Flexible Roll Pin, Inner

1шт.

21

MAG501D0450

YOKE

Inner Tube

1шт.

30

MAG501D0548D01

HUB

1 3/4" 20 Spline

1шт.

31

MAG501D0434

BEARING WASHER

Bearing, Outer

1шт.

32

MAG501D0495

SHIELD

Cone, Outer

1шт.

33

MAG501D1758

OUTER SHIELD

Tube

1шт.

34

MAG501D1759

INNER SHIELD

Cone

1шт.

35

MAG501D0565

SHIELD

Cone, Inner

1шт.

36

MAG501D0435

BEARING WASHER

1шт.

37

MAG501D0114

CHAIN

Complete Shield

2шт.

39

MAG501D0498

COLLAR

Greasing

1шт.

51

MAG501D0531

KIT

Pin, Nut & Washer

1шт.

71

MAG501D0485

COIL SPRING

8шт.

72

MAG501D0555D01

YOKE

Flange

1шт.

73

MAG501D0487

BUSHING

1шт.

74

MAG501D0552D01

DISC

Friction Lining

4шт.

75

MAG501D0554D01

DRIVE PLATE

1шт.

76

MAG501D0551D01

PLATE

Inner

2шт.

77

MAG501D0560D03

HUB

Flnage, 1 3/4

1шт.

78

MAG501D0531

KIT

Pin, Nut & Washer

1шт.

80

MAG501D0550D01

PLATE

1шт.

81

MAG501D0549

BOLT AND NUT

Clutch

8шт.

97

MAG501D1777

SHIELD

1шт.
