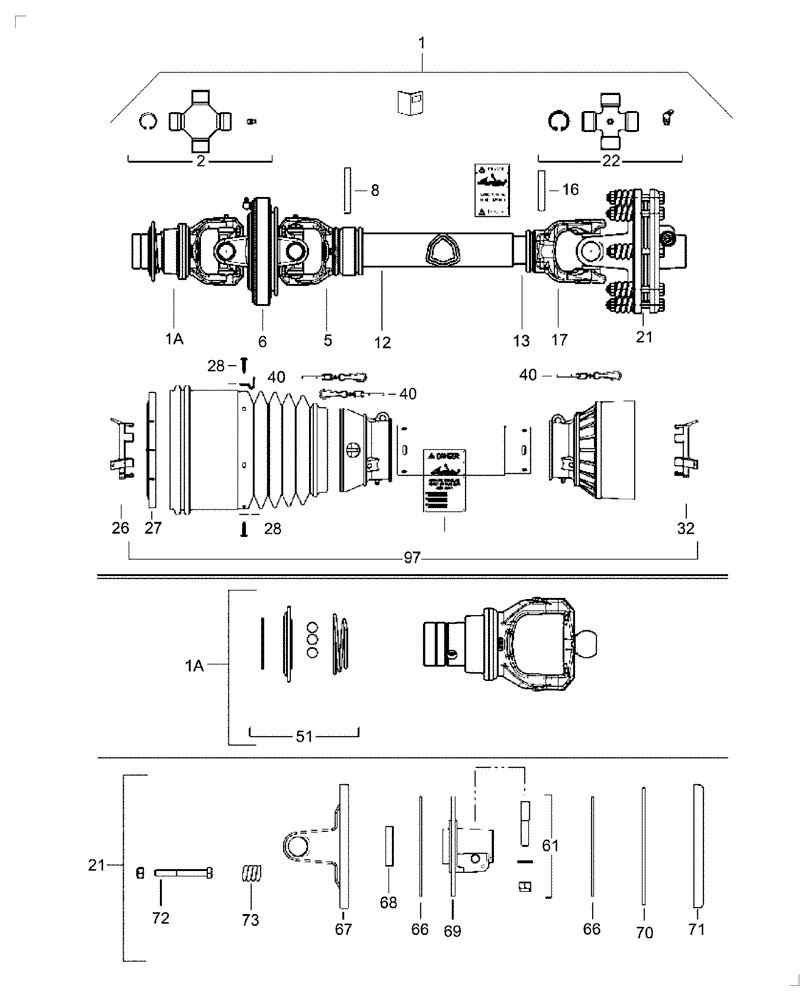

Запчасти Case IH 717721446 (032) - DRIVELINE

1

MAG401D0325D04

PTO

Includes: Ref. 1A-97

1шт.

1a

MAG501D0533D01

YOKE

80°CV 1-3/8" 6 Spline

1шт.

2

MAG501D0534D01

CROSS

Cross 80°

2шт.

5

MAG501D0536D01

YOKE

Outer, Yoke

1шт.

6

MAG501D0535D01

UNIVERSAL JOINT

Central

1шт.

8

MAG343D1505

ROLL PIN

Outer

1шт.

12

MAG501D0537

YOKE

Outer

1шт.

13

MAG501D0538

YOKE

Inner

1шт.

16

MAG343D1504

ROLL PIN

Inner

1шт.

17

MAG343D1306

YOKE

Inner Tube

1шт.

21

MAG501D0483D01

SLIP CLUTCH

Slip

1шт.

22

MAG343D1212

KIT

Cross, W/Grease Zerk

1шт.

26

MAG343D1979

PROTECTION PLATE

Shield, Outer

1шт.

27

MAG501D0542D01

SUPPORT

Shield 80°

1шт.

28

MAG501D0500

SELF-TAP SCREW

1шт.

32

MAG343D1980

PROTECTION PLATE

Support, Inner

1шт.

40

MAG501D0526

CHAIN

Shield

3шт.

51

MAG501D1102

KIT

Ball Collar

1шт.

61

MAG501D0484

TAPER PIN

W/Nut

1шт.

66

MAG501D0488D01

DISC

Friction

2шт.

67

MAG501D0486D01

YOKE

Lange

1шт.

68

MAG501D0487

BUSHING

Collar

1шт.

69

MAG501D0489D01

HUB

Clutch Hub

1шт.

70

MAG501D0490D01

PLATE

Inner

1шт.

71

MAG501D0491D01

CLUTCH, PRESSURE PLA

Pressure

1шт.

72

MAG501D0492

BOLT AND NUT

8шт.

73

MAG125D815

COIL SPRING

8шт.

97

MAG501D0574D01

KIT

Shield Kit

1шт.
