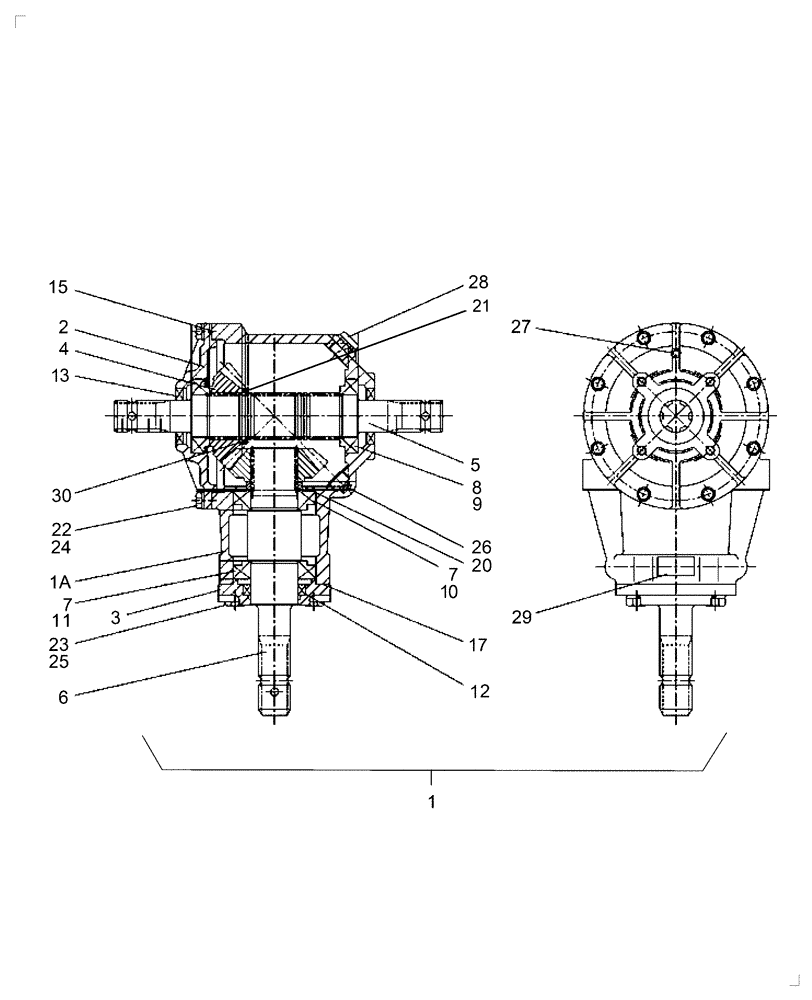

Запчасти Case IH 717721446 (021) - TRANSFER GEARBOX

1

MAG900D070101

GEARBOX

Transfer Includes: Ref. 1A-30

1шт.

1a

MAG501D0600D01

TRANSMISSION HOUSING

1шт.

2

MAG501D0915

CAP

1шт.

3

MAG501D0606

COVER

Input

1шт.

4

MAG501D0605

GEAR

Input, 17T

1шт.

5

MAG501D0603

PRIMARY SHAFT

1шт.

6

MAG501D0601D01

SHAFT

Input

1шт.

7

MAG501D0235

BEARING CONE

2шт.

8

MAG501D0240

BEARING CONE

2шт.

9

MAG501D0239

BEARING CUP

2шт.

10

MAG501D0274

BEARING CUP

1шт.

11

MAG501D0277

BEARING CUP

1шт.

12

MAG501D0232

SEAL

1шт.

13

MAG322D1213

SEAL

2шт.

14

MAG501D0243

GASKET

1шт.

17

MAG501D0249

GASKET

1шт.

20

MAG501D0602

SPACER

1шт.

21

MAG501D0287

SPACER

1шт.

22

PL

PROCURE LOCALLY

3/8"x1/4"

8шт.

23

PL

PROCURE LOCALLY

1/2"x1/2""

4шт.

24

PL

PROCURE LOCALLY

3/8'

8шт.

25

PL

PROCURE LOCALLY

Plug, 1/2" Pipe

4шт.

26

MAG501D0255

PLUG

1/2"

1шт.

27

MAG501D0254

PLUG

1/8"

1шт.

28

MAG501D0757

PLUG

Pressure Relief Plug, 1/2"

1шт.

30

MAG501D0245

RING

Retaining

1шт.
