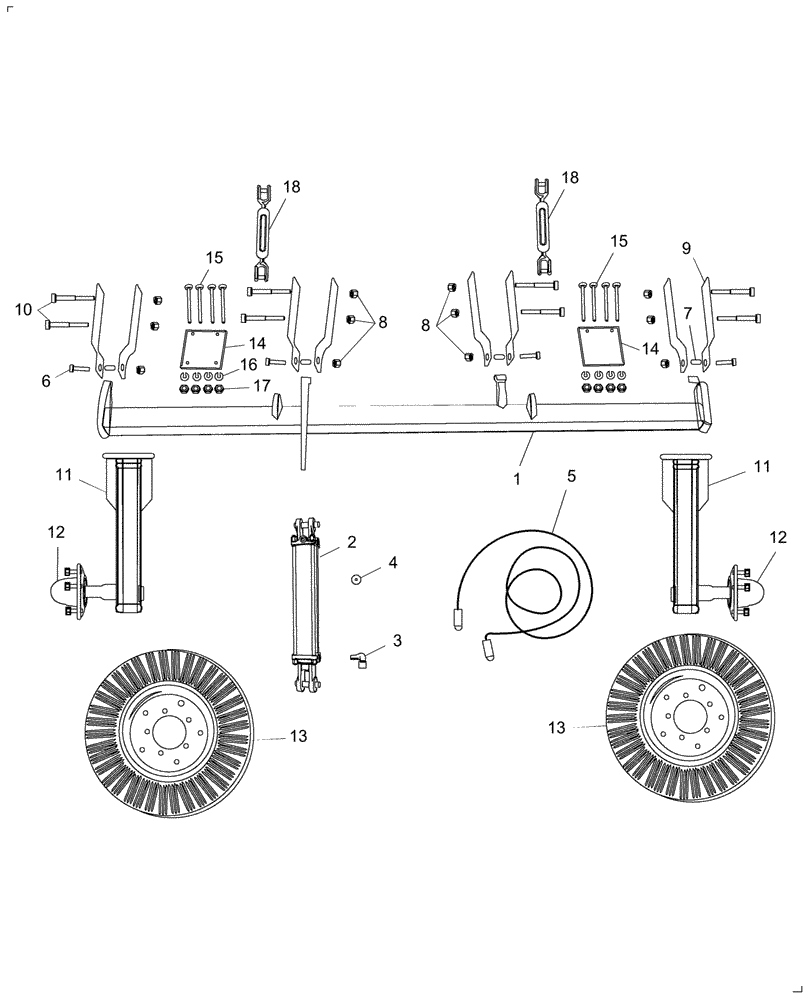

Запчасти Case IH 717721446 (004.02) - AXLE

1

MAG115D070073

AXLE

1шт.

2

MAG263D3288

HYDRAULIC CYLINDER

3"x8"

1шт.

2a

MAG263D46905

SEAL KIT

Kit, Seal 3"x8" Cylinder

1шт.

Not Illustrated

1шт.

3

MAG800D0203

FITTING

90°

1шт.

4

MAG97D2

BREATHER

1шт.

5

MAG415D0140

HYDRAULIC HOSE

3/8"x140"

1шт.

6

PL

PROCURE LOCALLY

Bolt, 3/4x3" GR5

4шт.

7

MAG412D5402

BUSHING

3/4"x1" Pipe

4шт.

8

PL

PROCURE LOCALLY

Nylock Nut, 3/4"

12шт.

9

MAG105D070071

MOUNT

8шт.

10

PL

PROCURE LOCALLY

Bolt, 3/4"x5" GR5

8шт.

11

MAG115D070057

ARM

2шт.

12

MAG415D0050D00

HUB

2шт.

13

MAG103D211

WHEEL

5 Hole

2шт.

14

MAG105D39032

PLATE

2шт.

15

PL

PROCURE LOCALLY

Bolt, 5/8" x 5-1/2" GR8

8шт.

16

PL

PROCURE LOCALLY

Lock Washer, 5/8"

8шт.

17

PL

PROCURE LOCALLY

Hex Nut, 5/8"

8шт.

18

MAG900D070059DJ

TURNBUCKLE

3/4"x6"

2шт.
