(004) - MAIN ASSEMBLY

Запчасти Case IH 717721446 (004) - MAIN ASSEMBLY

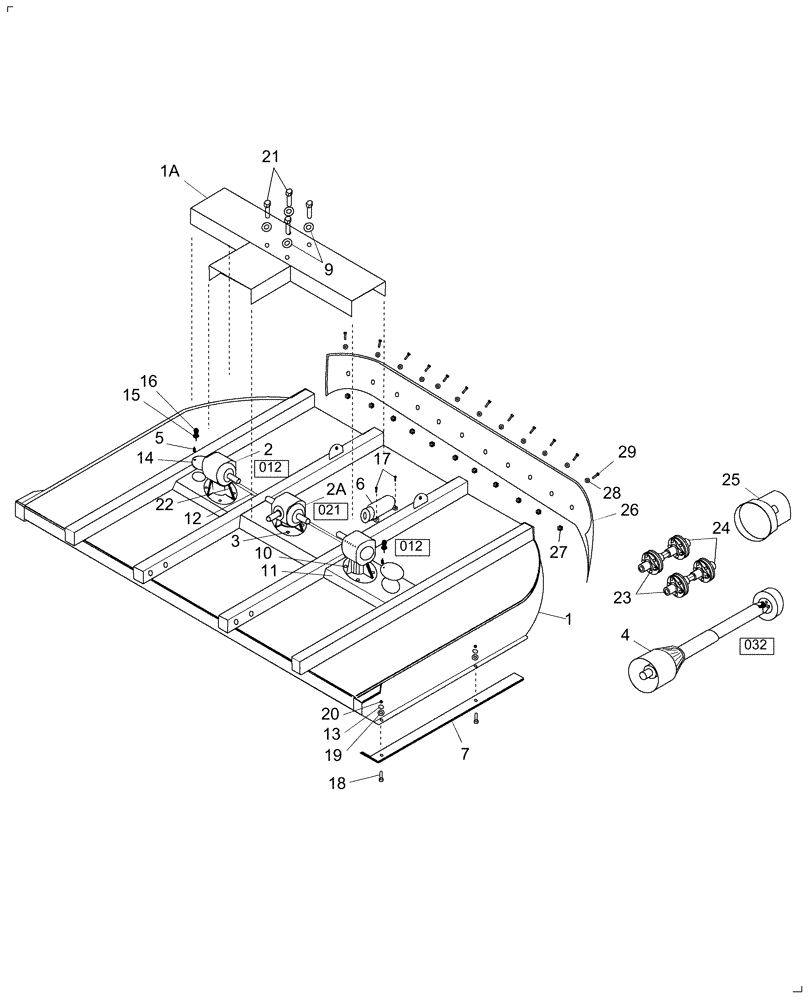

Схема запчастей Case IH 717721446 - (004) - MAIN ASSEMBLY
15
012
14
021
012
032
24
11
27
25
4
16
17
1
29
22
12
10
26
7
13
3
2
9
21
18
2a
20
23
1a
19
28
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CSE101D1001

HOUSING

Deck

1шт.

1a

MAG115D070025

SHIELD

1шт.

2

CSE401D0170

GEARBOX

2шт.

2a

MAG900D070101

GEARBOX

Transfer

1шт.

3

PL

PROCURE LOCALLY

Bolt, 5/8"x1-1/2" GR5

4шт.

4

MAG401D0325D04

PTO

W/Slip Clutch

1шт.

5

PL

PROCURE LOCALLY

Carriage Bolt, 1/2"x1-1/2" GR5

2шт.

6

MAG412D9099

RIGID TUBE

Manual Holder

1шт.

7

MAG108D6006

SKID/SHOE

Bolt On

2шт.

8

PL

PROCURE LOCALLY

Nylock Nut, 5/8"

2шт.

Not Illustrated

1шт.

9

PL

PROCURE LOCALLY

Flat Washer, 3/4"

4шт.

10

PL

PROCURE LOCALLY

Nylock Nut, 3/4"

8шт.

11

PL

PROCURE LOCALLY

Bolt, 3/4"x2-1/2" GR5

8шт.

12

PL

PROCURE LOCALLY

Nylock Nut, 5/16"

4шт.

13

PL

PROCURE LOCALLY

Flat Washer, 3/8"

6шт.

14

MAG116D1655

COVER PLATE

2шт.

15

PL

PROCURE LOCALLY

Lock Washer, 1/2"

2шт.

16

PL

PROCURE LOCALLY

Hex, 1/2"

2шт.

17

MAG412D31823

SELF-TAP SCREW

1/4"x1"

2шт.

18

MAG412D03229

PLOW BOLT

3/8"x1-1/12" GR5

6шт.

19

MAG412D0072D01

WASHER

1/2"

6шт.

20

PL

PROCURE LOCALLY

Nylock Nut, 3/8"

6шт.

21

PL

PROCURE LOCALLY

Bolt, 5/8"x1-3/4" GR5

4шт.

22

PL

PROCURE LOCALLY

Bolt, 5/16"x3" GR8

4шт.

23

MAG401D0323

PTO SHAFT

Shock W/Stub Shaft

2шт.

24

MAG401D0324

PTO SHAFT

Shock W/Stub Shaft

2шт.

25

MAG415D0007

SHIELD

Cone

1шт.

26

MAG104D1907

GUARD

Rear Rubber Safety

1шт.

27

MAG412D0058

NUT

Hex, 1/2"

11шт.

28

MAG412D0072D01

WASHER

Flat, 1/2"

11шт.

29

MAG412D7250

BOLT

1/2"x1"

11шт.
