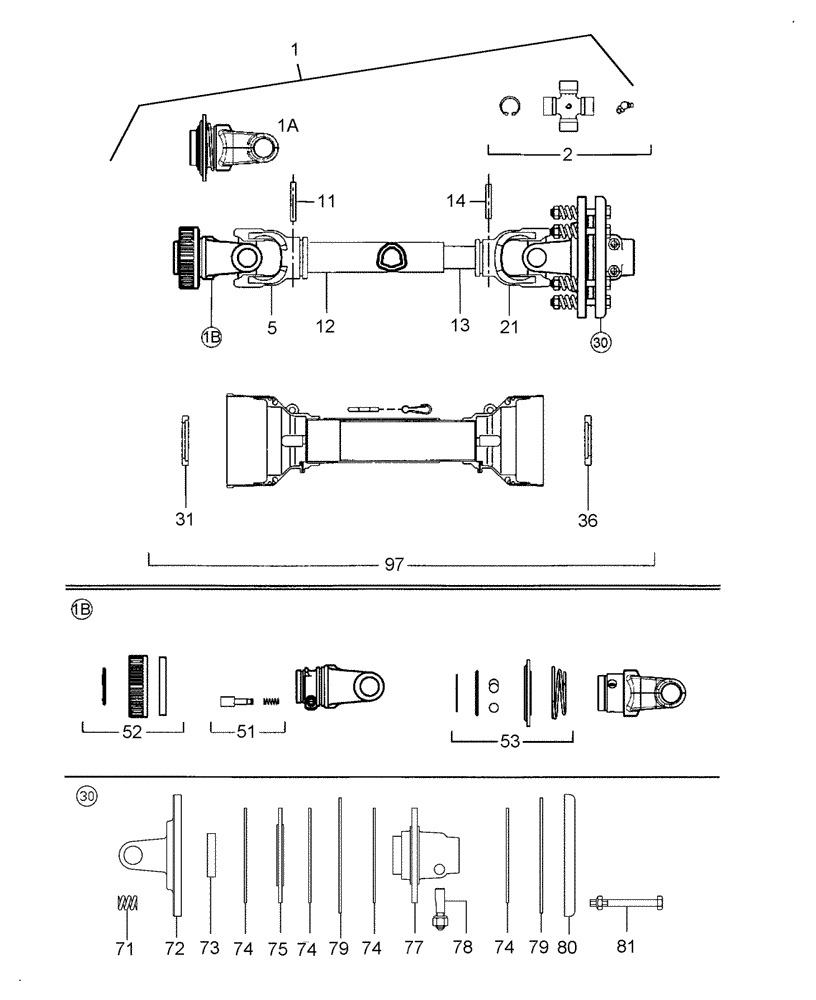

Запчасти Case IH 717721426 (031) - DRIVELINE

1

MAG401D0317D02

PTO

Includes: 1A-97

1шт.

1a

MAG501D1101

YOKE

#6/s7 1-3/8" z6 ball

1шт.

1b

MAG343D1137

YOKE

#6/s7 1-3/8" z6 twisted lock

1шт.

2

MAG343D1212

KIT

Cross Journal

2шт.

5

MAG343D1706

YOKE

#6 Outer Tube

1шт.

11

MAG343D1505

ROLL PIN

Flexible #6/7 outer 10x75mm

1шт.

12

MAG501D1103

TUBE

Drive tube #6 outer L=715mm

1шт.

13

MAG501D1104

TUBE

Cardan Drive Tube #6 inner L=715

1шт.

14

MAG343D1504

ROLL PIN

Flexible Roll Pin #6/7 inner 10x65mm

1шт.

21

MAG343D1306

YOKE

#6 Inner Tube

1шт.

30

MAG501D0547

SLIP CLUTCH

1 3/8" - 6z

1шт.

31

MAG343D1979

PROTECTION PLATE

Outer Bearing

1шт.

36

MAG343D1980

PROTECTION PLATE

Inner Bearing

1шт.

51

MAG343D1931

PIN

Complete Push Button

1шт.

52

MAG240002461

KIT

Twist Collar

1шт.

53

MAG501D1102

KIT

Ball Collar, 1-3/8"

1шт.

71

MAG125D815

COIL SPRING

2шт.

72

MAG501D0555

YOKE

Flange

1шт.

73

MAG501D0487

BUSHING

1шт.

74

MAG125D811

DISC

Friction

2шт.

75

MAG501D0554

PLATE

Lining

1шт.

77

MAG501D0548

HUB

1шт.

78

MAG501D0484

TAPER PIN

1шт.

79

MAG501D0551

PLATE

Inner

1шт.

80

MAG501D0550

CLUTCH, PRESSURE PLA

1шт.

81

MAG501D0549

BOLT AND NUT

8шт.

97

MAG083E06160SC

KIT

Safety Guard

1шт.
