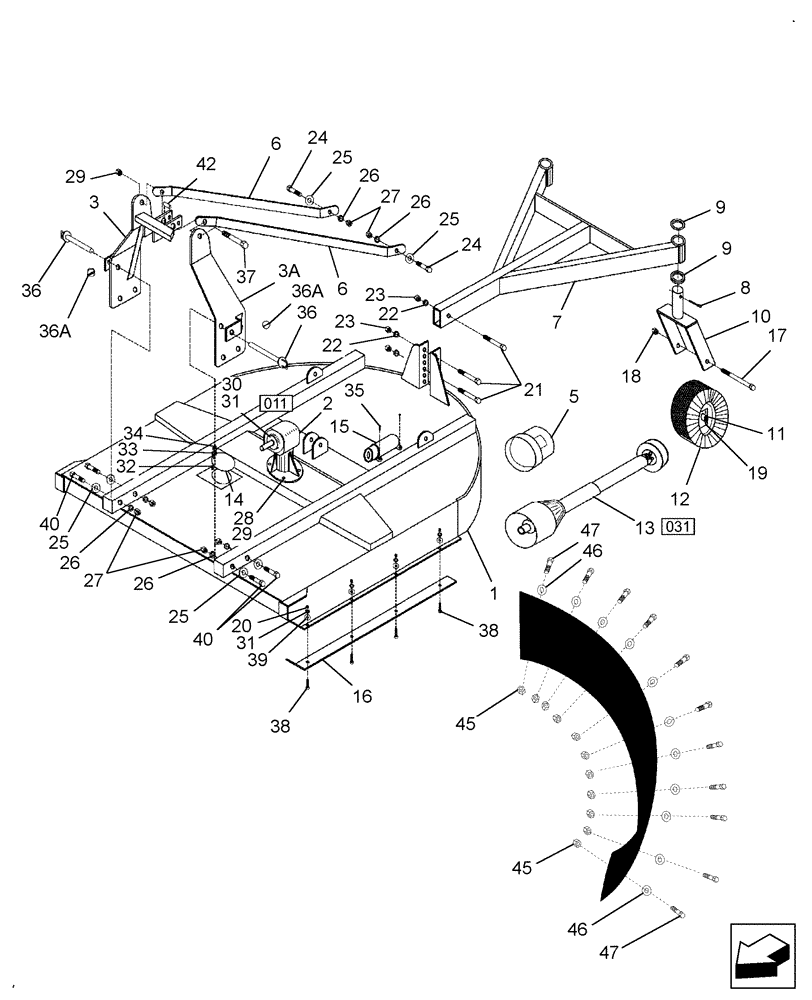

Запчасти Case IH 717721426 (002) - MAIN ASSEMBLY

1

CSE101D3639

HOUSING

Deck

1шт.

2

MAG401D0228

GEARBOX

1шт.

3

MAG105D1023DL

FRAME

Left

1шт.

3a

MAG105D1023DR

FRAME

Right

1шт.

4

MAG101D1002

SWIVEL HITCH HEAD TR

1шт.

5

MAG415D0007

SHIELD

Gearbox

1шт.

6

MAG116D1025

ARM

Stiff

2шт.

7

MAG101D7124

YOKE

Tailwheel Boom

1шт.

8

MAG412D0081

COTTER PIN

3/8" x 3 1/2"

2шт.

9

MAG101D7552

SPACER

Tailwheel Yoke

4шт.

10

MAG116D6487D01

FORK

Tailwheel

2шт.

11

MAG900D1444A

HUB

Tailwheel

2шт.

12

MAG103D209

WHEEL

Laminated 4x8

2шт.

13

MAG401D0317D02

PTO

Complete

1шт.

14

MAG116D1655

COVER PLATE

Inspection

1шт.

15

MAG412D9099

RIGID TUBE

Owner Manual Holder

1шт.

16

MAG108D6065

SKID/SHOE

Bolt On, 758GC

2шт.

17

MAG412D5283

BOLT

5/8" x 7 1/2" Gr5

1шт.

18

MAG412D5284

LOCK NUT

5/8"

1шт.

19

MAG512D0650

SCREW

1/2" x 1" Gr 5 Fine

4шт.

20

MAG412D0657

NUT

Hex

8шт.

21

MAG101D1022

BOLT

Flex Hitch Spacer

1шт.

23

MAG412D0059

NUT

5/8"

3шт.

24

PL

PROCURE LOCALLY

Bolt, 3/4" x 2" Gr5

2шт.

25

MAG412D0077

WASHER

Flat, 3/4"

7шт.

26

MAG412D0074

LOCK WASHER

3/4"

6шт.

27

MAG412D0061

NUT

Hex, 3/4"

6шт.

28

MAG412D0031

BOLT

3/4" x 2 1/2" Gr 5

4шт.

29

MAG412D0060

LOCK NUT

3/4"

5шт.

30

PL

PROCURE LOCALLY

Bolt, 5/16"x1 1/2" Gr 5

4шт.

31

MAG412D0075

WASHER

3/8"

8шт.

32

MAG512D6769

CARRIAGE BOLT

1/2" x 1 1/2" Gr 5

1шт.

33

MAG412D0072

LOCK WASHER

1/2"

1шт.

34

MAG412D0058

NUT

Hex, 1/2"

1шт.

35

PL

PROCURE LOCALLY

Elf Tap Screw, 1/4" x 3/4"

2шт.

36

MAG155D2008

HITCH PIN

1 1/8"x8 1/2" Cat II

2шт.

36a

MAG412D1600

LINCH PIN

2шт.

37

PL

PROCURE LOCALLY

Bolt, 3/4" x 6" Gr 2

1шт.

38

MAG412D03229

PLOW BOLT

3/8" x 1 1/2" Gr 5

8шт.

39

MAG412D0072D01

WASHER

Flat, 1/2"

8шт.

40

MAG412D0657

NUT

Hex

8шт.

43

MAG104D1907

GUARD

Rear Rubber Safety

1шт.

42

MAG412D7250

BOLT

1/2" x 1"

11шт.

43

MAG412D0058

NUT

Hex, 1/2"

11шт.

44

MAG412D0072D01

WASHER

Flat, 1/2"

11шт.
