Запчасти Case IH 717721366 (003) - SHEAR PIN DRIVELINE (00) - COMPLETE MACHINE

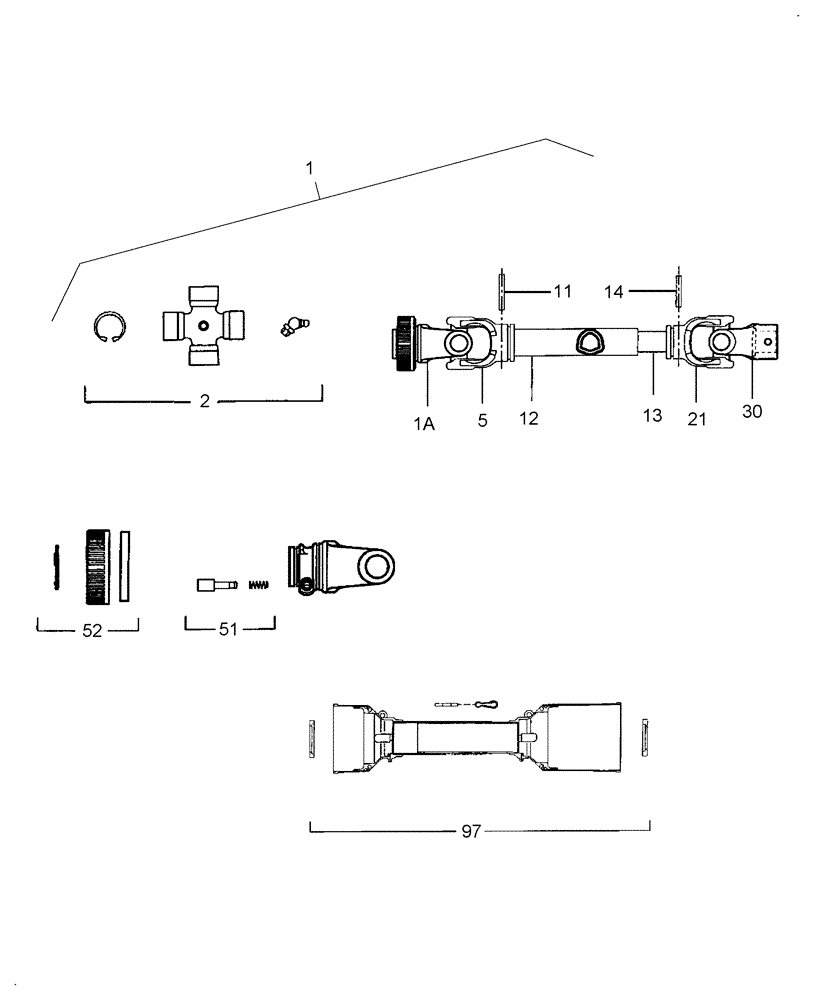

Схема запчастей Case IH 717721366 - (003) - SHEAR PIN DRIVELINE (00) - COMPLETE MACHINE
11
14
13
5
97
12
21
51
30
1
2
1a
52

Артикул

Название

Примечание

Количество

1

MAG343D134

PTO

Complete Includes: Ref. 1A-97, RC480

1шт.

1

MAG343D135

PTO

Complete Includes: Ref. 1A-97, RC600

1шт.

1

MAG401D0306D6

PTO

Complete Includes: Ref. 1A-97, RC720

1шт.

1a

MAG343D1133

YOKE

1-3/8-6Z Twist Collar

1шт.

2

MAG343D1211

KIT

Cross

1шт.

5

MAG343D1704

KIT

Outer Tube

2шт.

11

MAG343D1502

ROLL PIN

1шт.

12

MAG501D0120

TUBE

Outer, RC480

1шт.

12

MAG501D0384

TUBE

Outer, RC600

1шт.

12

MAG501D0110

TUBE

Outer, RC720

1шт.

13

MAG501D0121

TUBE

Inner, RC480

1шт.

13

MAG501D0385

TUBE

Inner, RC600

1шт.

13

MAG501D0111

TUBE

Inner, RC720

1шт.

14

MAG341048000

ROLL PIN

1шт.

21

MAG343D1304

YOKE

Inner Tube

1шт.

30

MAG343D1857

YOKE

Shear Pin

1шт.

51

MAG343D1931

PIN

QD Kit

1шт.

52

MAG240002451

KIT

RS Collar

1шт.

97

MAG083B04120L

KIT

Safety Guard Kit B4 (Cut to desired length)

1шт.

Выбрано товаров: 19
