Запчасти Case IH 717721366 (001) - MAIN ASSEMBLY (00) - COMPLETE MACHINE

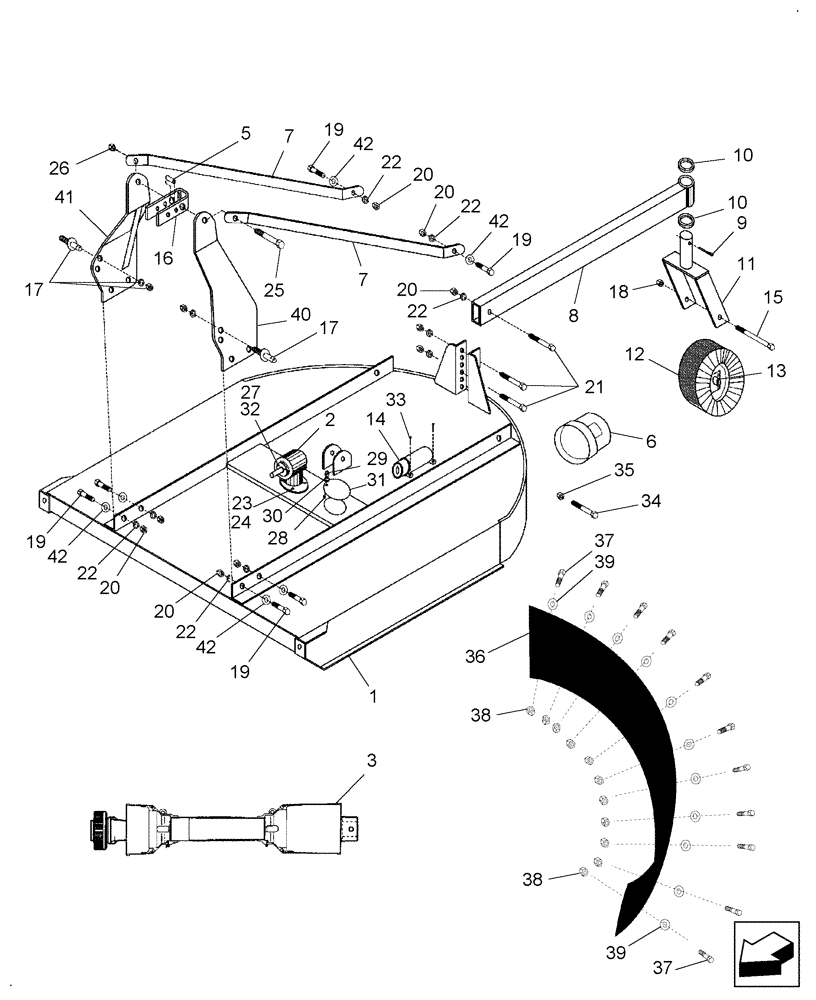

Схема запчастей Case IH 717721366 - (001) - MAIN ASSEMBLY (00) - COMPLETE MACHINE
10
32
41
3
28
21
39
13
38
22
20
26
15
19
19
31
35
20
27
19
1
40
7
42
42
20
22
18
29
37
37
5
42
8
22
34
36
16
24
39
14
2
20
10
42
19
12
25
20
30
17
9
22
33
22
11
17
38
7
6
23

Артикул

Название

Примечание

Количество

1

CSE101D0004

HOUSING

Deck, RC480

1шт.

1

CSE101D0005

HOUSING

Deck, RC600

1шт.

1

CSE101D0006

HOUSING

Deck, RC720

1шт.

2

MAG401D0007D01

GEARBOX

RC480, RC600

1шт.

2

MAG401D0007

GEARBOX

RC720

1шт.

3

MAG343D134

PTO

Complete, RC480

1шт.

3

MAG343D135

PTO

Complete, RC600

1шт.

3

MAG401D0306D6

PTO

Complete, RC720

1шт.

5

MAG115D7135

SPACER

A-Frame

1шт.

6

MAG900D0003

SHIELD

Safety

1шт.

7

MAG116D1025

ARM

Stiff

2шт.

8

MAG101D8015

ARM

Tailwheel Boom, RC480

1шт.

8

MAG116D1030

ARM

Tailwheel Boom, RC600

1шт.

8

MAG101D7127

ARM

Tailwheel Boom, RC720

1шт.

9

MAG412D0081

COTTER PIN

3/8" X 3 1/2"

1шт.

10

MAG101D7552

SPACER

Tailwheel

1шт.

11

MAG116D6487D01

FORK

Tailwheel

1шт.

12

MAG103D209

WHEEL

Tailwheel, 4x8

1шт.

13

MAG900D1836

HUB

5/8, RC480, RC600

1шт.

13

MAG900D1444A

HUB

Cast Tailwheel, RC720

1шт.

14

MAG412D9099

RIGID TUBE

Owner Manual Holder

1шт.

15

MAG412D5283

BOLT

5/8" x 7 1/2" GR5

1шт.

16

MAG115D7134

U-BRACKET

Pivot Hitch

1шт.

17

MAG150D10

PIN

Cat 1 Lift w/nut & lockwasher

2шт.

18

MAG412D5284

LOCK NUT

5/8

1шт.

19

MAG412D0023

BOLT

Bolt, 5/8 x 2 Gr. 2

6шт.

20

MAG412D0059

NUT

Hex, 5/8"

9шт.

21

PL

PROCURE LOCALLY

Bolt, 5/8 x 4 Gr. 2

3шт.

22

MAG412D0073

LOCK WASHER

5/8"

9шт.

23

MAG412D0023D02

BOLT

5/8" x 2 Gr 5

4шт.

24

MAG412D5284

LOCK NUT

5/8"

4шт.

25

PL

PROCURE LOCALLY

Bolt, 3/4 x 6 Gr. 2

1шт.

26

MAG412D0060

LOCK NUT

3/4"

1шт.

27

MAG412D2003

BOLT

5/16" x 1/2" Gr 5

4шт.

28

PL

PROCURE LOCALLY

1/2" x 1 1/2" Gr 5

1шт.

29

MAG412D0058

NUT

Hex, 1/2"

1шт.

30

MAG412D0072

LOCK WASHER

1/2"

1шт.

31

MAG116D1655

COVER PLATE

Inspection

1шт.

32

MAG412D0075

WASHER

Flat, 3/8"

4шт.

33

MAG412D31823

SELF-TAP SCREW

1/4" x 1

2шт.

34

PL

PROCURE LOCALLY

Bolt, 1/2" x 3 1/4" GR 2, Shear Used in Gearbox Input Shaft

1шт.

35

MAG412D3243

LOCK NUT

1/2"

1шт.

36

MAG104D1907

GUARD

Rear Rubber Safety

1шт.

37

MAG412D7250

BOLT

1/2" x 1"

11шт.

38

MAG412D0058

NUT

1/2"

11шт.

39

MAG412D0072D01

WASHER

Flat 1/2"

11шт.

40

MAG105D4010DL

BOARD

A-Frame, Left, RC480

1шт.

40

MAG105D7010DL

FRAME

A-Frame, Left, RC600, RC720

1шт.

41

MAG105D4010DR

BOARD

A-Frame, Right, RC480

1шт.

41

MAG105D7010DR

FRAME

A-Frame, Right, RC600, RC720

1шт.

42

MAG412D0076

WASHER

Flat, 5/8"

4шт.

43

MAG101D3590

GUARD

Chain, Front, RC480

1шт.

Not Illustrated

1шт.

43

MAG101D6798

GUARD

Chain, Front, RC600

1шт.

Not Illustrated

1шт.

43

MAG101D1598

GUARD

Chain, Front, RC720

1шт.

Not Illustrated

1шт.

44

MAG101D3591

GUARD

Chain, Rear, RC480

1шт.

Not Illustrated

1шт.

44

MAG101D6799

GUARD

Chain, Rear, RC600

1шт.

Not Illustrated

1шт.

44

MAG101D1599

GUARD

Chain, Rear, RC720

1шт.

Not Illustrated

1шт.

Выбрано товаров: 63
