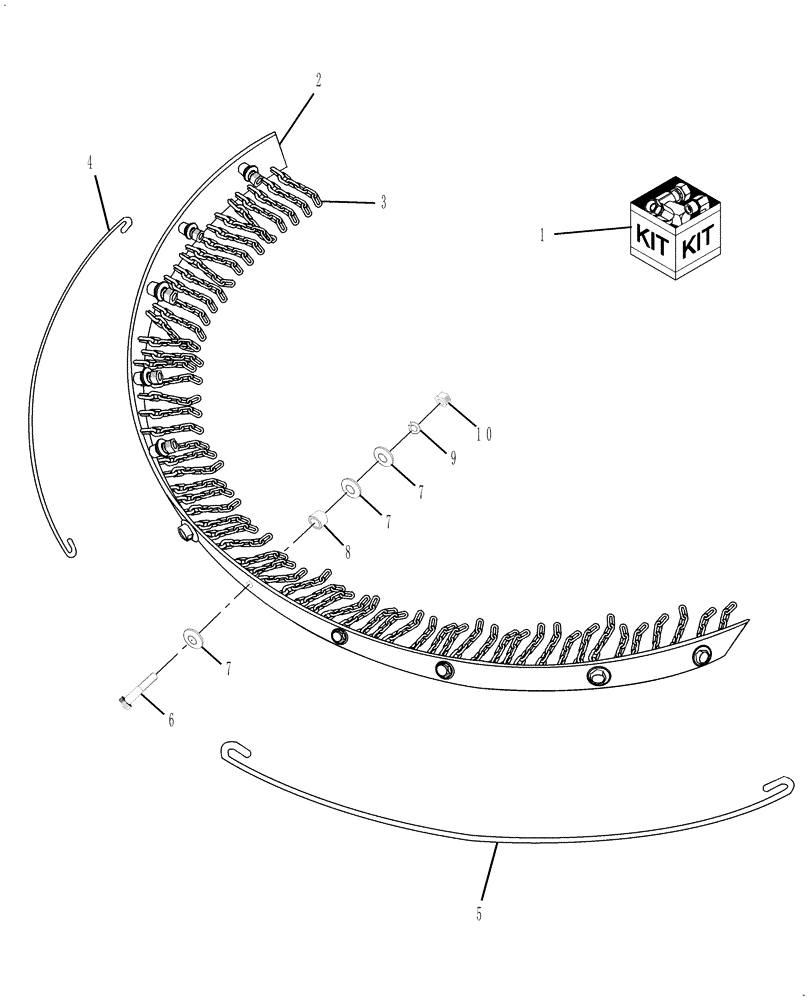

Запчасти Case IH 717721346 (013) - 5 REAR CHAIN GUARD KIT - MAG010D6799

1

MAG010D6799

KIT

4' Rear Chain Guard Includes: Ref. 2-9

1шт.

2

MAG101D6098

SUPPORT

Chain Guard

1шт.

3

MAG412D6298D6L

CHAIN

1/4", 6 Link

60шт.

4

MAG415D114X78RD

ROD

78" Long

1шт.

5

MAG415D114X23RD

ROD

23" Long

1шт.

6

PL

PROCURE LOCALLY

Bolt, 1/2"x2.5" GR5

11шт.

7

PL

PROCURE LOCALLY

Flat Washer, 1/2" Plated

33шт.

8

MAG412D5405

SPACER

11шт.

9

PL

PROCURE LOCALLY

Lock Washer, 1/2" Plated

11шт.

10

PL

PROCURE LOCALLY

Nut, 1/2"x13 Plated

11шт.
