Запчасти Case IH 716417046 (016) - GEARBOX COMPONENTS - MWX54S, MWX60S (CLASS 1) & MWX60R

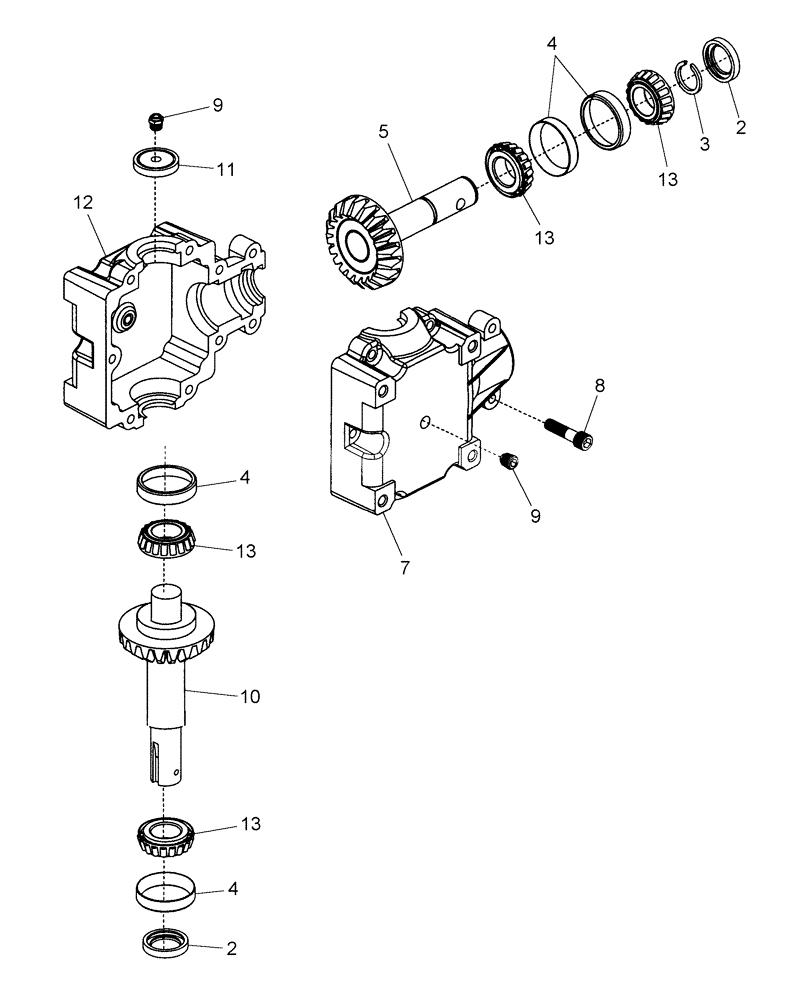

Схема запчастей Case IH 716417046 - (016) - GEARBOX COMPONENTS - MWX54S, MWX60S (CLASS 1) & MWX60R
2
10
5
9
4
13
13
4
9
13
4
13
7
11
3
8
12
2

Артикул

Название

Примечание

Количество

1

CSE162168

GEARBOX

Assy., 54"

1шт.

1

CSE162131

GEARBOX ASSY

., 60"

1шт.

1

84279411R

REMAN-GEARBOX

Reman for new P/N CSE162131

1шт.

1

84279411C

CORE-GEARBOX

Return Number

1шт.

2

AUB141170

SEAL

Oil

2шт.

3

AUB141180

SNAP RING

Ring, Retaining

1шт.

4

132709

BEARING CUP,50.29mm OD x 10.67mm W

Cup, Bearing

4шт.

5

AUB162356

DRIVE PINION

Shaft & Gear, Pinion (Input), 54"

1шт.

5

AUB162137

SHAFT

& Gear, Pinion (Input), 60"

1шт.

6

AUB162032

BREATHER

Vent, 15 PSI

1шт.

7

AUB161390

HOUSING

Half, Thru Holes

1шт.

8

AUB968019

BOLT

3/8"-16 x 1-1/2" Socket Head

9шт.

9

AUB141200

PLUG

Pipe Plug, 1/4 NPT - Fill & Check

2шт.

10

AUB162357

SHAFT

& Gear, Cross (Output), 54"

1шт.

10

AUB162138

SHAFT

& Gear, Cross (Output), 60"

1шт.

11

AUB164050

CAP

Plug, End, Rubber

1шт.

12

AUB161389

HOUSING

Half, Threaded

1шт.

13

132710

BEARING CONE,25.4mm ID x 14.73mm W

Cone, Bearing

4шт.

Выбрано товаров: 18
