Запчасти Case IH 716417046 (006) - PULLEYS & BLADES - MWX54S, MWX60S, MW60S (CLASS 1) & MWX60R

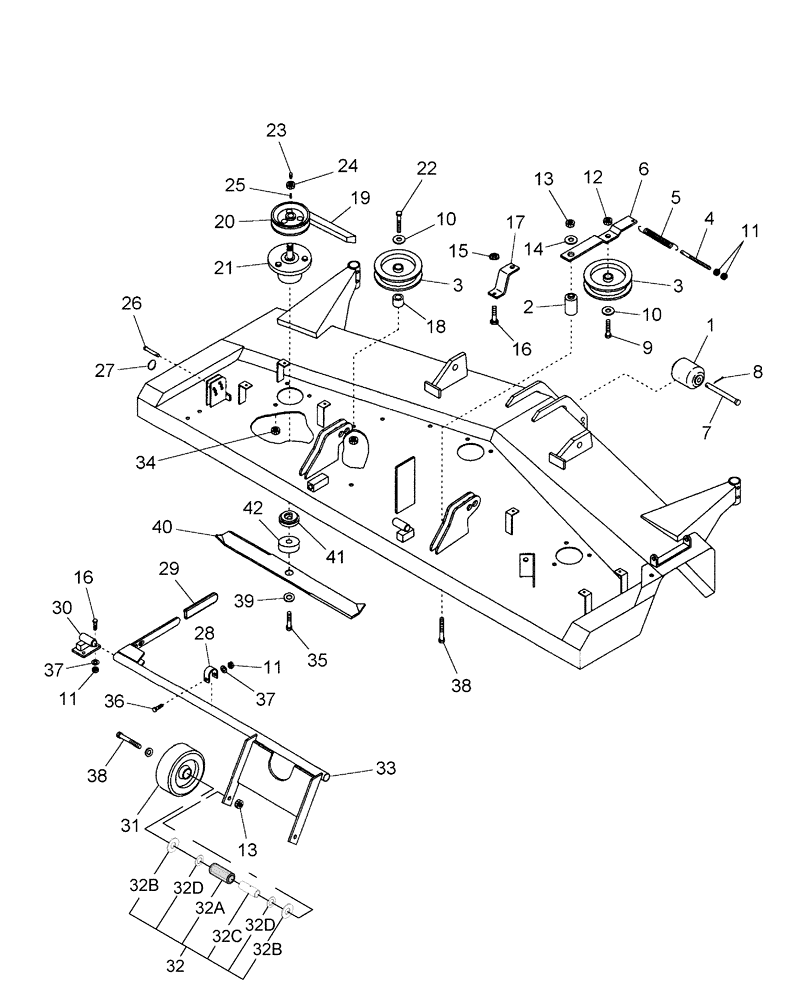

Схема запчастей Case IH 716417046 - (006) - PULLEYS & BLADES - MWX54S, MWX60S, MW60S (CLASS 1) & MWX60R
2
31
1
9
33
22
29
38
17
4
32
13
12
32b
5
42
14
3
6
32c
11
41
37
39
32a
18
32d
21
37
30
11
32b
27
35
15
8
23
26
13
10
32d
16
38
25
24
3
36
28
19
40
10
20
11
34
16
7

Артикул

Название

Примечание

Количество

1

AUB161573

ROLLER

Anti-Scalp

1шт.

2

AUB162803

SPACER

Belt Tension Arm

1шт.

3

CSE162146

PULLEY

Idler

2шт.

4

AUB121804

ROD

Belt Adjustment

1шт.

5

AUB162801

SPRING

Tension

1шт.

6

CSE162370

ARM

Belt Tension

1шт.

7

AUB967064

PIN,12.6mm OD x 131.06mm L

Clevis, 1/2" x 5"

1шт.

8

AUB962019

COTTER PIN

Pin, Split Cotter, 1/8" x 1-1/2"

1шт.

9

AUB960156

BOLT

Screw, Cap, HH, G5, 5/8"-11 x 1-3/4"

1шт.

10

AUB960705

WASHER

5/8"

2шт.

11

AUB960502

NUT

G5, 3/8"-16

5шт.

12

AUB964032

NUT

Nut, Lock, GC, 5/8"-11

2шт.

13

AUB964000

NUT

Lock, GC, 1/2"-13

3шт.

14

AUB960704

WASHER

1/2"

3шт.

15

AUB960602

WASHER

Washer, Lock, 3/8-16

1шт.

16

AUB960046

BOLT

Screw, Cap, HH, G5, 3/8"-16 x 1"

3шт.

17

CSE162802

BRACE

Bracket, Idler, 60"

1шт.

18

AUB03997451

SPACER

Fixed Idler

1шт.

19

605529

V-BELT,17.00 mm W x 3730.00 mm L

54" 17.00 mm W x 3730.00 mm L

1шт.

19

AUB161355

V-BELT

Belt, 60", Effective Length 159.8"

1шт.

20

CSE144579

PULLEY

Mower Spindle

3шт.

21

CSE162260

SPINDLE

Assy., with Pulley

3шт.

22

AUB960160

BOLT

Screw, Cap, HH, G5, 5/8"-11 x 2-3/4"

1шт.

23

AUB959995

LUBE NIPPLE

Nipple, Lube, Straight, 1/4"-28

2шт.

23

AUB221302

LUBE NIPPLE

Nipple, Lube, 1/4-28 - 90 Degree

1шт.

24

AUB964024

LOCK NUT

Nut, Lock, GC, 3/4"-16

3шт.

25

277124

KEY

Square, 1/4" x 7/8"

3шт.

26

86551409

PIN

Clevis, 3/8" x 2-1/8"

1шт.

27

AUB967057

RING

Wire

1шт.

28

CSE162270

CLAMP

U-Clamp

1шт.

29

AUB105593

KNOB

Grip, Rear HOC Handle

1шт.

30

CSE160594

BRACKET

Ear, Rear HOC Adjustment Bar

1шт.

31

AUB121712

WHEEL BEARING KIT

Wheel & Bearing Assy., Rear, Includes: Ref. 14

2шт.

32

AUB121865

BEARING ASSY

Kit, Wheel Bearing Includes: Ref. 32A-32D

1шт.

32a

NSS

NOT SOLD SEPARAT

Bearing

1шт.

32b

NSS

NOT SOLD SEPARAT

Thrust Washer

2шт.

32c

NSS

NOT SOLD SEPARAT

Spanner

1шт.

32d

NSS

NOT SOLD SEPARAT

Seal-Retainer

2шт.

33

CSE162154

ANGLE BAR

Bar, Rear HOC, 54"

1шт.

33

CSE161855

BAR

Rear HOC, 60"SD

1шт.

33

CSE162620

ANGLE BAR

Bar, Rear HOC, 60" RD

1шт.

34

AUB964005

NUT

G5, 7/16"-20

9шт.

35

AUB967187

BOLT

9/16"-12x1-3/4", "Grade 8", 60" Rear Discharge & 54 Side Discharge

3шт.

35

9602224

BOLT,Hex, 9/16" x 2 1/4", Gr 8

9/16"-12x2-1/4", Grade 8, 60" Side Discharge

3шт.

36

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

Cap, HH, G5, 3/8"-16 x 2-1/4"

1шт.

37

AUB960602

WASHER

Washer, Lock, 3/8"

3шт.

38

AUB960122

BOLT,1/2" - 13 x 3.50", Gr 5

Screw, Cap, HH, G5, 1/2"-13 x 3-1/2"

3шт.

39

AUB162284

SPACER,14.27mm ID x 22.23mm OD x 9.53mm L

Blade, Spacer

3шт.

40

AUB162285

TILLAGE BLADE

Blade, Cutting, 54"

3шт.

40

AUB164210

BLADE

Cutting, 60"

3шт.

41

AUB162779

SPACER

Spindle

3шт.

42

AUB164204

SPACER

Blade, 60" Side Discharge Only

3шт.

Выбрано товаров: 52
