Запчасти Case IH 716417046 (001) - DECK COMPONENTS

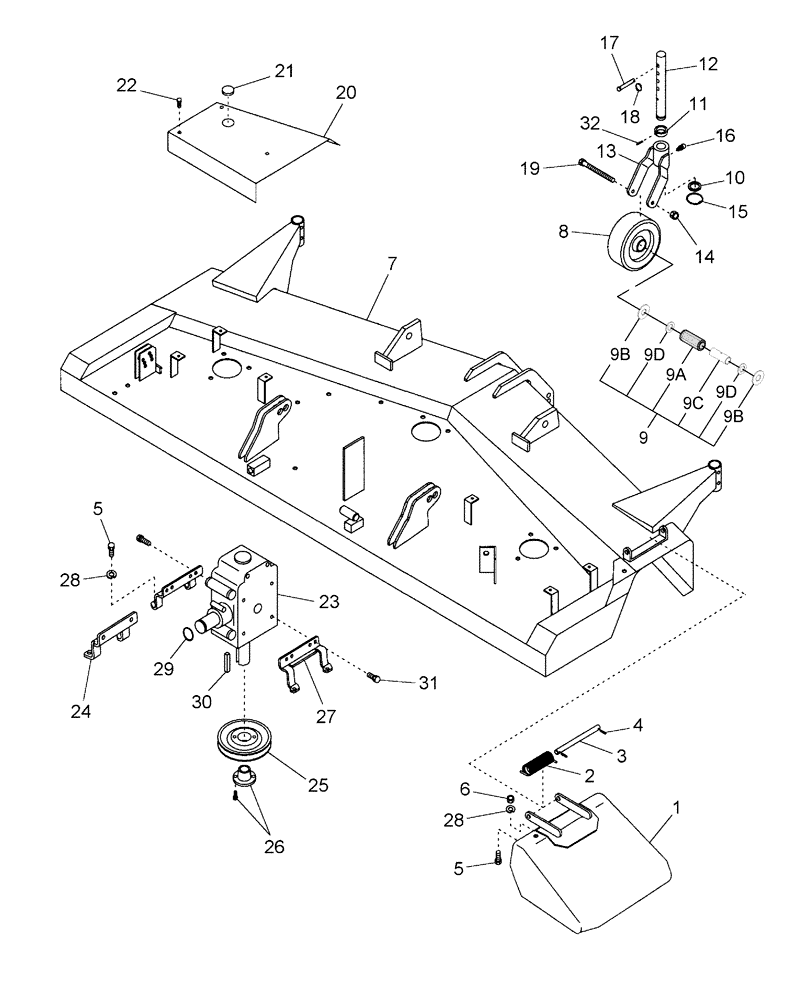

Схема запчастей Case IH 716417046 - (001) - DECK COMPONENTS
3
23
16
2
11
31
26
5
8
9b
17
6
21
24
7
9
19
28
15
9d
14
22
10
30
12
9c
9d
18
4
9b
29
1
13
9a
28
32
5
20
25
27

Артикул

Название

Примечание

Количество

1

CSE163585

SHIELD

Deflector

1шт.

2

AUB160052

SPRING

Torsion

1шт.

3

AUB160058

PIN

Deflector Hinge

1шт.

4

AUB967155

ROLL PIN

5/32 x 1

2шт.

5

AUB960046

BOLT

3/8-16 x 1

6шт.

6

AUB960502

NUT

Lock, 3/8-16

1шт.

7

CSE163579

SHELL

Deck, 54"

1шт.

Includes Necessary Decals, See Fig. 24

1шт.

7

CSE163580

SHELL

Deck, 60"

1шт.

Includes Necessary Decals, See Fig. 24

1шт.

8

AUB121712

WHEEL BEARING KIT

& Tire Assy Includes: Ref. 6

2шт.

9

AUB121865

BEARING ASSY

Bearing Includes: Ref. 9A-9D

1шт.

9a

NSS

NOT SOLD SEPARAT

Bearing

1шт.

9b

NSS

NOT SOLD SEPARAT

Thrust Washer

2шт.

9c

NSS

NOT SOLD SEPARAT

Spanner

1шт.

9d

NSS

NOT SOLD SEPARAT

Seal-Retainer

2шт.

10

AUB314167

RING

Washer, Special 1.0 ID x 1-1/2 OD

2шт.

11

AUB161860

SPACER

Bushing, Gauge Wheel Spindle

2шт.

12

AUB162767

SHAFT

Gauge Wheel Spindle

2шт.

13

CSE161864

BRACKET

Yoke, Front Gauge Wheel

2шт.

14

AUB964000

NUT

Lock, 1/2-13

2шт.

15

AUB967010

SNAP RING

1.0 External

2шт.

16

AUB959995

LUBE NIPPLE

Fitting, Grease 1/4-28 Straight

2шт.

17

AUB967154

PIN

Clevis, 3/8 x 2-1/8

2шт.

18

AUB967057

RING

Wire

2шт.

19

AUB960123

BOLT

1/2-13 x 3-3/4

2шт.

20

CSE164279

SHIELD

Belt, LH, 54"

1шт.

20

CSE163583

SHIELD

Belt, LH, 60"

1шт.

20

CSE164278

SHIELD

Belt, RH, 54"

1шт.

20

CSE164276

SHIELD

Belt, RH, 60"

1шт.

21

AUB160118

PLUG

2шт.

20

CSE164276

SHIELD

Belt, RH, 60"

1шт.

22

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

23

CSE162168

GEARBOX

54"

1шт.

23

CSE162131

GEARBOX ASSY

60"

1шт.

23

84279411R

REMAN-GEARBOX

Reman for new P/N CSE162131

1шт.

23

84279411C

CORE-GEARBOX

Return Number

1шт.

24

CSE164228

BRACKET

Gearbox Mount, LH

1шт.

25

AUB160114

PULLEY

5.1 OD, 54"

1шт.

25

AUB147454

PULLEY

6.0 OD, 60"

1шт.

26

AUB140430

HUB

Collet, W/Fasteners

1шт.

27

CSE164202

BRACKET

Gearbox Mount, RH

1шт.

28

AUB960602

WASHER

3/8

3шт.

29

AUB141180

SNAP RING

1.0 External

1шт.

30

AUB966045

KEY

Square, 1/4 x 1

1шт.

31

AUB960045

BOLT

3/8-16 x 3/4

4шт.

32

87757

LOCK PIN,3/16" x 1 1/2", Slotted

2шт.

Выбрано товаров: 47
