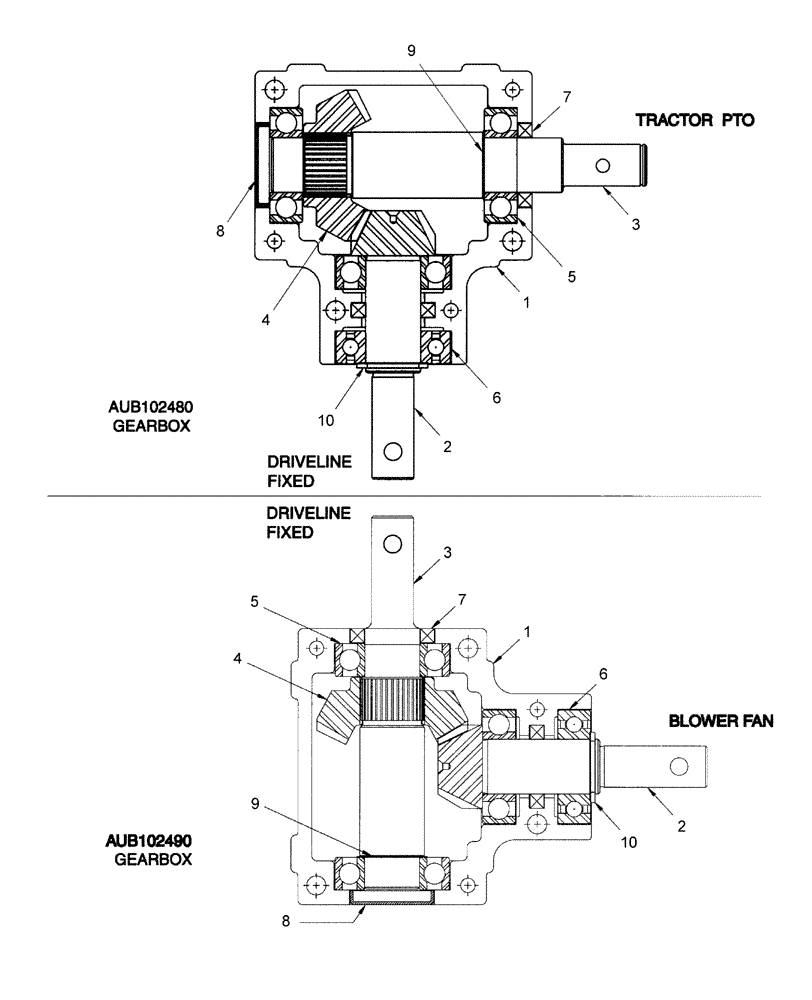

Запчасти Case IH 715672026 (005) - GEARBOX COMPONENTS

1

AUB102510

HOUSING

HOUSING, HALF

2шт.

2

AUB102517

PINION SHAFT

SHAFT, PINION

1шт.

3

AUB102513

SHAFT

SHAFT, THRU

1шт.

4

AUB102521

GEAR

GEAR

1шт.

5

AUB102511

BEARING

BEARING

3шт.

6

AUB102518

BEARING

BEARING, SEALED

1шт.

7

AUB102512

SEAL

SEAL

2шт.

8

AUB102520

PLUG

PLUG, EXPANSION

1шт.

9

AUB102515

SHIM

SHIM .005

1шт.

9

AUB102516

SHIM

1шт.

10

AUB967010

SNAP RING

1шт.

11

AUB141200

PLUG

Pipe

2шт.

12

PL

PROCURE LOCALLY

CAP SCREW, ALLEN

6шт.

13

AUB960601

LOCK WASHER

5/16

6шт.

14

PL

PROCURE LOCALLY

Gear Lube

1шт.

1

AUB102510

HOUSING

HOUSING, HALF

2шт.

2

AUB102517

PINION SHAFT

SHAFT, PINION

1шт.

3

AUB102514

SHAFT

SHAFT, THRU

1шт.

4

AUB102521

GEAR

GEAR

1шт.

5

AUB102511

BEARING

BEARING

3шт.

6

AUB102518

BEARING

BEARING, SEALED

1шт.

7

AUB102512

SEAL

SEAL

2шт.

8

AUB102520

PLUG

PLUG, EXPANSION

1шт.

9

AUB102515

SHIM

SHIM .005

1шт.

9

AUB102516

SHIM

1шт.

10

AUB967010

SNAP RING

1шт.

11

AUB141200

PLUG

Pipe

2шт.

12

AUB968011

BOLT

CAP SCREW, ALLEN

6шт.

13

AUB960601

LOCK WASHER

5/16

6шт.

14

PL

PROCURE LOCALLY

Gear Lube

1шт.
