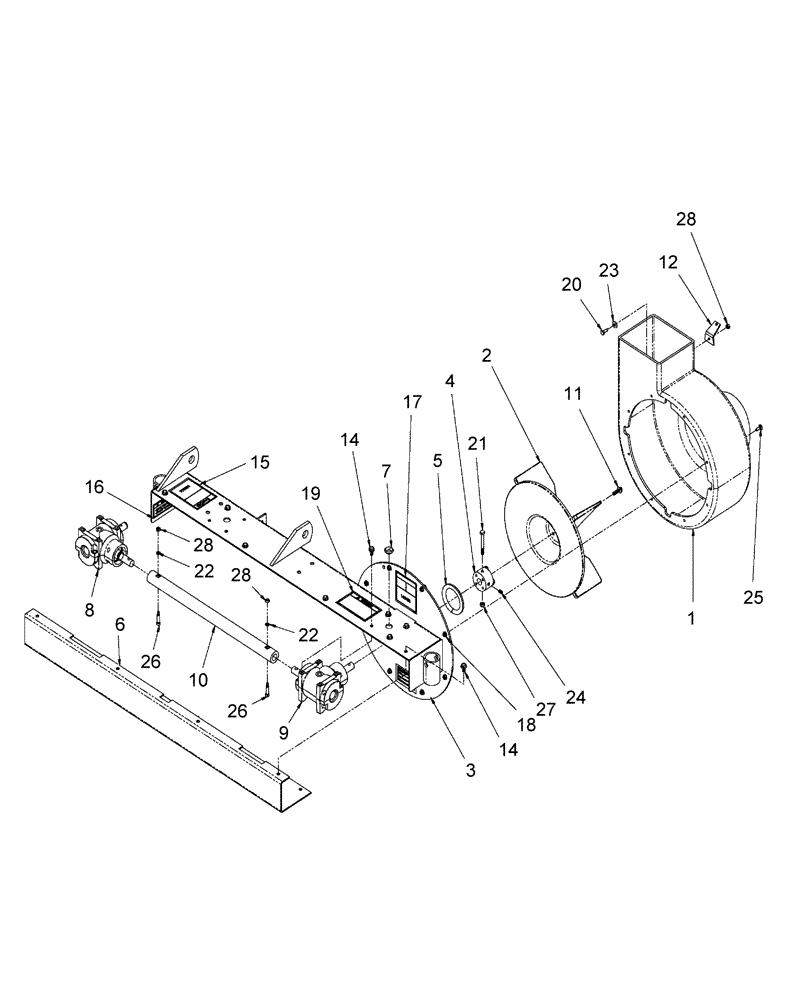

Запчасти Case IH 715672026 (001) - BLOWER DRIVE ASSEMBLY

1

AUB102302

HOUSING

Blower

1шт.

2

AUB102303

FAN

1шт.

3

AUB102440

SUPPORT ASSY.

1шт.

4

AUB102441

FAN

Mount

1шт.

5

AUB102443

RUBBER

1шт.

6

AUB102455

CHANNEL

Bottom

1шт.

7

AUB102467

PLASTIC PLUG

1шт.

8

AUB102480

GEARBOX

1.93 Type B-C PTO

1шт.

9

AUB102490

GEARBOX

1.93 Type F-G PTO

1шт.

10

AUB102549

DRIVE

Improved Box

1шт.

11

AUB967070

BOLT

5/16-18 x 1.00

4шт.

12

AUB104730

BRACKET

Spring Attach

1шт.

13

PL

PROCURE LOCALLY

Adhesive, Thread Lock

1шт.

14

AUB147841

BOLT (MACHINE)

5/16-18 x .625

13шт.

15

AUB150365

DECAL

Danger, Driveline

1шт.

16

AUB160169

DECAL

Warning Shield

1шт.

17

AUB160451

DECAL

Warning Blower

1шт.

18

AUB964040

LOCK NUT

1/4-20

8шт.

19

AUB948250

DECAL

Warning, Instructions

1шт.

20

AUB960001

SCREW

1/4-20 x .750 Hex

1шт.

21

AUB960030

BOLT

5/16-18 x 2.75 Hex

1шт.

22

AUB960600

LOCK WASHER

2шт.

23

AUB960700

LOCK WASHER

1шт.

24

AUB962518

SCREW

5/16-18 x .500

1шт.

25

AUB963095

BOLT

1/4-20 x .750

8шт.

26

AUB963100

SCREW

5/16 x 1

2шт.

27

AUB964021

NUT

Lock, 5/16-18

1шт.

28

AUB964031

LOCK NUT

1/4-20

3шт.
