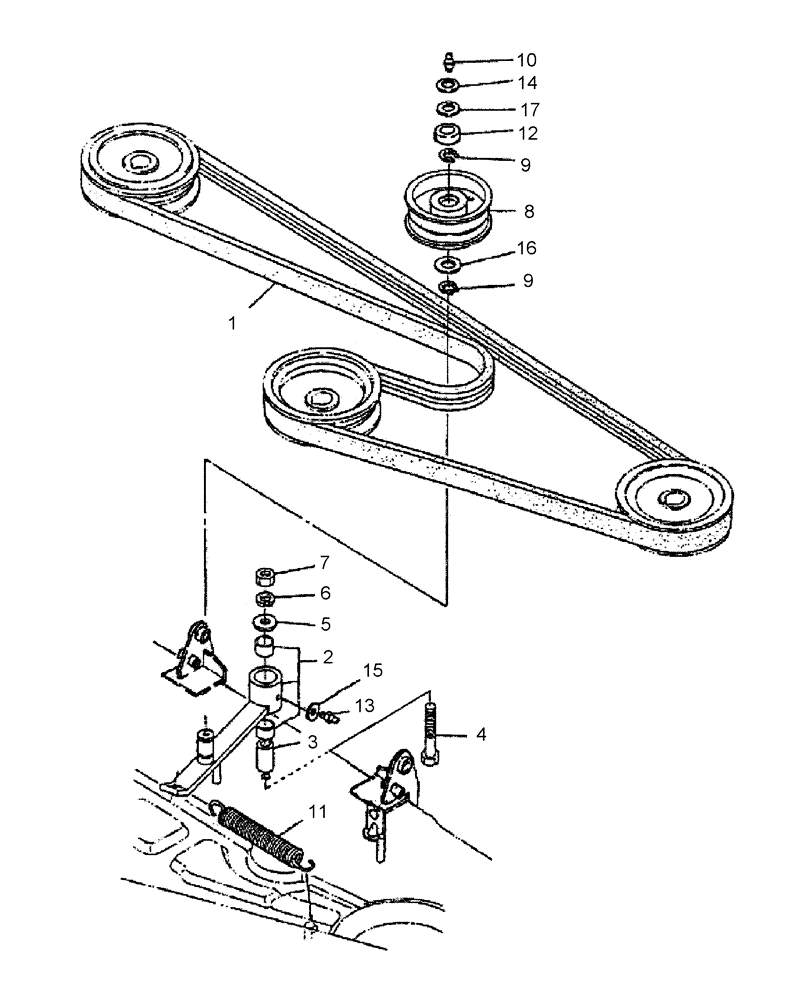

Запчасти Case IH 715667046 (005) - TENSION

1

SBA080109129

BELT

113 1/8" Long, Stamped LA-110

1шт.

MWX154S

1шт.

1

SBA080109127

V-BELT,119.17 " L, 2 Ribs

121" Long, Stamped LA-118

1шт.

MWX160S

1шт.

2

SBA632200440

ARM

Tension

1шт.

3

SBA699210040

COLLAR

1шт.

4

SBA010411270

BOLT

M12x70

1шт.

5

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

6

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

1шт.

7

SBA021000012

NUT

M12x1.25

1шт.

8

SBA632260280

PULLEY

1шт.

9

370016

SNAP RING,M17, Ext

2шт.

10

SBA060639003

LUBE NIPPLE

1шт.

11

SBA698220060

TENSION SPRING

1шт.

12

SBA638112260

COVER

1шт.

13

SBA060610000

LUBE NIPPLE,M6 x .075

1шт.

14

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

15

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

1шт.

16

SBA699280090

SEAL

1шт.

17

SBA699280010

SHIM

2шт.
