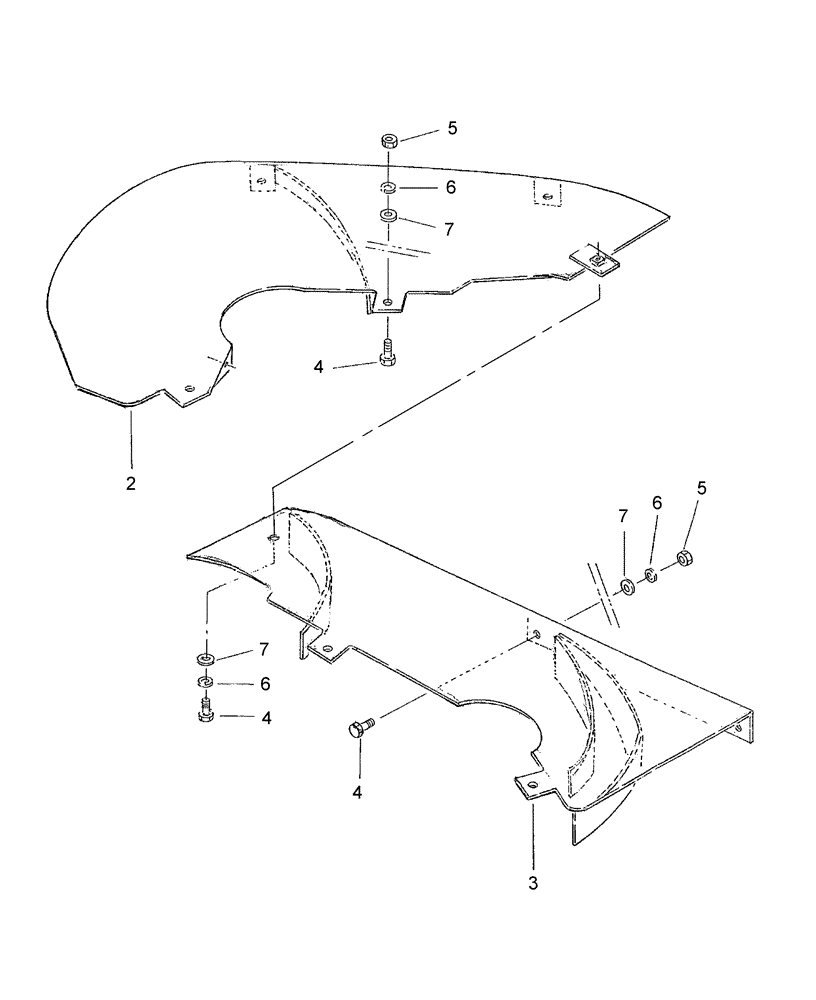

Запчасти Case IH 715667046 (012) - MULCHING KIT - SBA599967 - 54" & SBA599968 - 60"

1

SBA599967

KIT

Mulching, 54"

1шт.

1

SBA599968

KIT

Mulching, 60"

1шт.

2

SBA640120450

PLATE

Baffle, 54"

1шт.

2

SBA640120470

PLATE

Baffle, 60"

1шт.

3

SBA640120460

PLATE

Baffle, 54"

1шт.

3

SBA640120480

PLATE

Baffle, 60"

1шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

M8 x 20

10шт.

5

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

M8

10шт.

6

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

Spring, M8

10шт.

7

43362

NUT,M8 x 1.25, Cl 10

9шт.
