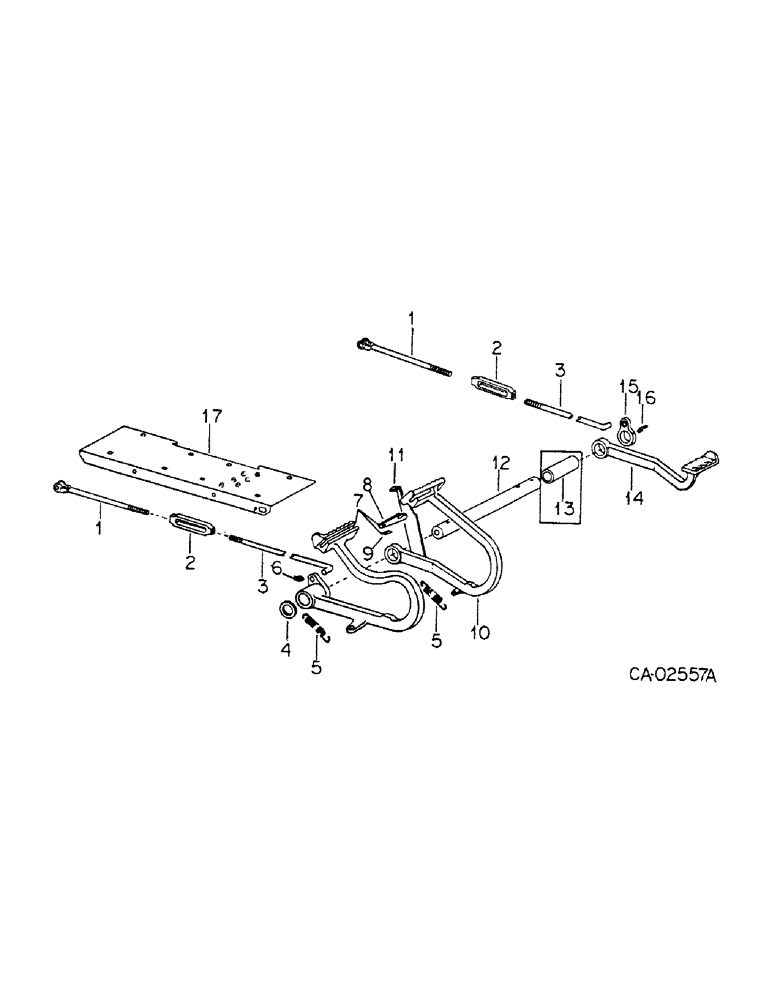

Запчасти Case IH 185 (04-02) - BRAKES, TWO PEDAL BRAKE (5.1) - BRAKES

545419R91

PARTS ACCESSORY, two pedal brake, all cub 185 lo-boy tractors and cub 154 lo-boy tractors w/serial no. 21492 and above, consists of ref. nos. 1 through 17 attaching hardware and instructions

1шт.

64758C91

PARTS ACCESSORY, two pedal brake, 184 tractor, consists of ref nos 1 through 12, 14 through 17, attaching hardware and instructions

1шт.

1

545427R1

ROD

ASSY, brake rear

2шт.

2

545426R1

TURNBUCKLE

brake rod

2шт.

3

545425R1

ROD

brake front

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

21872R1

WASHER

.406 x .625 x .054

2шт.

4

477589R1

WASHER

13/32 x 1-1/2 x 12

1шт.

22521R1

BOLT, 3/8 x 3/4 CAD type 5

1шт.

5

545433R1

SPRING

brake return

2шт.

6

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub

1шт.

7

545424R11

PEDAL ASSY, brake RH

1шт.

8

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

14256R1

RIVET, 1/4 x 1-1/16 rd-hd

1шт.

9

51293D

SPRING

2шт.

10

545420R12

PEDAL ASSY, brake LH

1шт.

11

126223C1

STOP

pedal ratchet, replaces 545421R1

1шт.

378341R1

SPRING WASHER

spring

1шт.

104253

RIVET, 1/4 x 1 f-hd solid

1шт.

12

545422R1

SHAFT, brake pedal

1шт.

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

1шт.

13

545432R1

BUSHING

clutch pedal, part of 545419R91

1шт.

14

545431R1

PEDAL, clutch

1шт.

27767R1

SCREW, 3/8 x 7/8 pln co/pt hdl/hs set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2 used w/545419R93, 1 used w/64758C91 Jam, 3/8"-16, G5

1шт.

15

545423R1

LEVER, brake LH

1шт.

16

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

17

545429R91

PLATFORM ASSY, RH

1шт.
