Запчасти Case IH 185 (04-01) - BRAKES (5.1) - BRAKES

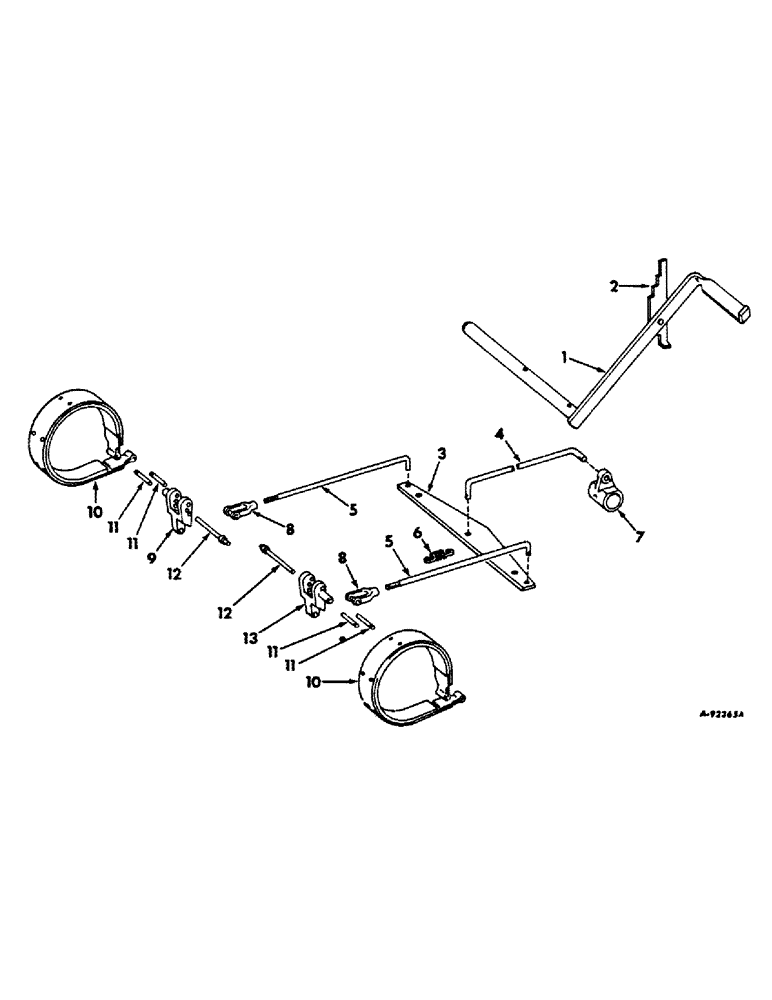

Схема запчастей Case IH 185 - (04-01) - BRAKES (5.1) - BRAKES
12
9
1
11
11
5
12
11
2
10
11
7
8
5
4
10
13
3
6
8

Артикул

Название

Примечание

Количество

1

404554R11

PEDAL ASSY, brake, 154 & 185 lo-boy tractors

1шт.

1

132132C91

PEDAL ASSY, brake, 184 tractor

1шт.

2

404580R1

STOP

ratchet

1шт.

104251

PIN

RIVET, 14/ x 3/4 pln f/hd sol

1шт.

378341R1

SPRING WASHER

1шт.

454417R1

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

1шт.

3

404552R1

BAR

equalizer

1шт.

4

404553R1

ROD, equalizer, cub 154 lo-boy tractor w/serial no. 21491 and below

1шт.

4

543941R1

ROD

equalizer, cub 154 lo-boy tractor w/serial no. 21492 and above and all cub 185 lo-boy tractors

1шт.

4

117250C1

ROD, equalizer, 184 tractor

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

5

404551R1

ROD

equalizer bar end

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

6

369470R1

VALVE SPRING

SPRING, return, cub 154 & 185 lo-boy tractors, 184 tractors w/creeper drive

2шт.

6

117354C1

SPRING

return, 184 tractors without creeper drive

2шт.

7

404579R3

LEVER

brake

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

2шт.

8

104037

CLEVIS

5/16-24 x 2-1/4 lt adj rod end brake rod

2шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

Rod end 5/16" x .940", HDN

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

9

358758R2

JOINT

TOGGLE, LH actuating

1шт.

10

358753R21

BRAKE

BAND, w/lining & rivets assy

2шт.

59469D

RIVET

lining

20шт.

11

358755R1

AXLE PIN

PIN, anchor

4шт.

12

359865R1

AXLE PIN

PIN, pivot

2шт.

13

358759R2

KNUCKLE JOINT

TOGGLE, RH actuating

1шт.

Выбрано товаров: 28
