Запчасти Case IH 185 (10-06) - HYDRAULICS, HYDRAULIC LIFT, CUB 154 LO-BOY TRACTORS WITH S/N 22332 * ABOVE, & ALL CUB 185 LO-BOYS (07) - HYDRAULICS

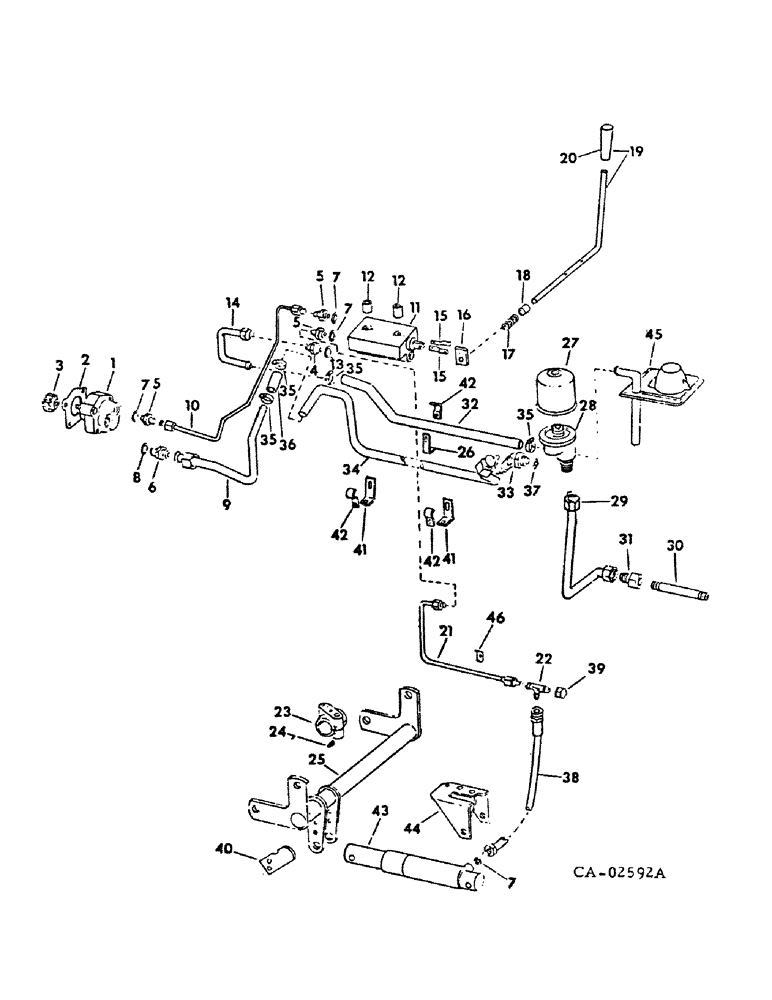

Схема запчастей Case IH 185 - (10-06) - HYDRAULICS, HYDRAULIC LIFT, CUB 154 LO-BOY TRACTORS WITH S/N 22332 * ABOVE, & ALL CUB 185 LO-BOYS (07) - HYDRAULICS
2
21
27
13
32
33
9
41
18
20
35
5
36
5
12
7
40
17
12
35
7
23
42
25
37
41
14
5
11
8
35
31
45
28
16
34
26
22
7
15
35
42
38
43
44
15
30
39
4
42
10
1
19
29
7
3
46
24
6

Артикул

Название

Примечание

Количество

1

547135R91

PUMP

ASSY, hydraulic, Warner motive, optional with 544017R91, for components see list of parts under details of hydraulic pump

1шт.

1

544017R91

PUMP

ASSY, hydraulic, Cessna, optional with 547135R91, for components see list of parts under details of hydraulic pump

1шт.

23683R1

SCREW,Hex Soc Hd, 5/16" - 18 x 2 1/2"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

351677R1

GASKET

pump

1шт.

3

352038R1

GEAR

pump drive, 10T

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

4

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube short swivel

1шт.

5

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

3шт.

6

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel reducer

1шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

39

544018R1

TUBE ASSY, suction short

1шт.

10

126472C1

HYD TUBE

TUBE ASSY, pressure long, replaces 546314R1

1шт.

11

546545R91

VALVE

ASSY, control, for components see list of parts under details of control valve

1шт.

13-444

CAPSCREW,Hex, 1/4" - 20 x 2 3/4", Gr 5

BOLT, 1/4 x 2-3/4 pln type 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

546546R1

SPACER, valve

2шт.

13

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

14

546552R1

TUBE ASSY, return

1шт.

15

546551R1

BAR

hydraulic valve operating

2шт.

103493

CLEVIS PIN,3/16" x .580"

PIN, 3/16 x 19/32 rod end

1шт.

23476R1

PIN, SPLIT (COTTER),5/64" x 1/2"

1шт.

16

546550R1

LEVER

valve handle

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1/8 x 1-1/4 spring HV

1шт.

53257V

AXLE PIN

PIN, 3/16 x 23/32 rod end

1шт.

23496R1

PIN, 5/64 x 1/2 cot.

1шт.

17

404880R1

SPRING

valve handle

1шт.

18

546549R1

SPACER

handle

1шт.

19

546547R91

HANDLE

ASSY, valve

1шт.

19938R1

PIN,1/8" x 7/8", Coiled

1шт.

131440H

WASHER

17/32 x 7/8 x 18 ga

1шт.

20

391056R1

GRIP

handle

1шт.

21

117460C1

TUBE ASSY, hydraulic cylinder, not used on tractors w/selector valve, replaces 546646R1 9.525 mm OD, 426.72, 177.29/16.8, 6.98 mm Length

1шт.

22

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

9/16-18 37 deg hyd flared tube three way, not used on tractors with selector valve

1шт.

23

404908R1

BEARING

ASSY, rockshaft

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

24

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

2шт.

25

404904R2

ROCKSHAFT ASSY

1шт.

Q838

HEADED PIN,5/8" x 3 1/4"

PIN, 5/8 x 3-1/4 std-hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

26

531434R2

SUPPORT, tube clamp

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 type 1

1шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4 P/T lock type

5шт.

27

404886R1

FILTER

ASSY, hyd oil-spin-on

1шт.

28

530875R2

BASE

hyd oil filter

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

530876R2

TUBE ASSY, hyd filter suction

1шт.

9403452

SLEEVE, 3/4 hyc 37 deb flared tube 37º, 3/4" Tube

1шт.

9403540

NUT, 1-1/16-12 hyd 37 deg flared tube

1шт.

30

219334

NIPPLE, LUBE,Nipple, 1/2" NPT x 5 1/2"

NIPPLE, 1/2 x 5-1/2 pipe

1шт.

31

530877R1

CONNECTOR, ELEC

CONNECTOR, hydraulic flared tube

1шт.

32

546553R1

HOSE, return

1шт.

33

9411107

ELBOW,45 Degree, 1 1/16"-12 x 1 1/16"-12, O-Ring

1-1/16-12 C-Z 37 deg hyd flared tube adj 45 deg

1шт.

34

106400C2

HYD TUBE

TUBE ASSY, suction long, replaces 544020R1

1шт.

35

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, return hose

4шт.

36

530879R1

HYDRAULIC HOSE,0.75" ID x 3.00", SAE 30R2 Type 3 Class 3

0.75" ID x 3.00", Suction Tube

1шт.

37

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

38

529348R1

HOSE

ASSY, hydraulic

1шт.

39

9403371

CAP,37 Degree, 9/16"-18

9/16-18 37 deg hyd flared tube, not used on tractors w/selector valve

1шт.

40

404911R1

BAR, rockshaft stop

1шт.

102635

NUT,3/8"-16, G5

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

404912R1

SCREW, stop adj

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

1шт.

41

404895R1

SUPPORT, tube clamp

2шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4 x 5/8 crg type 1

2шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4 P/T lock type 5

2шт.

42

547410R1

CLAMP, hydraulic tubes

3шт.

20244R1

LOCK NUT,1/4"-20

NUT, P/T lock type 5

3шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT, 1/4 x 5/8 crg type 1

3шт.

16559R1

WASHER,1/4"

.266 x .625 x .036

3шт.

43

404897R91

CYLINDER

ASSY, hyd 1-3/4 x 5, optional with 405794R92, for components see list of parts under details of hydraulic cylinder

1шт.

43

405794R92

CYLINDER

ASSY, hyd 1-3/4 x 5 single acting, optional with 404897R91, for components see list of parts under details of hydraulic cylinder

1шт.

44

404898R1

BRACKET ASSY, cyl mtg

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

45

530512R1

HOUSING

ASSY, gear shift lever

1шт.

364066R1

PIN

lever swivel stop

1шт.

444577

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG, 1/4-18 pipe

1шт.

46

384855R1

CLAMP

hyd tubes

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x .036 C-Z

1шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4-20 znp nylon insert

1шт.

Выбрано товаров: 89
